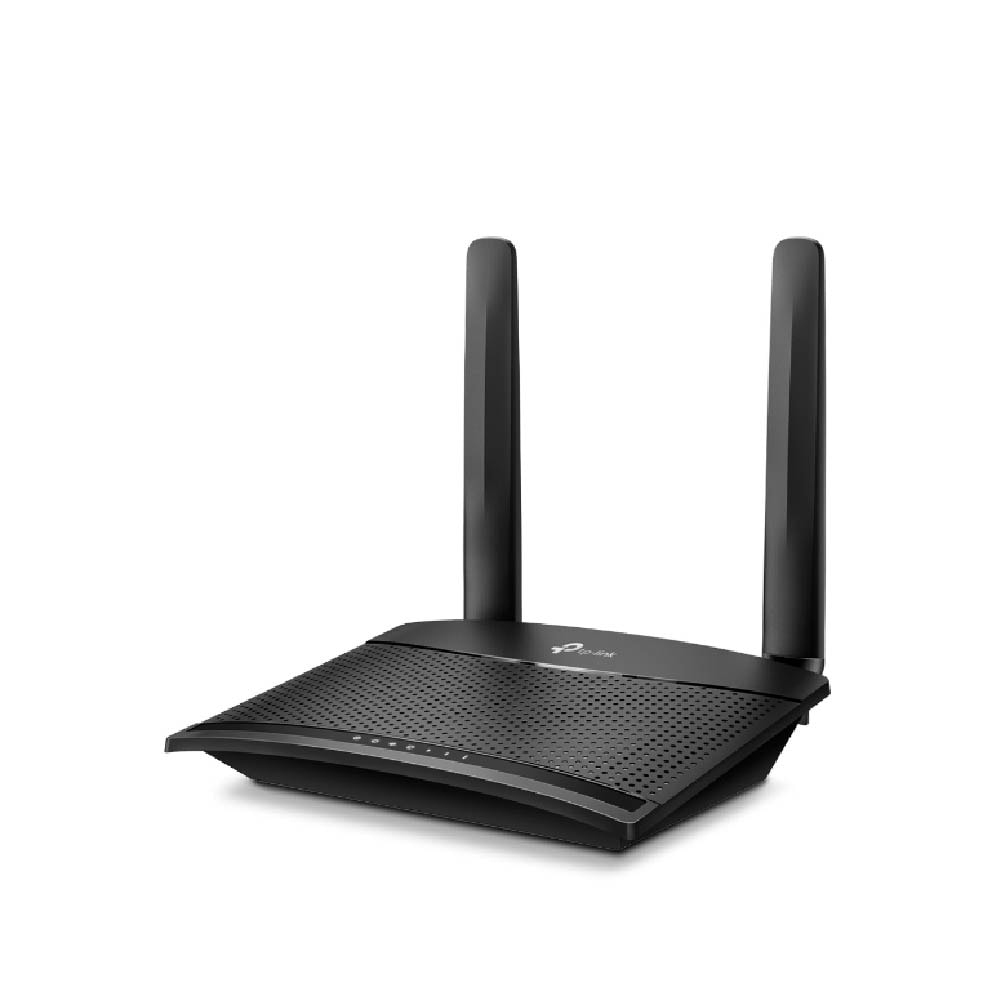

TP-Link TL-MR100 4G LTE SIM Wireless Router 300Mbps 2.4GHz

HARDWARE FEATURES

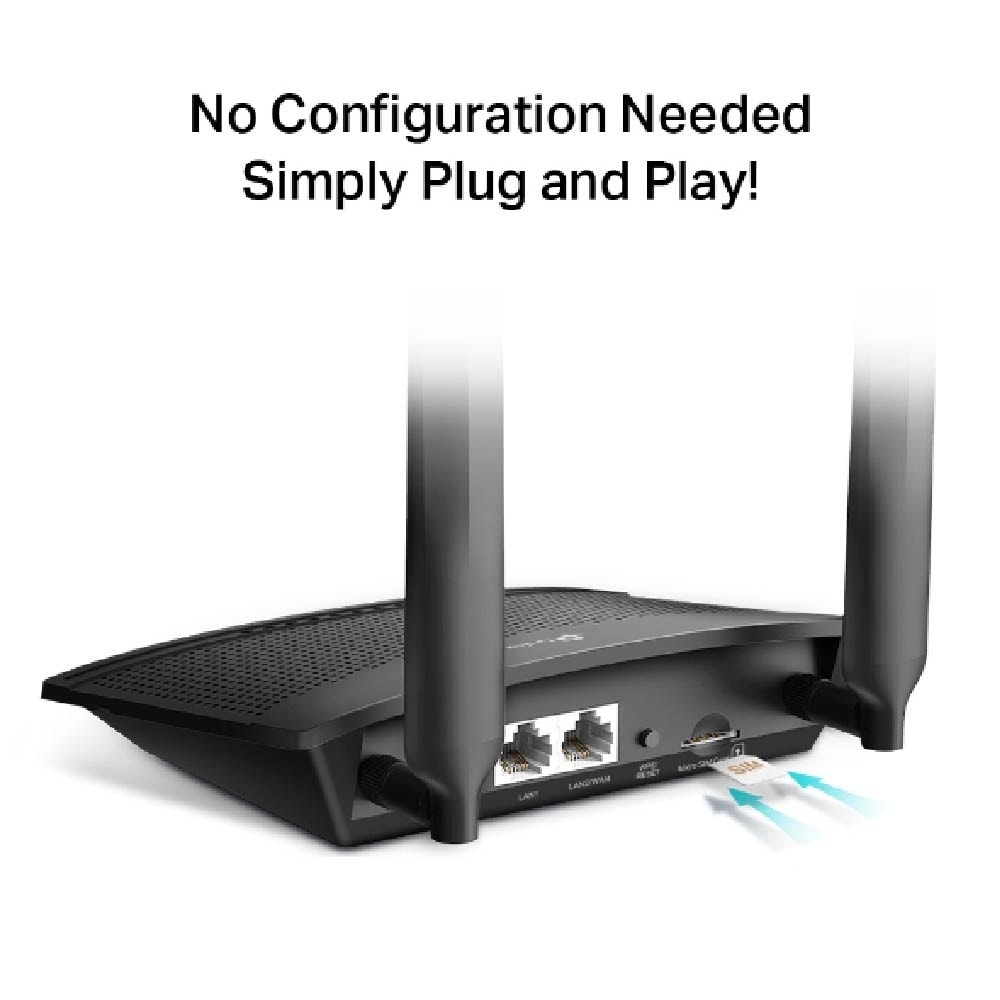

Interface
1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
1 Micro SIM Card Slot

Button
WPS/Reset Button

External Power Supply(EU)
9V/0.85A

Dimensions ( W x D x H )
6.06×4.49×1.42 in ( 154×114×36 mm)

Antenna
2 Detachable External 4G LTE Antennas

Antenna Type
V3/APAC: 2 Internal 4G LTE Antennas
V4/V2/V1: 2 Detachable 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards
IEEE 802.11b/g/n

Frequency
2.4 GHz

Signal Rate
300 Mbps

Reception Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm

Transmit Power
< 20 dBm (2.4 GHz)

Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

WAN Failover
Yes

Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type
4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Security
IPv4 SPI Firewall, IP and MAC Address Binding

Operating Modes
3G/4G Router, Wireless Router

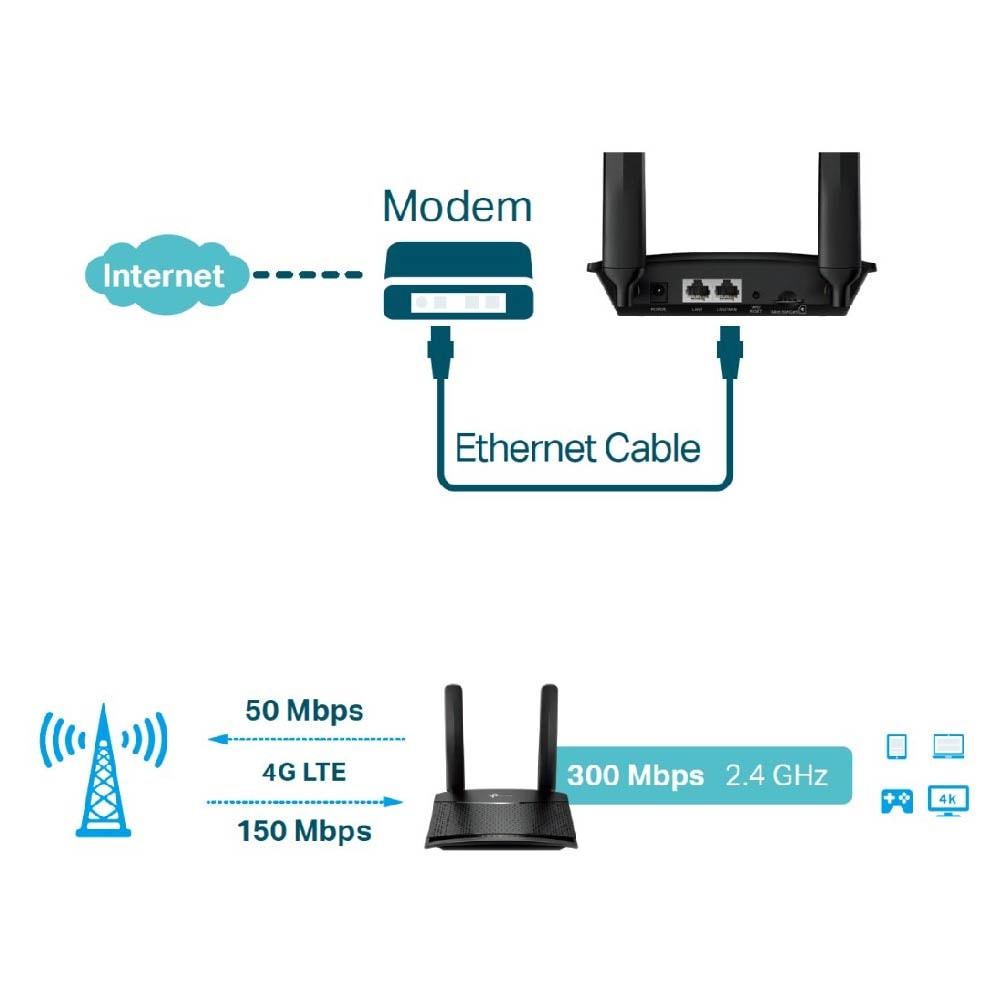

WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management
Local Management, Remote Management

DHCP
Server, DHCP Client List, Address Reservation

Port Forwarding
ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS
DynDns, NO-IP

Protocols
IPv4, IPv6

Guest Network
2.4 GHz Guest Network

Administration
Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS

Certification
CE, RoHS

Package Contents
300 Mbps Wireless N 4G LTE TL-MR100
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
