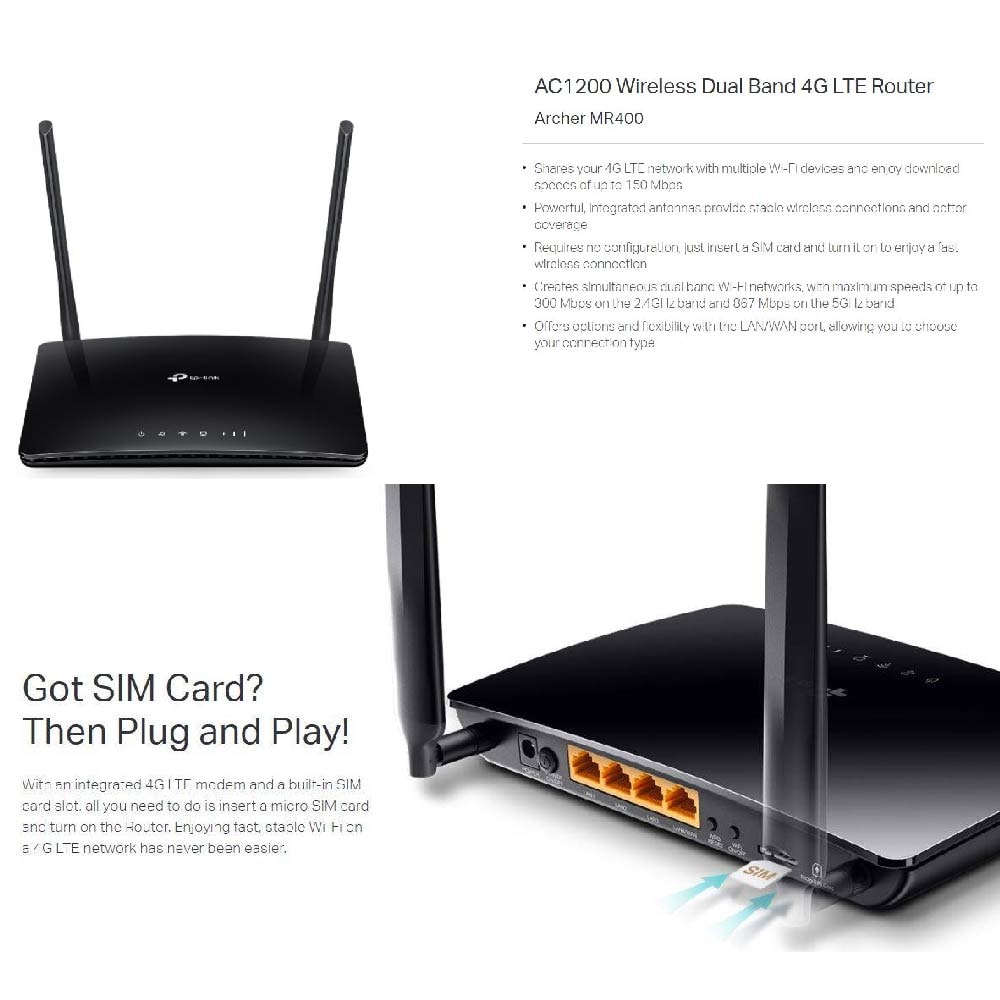

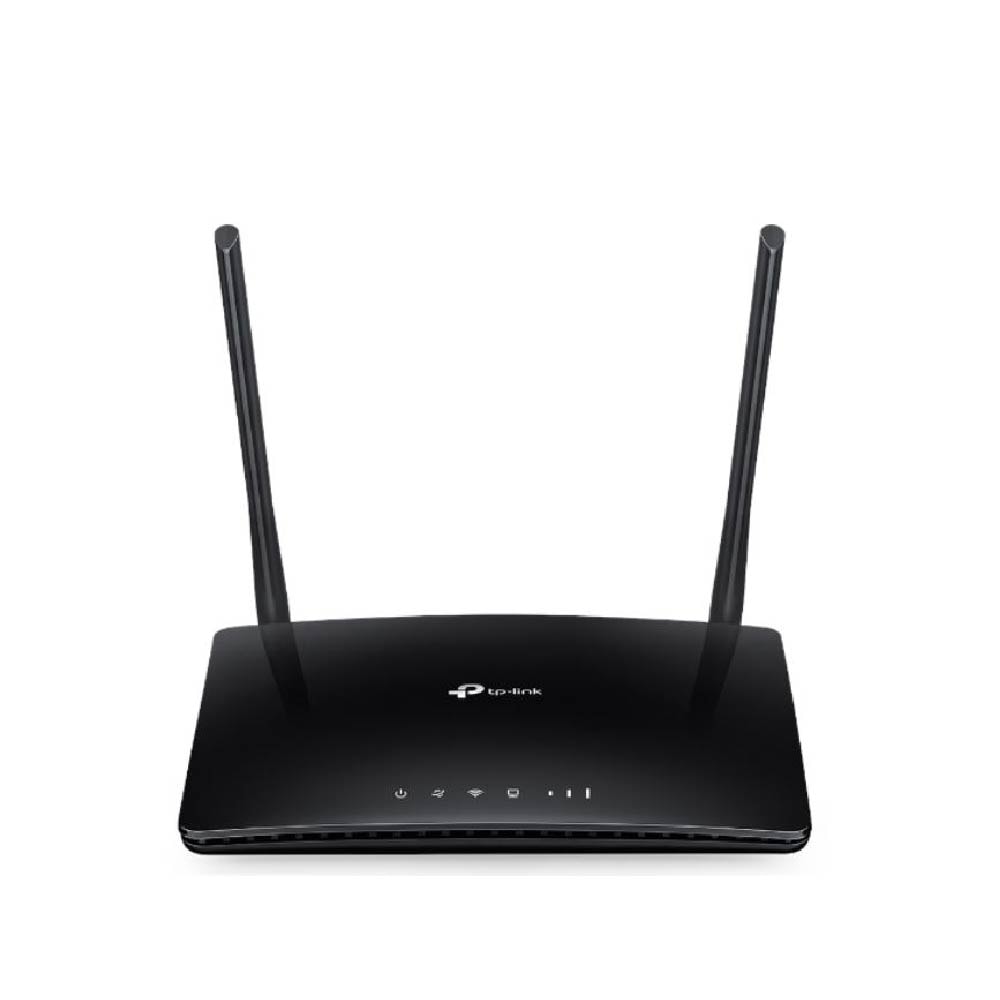

TP-Link Archer MR400 DualBand 4G LTE Router

HARDWARE FEATURES

Interface
3 10/100Mbps LAN Ports
1 10/100Mbps LAN/WAN Port
1 Micro SIM Card Slot

Button
WPS/Reset Button, WiFi On/Off Button, Power On/Off Button

External Power Supply
12V/1A

Dimensions ( W x D x H )
7.95 x 5.71 x 1.34 in. (202 x 145 x 34 mm)

Antenna
2 Internal 4G LTE Antennas
2 Fixed External WiFi Antennas

WIRELESS FEATURES

Wireless Standards
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz

Frequency
2.4GHz and 5GHz

Signal Rate
300Mbps at 2.4GHz
867Mbps at 5GHz

Reception Sensitivity
5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm
2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm

Transmit Power
CE: <20dBm(2.4GHz), <23dBm(5GHz)

Wireless Functions
Enable/Disable Wireless Radio
WMM
Wireless Statistics

WAN Failover
Yes

Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type (V2)
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)

Network Type
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)

SOFTWARE FEATURES

Quality of Service
Bandwidth Control

Operating Modes
3G/4G Router, Wireless Router

WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management
Access Control
Local Management
Remote Management
reboot schedule

DHCP
Server, Client, DHCP Client List, Address Reservation

Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS
DynDns, NO-IP

VPN
PPTP VPN, IPSec VPN , OpenVPN

Access Control
Parental Control, Local Management Control

Firewall Security
DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding

Protocols
Supports IPv4 and IPv6

Guest Network
2.4GHz guest network x 1, 5GHz guest network x 1

IPSec VPN
Supports up to 10 IPSec VPN tunnels

OTHERS

Certification
CE, RoHS

Package Contents
AC1200 Wireless Dual Band 4G LTE Router, Archer MR400
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10
MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0,
Safari 4.0 browsers or higher, or other Java-enabled browsers
Micro SIM Card

Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
