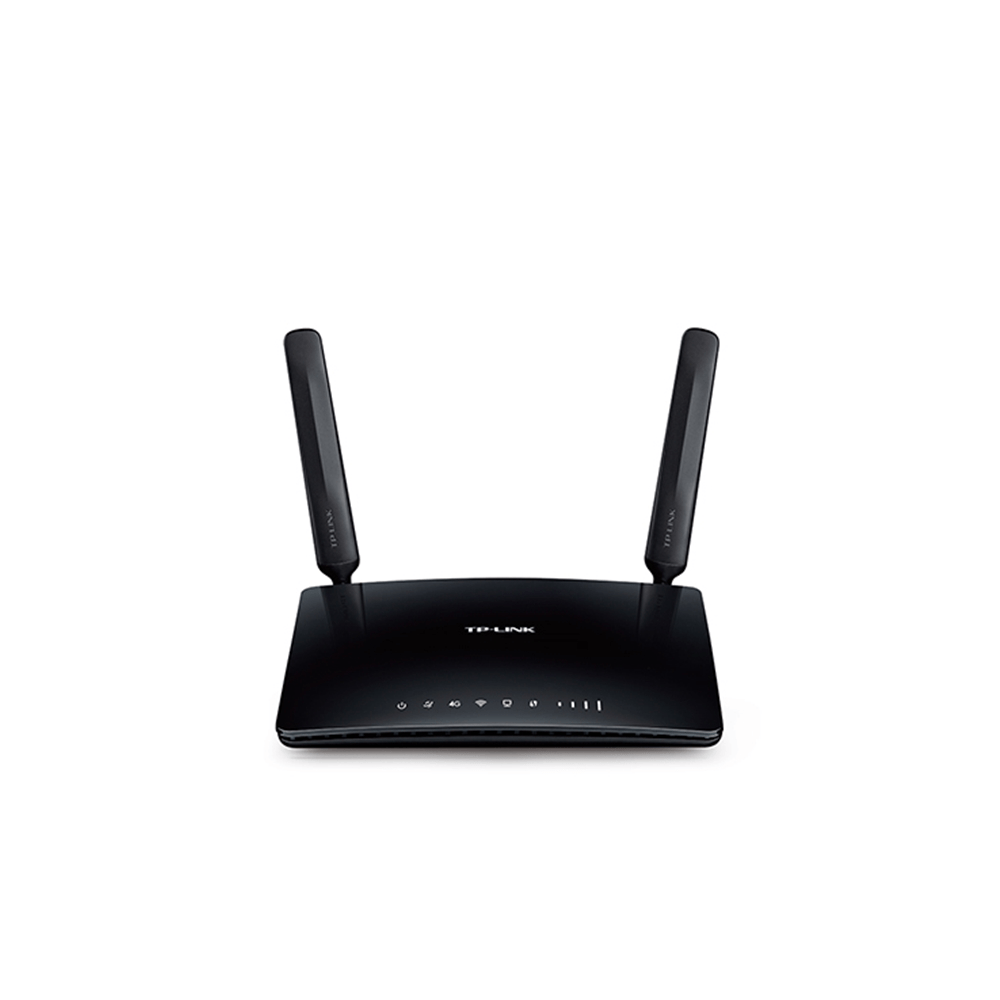

TP-Link Archer TL-MR6400 300Mbps Wireless N 4G LTE Router

_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_

HARDWARE FEATURES
Interface	3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port,_x000D_ 1 SIM Card Slot
Button	WPS/Reset Button, Wireless On/Off Button, Power On/Off Button
External Power Supply(EU)	9V/0.85A
External Power Supply(APAC)	12V/1A
Dimensions ( W x D x H )	7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)
Antenna Type	V3/APAC: 2 Internal 4G LTE Antennas_x000D_ V4/V2/V1: 2 Detachable 4G LTE Antennas

_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_

WIRELESS FEATURES
Wireless Standards	IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz
Signal Rate	300Mbps at 2.4GHz
Reception Sensitivity	11g 54M: -74dBm_x000D_ 11n HT20: -71dBm_x000D_ 11n HT40: -67dBm
Transmit Power	CE: <20dBm(2.4GHz)
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM,_x000D_ Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type (V2)	4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)_x000D_ TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)_x000D_ 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)_x000D_ 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)
Network Type (V3)	4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)_x000D_ TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)_x000D_ 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
Network Type(APAC V3)	4G: FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz)_x000D_ TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz)_x000D_ 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900MHz)
Network Type

_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_

SOFTWARE FEATURES
Quality of Service	Not Available
Operating Modes	3G/4G Router, Wireless Router
Management	Access Control, Local Management, Remote Management
WAN Connection Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
DHCP	Server, Client, DHCP Client List, Address Reservation
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
VPN	PPTP VPN, IPSec VPN , OpenVPN
Access Control	Parental Control, Local Management Control, Host List,_x000D_ Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall, IP Address Filter/Domain Filter,_x000D_ IP and MAC Address Binding
Protocols	Supports IPv4 and IPv6
Guest Network	2.4GHz guest network x 1

_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_

OTHERS
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N 4G LTE Router, TL-MR6400_x000D_ RJ45 Ethernet Cable_x000D_ Power Adapter_x000D_ Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10_x000D_ MAC OS, NetWare, UNIX or Linux_x000D_ _x000D_ Internet Explorer 11, Firefox 12.0, Chrome 20.0,_x000D_ Safari 4.0 browsers or higher, or other Java-enabled browsers_x000D_ Micro SIM Card
Environment	Operating Temperature: 0?~40? (32? ~104?)_x000D_ Storage Temperature: -40?~70? (-40? ~158?)_x000D_ Operating Humidity: 10%~90% non-condensing_x000D_ Storage Humidity: 5%~90% non-condensing
