Product Highlight
==========================================================================================
Basic Specifications
Form factor
3.5-inch
Interface
SATA 6.0 Gbit/s)
Advanced Format (AF)
Yes
RoHS compatible
Yes
Halogen FreeYes
Shock Sensor
Yes
Recording Technology
CMR (500 GB- 3 TB):
HDWD130EZSTA, HDWD130UZSVA,
HDWD120EZSTA, HDWD120UZSVA,
HDWD110EZSTA, HDWD110UZSVA
HDWD105UZSVA,
SMR (2 TB-6 TB):
HDWD260UZSVA, HDWD240UZSVA, HDWD220UZSVA
HDWD260EZSTA, HDWD240EZSTA
Performance
Rotational speed
5,400 rpm (2 TB - 6 TB SMR)
7,200 rpm (500 GB - 3 TB CMR)
Buffer size
128 MB (2 TB - 6 TB SMR),
64 MB (500 GB - 3 TB CMR)
Native Command Queuing (NCQ)
supported
Reliability
Unrecoverable error rate
1 per 10E14 bits read
Load / Unload Cycle
600.000 (2TB - 6 TB SMR),
300.000 (500 GB - 3 TB CMR)
Power Management
Supply voltage
5VDC (±5%) / 12VDC (±10%)
Consumption – Read/Write
4.46 W typ. (6 TB),
4.11 W typ. (4 TB),
4.14 W typ. (2 TB SMR),
5.80 W typ. (2 TB CMR),
6.40 W typ. (500 GB, 1 TB, 3 TB)
Consumption – Low Power Idle
2.68 W typ. (6 TB),
2.32 W typ. (4 TB),
5.20 W typ. (3 TB),
2.11 W typ. (2 TB SMR),
4.40 W typ. (2 TB CMR),
3.70 W typ. (500 GB, 1 TB)
Environmental
Temperature (operating / non-operating)
0 - 60° C / -40 - 65 °C (2 TB - 6 TB SMR),
0 - 65° C / -40 - 70 °C (500 GB - 3 TB CMR)
Vibration (operating)
0.50 G (5 - 350 Hz) (2 TB - 6 TB SMR),
0.67 G (5 - 500 Hz) (500 GB - 3 TB CMR)
Vibration (non-operating)
1.04 G (2 - 200 Hz) (500 GB - 3 TB CMR)
3.0 G (5 - 500Hz) (2 TB - 6 TB SMR)
Shock (operating)
70 G / 2 ms duration
Shock (non-operating)
300 G (2 ms half sine) (2 TB CMR, 3 TB, 6 TB)
350 G (2 ms half sine) (500 GB, 1 TB, 2TB SMR, 4 TB)
Acoustics (idle mode)
24 dB typ. (6 TB),
22 dB typ. (4 TB),
27 dB typ. (2 TB CMR, 3 TB),
21 dB typ. (2 TB SMR)
25 dB typ. (500 GB, 1 TB)
Physical
Dimensions
147 (L) x 101.85 (W) x 26.1 (H) mm
Weight (approx.)
680 g max. (6 TB),
650 g max. (4 TB),
700 g max. (3 TB, 2 TB CMR)
440 g max. (2 TB SMR)
450 g max. (500 GB, 1 TB)
Box Content
Box Content

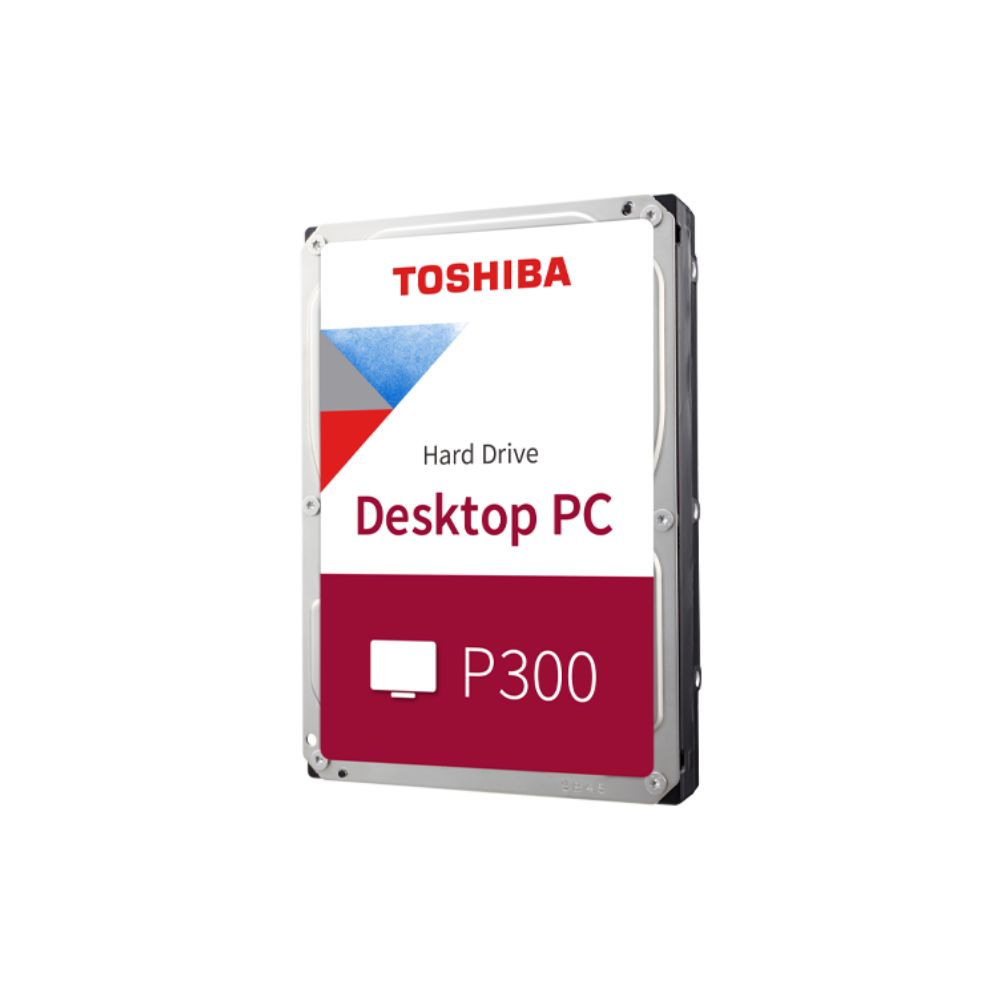

3.5-inch internal HDD - P300 Desktop PC Hard Drive
