Latest DDR5 Memory
-A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution
-The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
M.2 Shield FROZR
-Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Core Boost
-With premium layout and fully digital power design to support more cores and provide better performance.
Memory Boost
-Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Audio Boost
-Reward your ears with studio grade sound quality for the most immersive audio experience.
Wi-Fi 6E
-The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
-Featuring premium 2.5G LAN to deliver better network experience.
[Spec Overview]

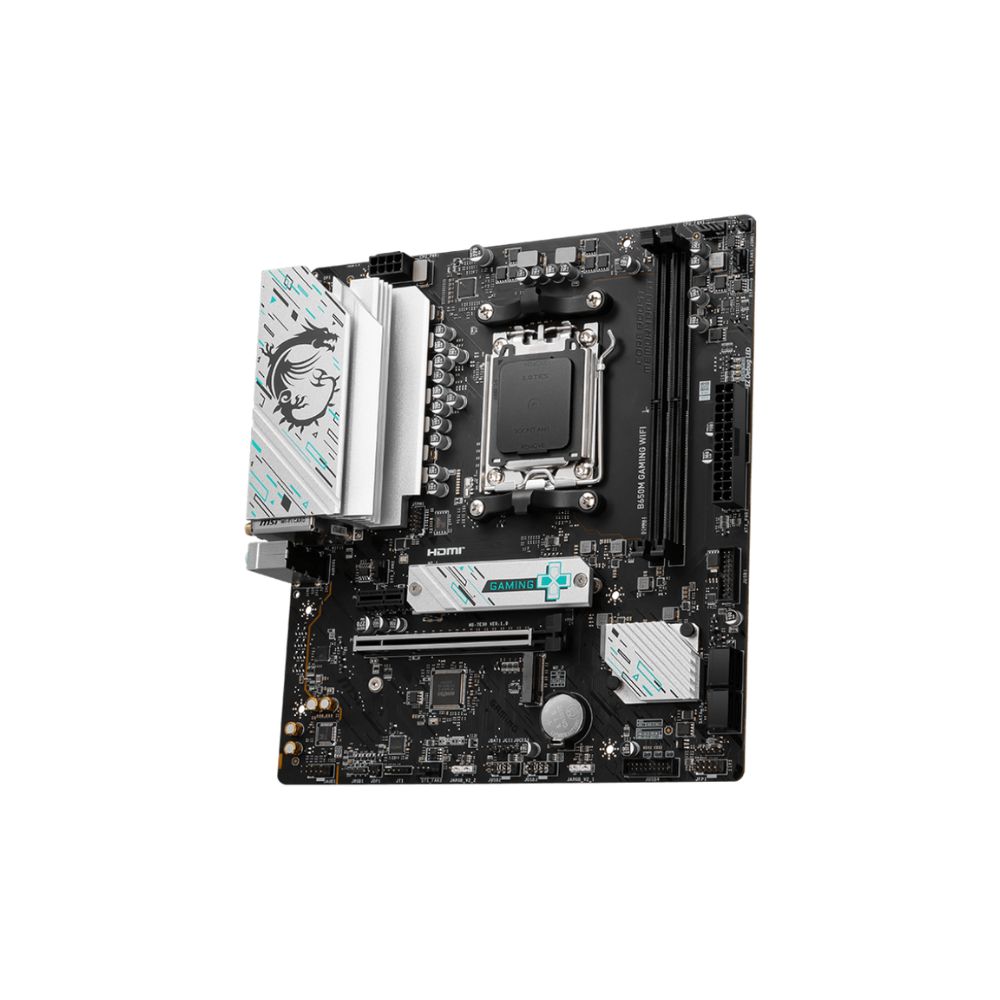

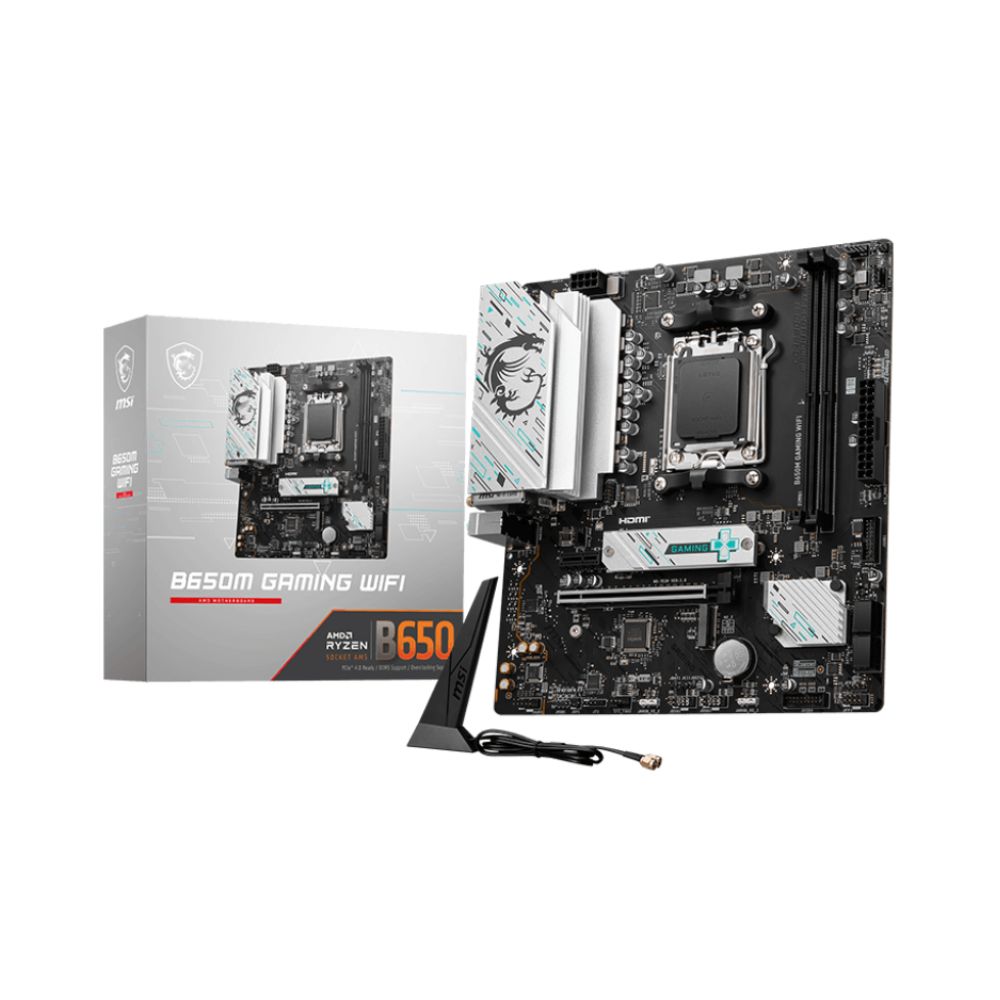

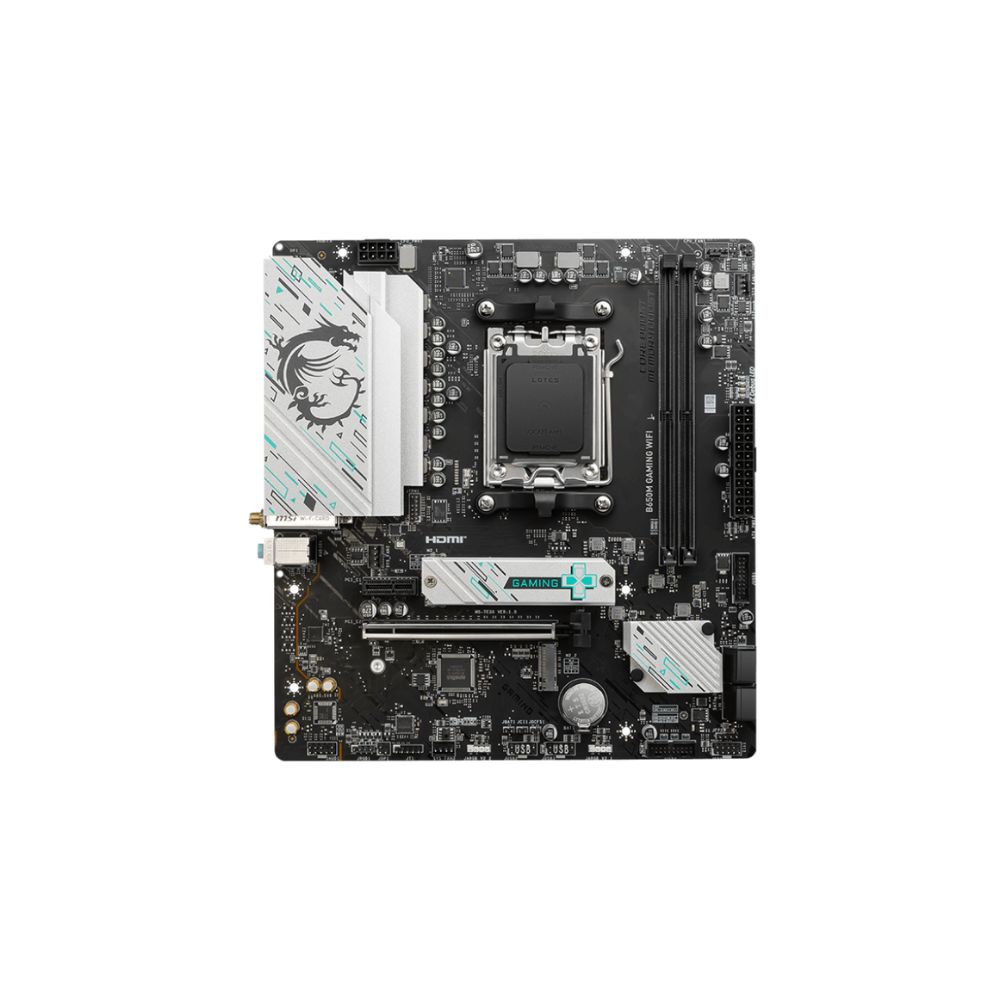

Model Name: B650M GAMING WIFI
CPU Support: Supports AMD Ryzen™ 7000 Series Desktop Processors
CPU Socket: Socket AM5
Chipset: AMD B650 Chipset
Expansion Slots: 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface: Support 4K@60Hz as specified in HDMI™ 2.1,
DisplayPort: 1.4 – Requires Processor Graphics
Memory Support: 2 DIMMs, Dual Channel DDR5-7800+(OC)
Storage: 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gb/s ports
USB ports: 8x USB 3.2 Gen 1 5Gbps (7 Type-A + 1 Type-C), 6x USB 2.0 (Type-A)
LAN: RTL8125BG 2.5Gbps LAN
WiFi / BT: AMD® Wi-Fi 6E, Bluetooth 5.3
Audio: 8-Channel (7.1) HD Audio with Audio Boost
