MSI

CHIPSETINTEL B760

CPU SUPPORTSupports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA 1700

MEMORY4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5600+ MHz


Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS2x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

2x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen1 Type C (Front)

2x USB 3.2 Gen2 Type A (Rear)

LANRealtek® RTL8125BG 2.5G LAN

WIRELESS / BLUETOOTHIntel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax


Supports Bluetooth® 5.3, FIPS, FISMA


* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIORealtek® ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL I/O1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen1 Type C ports

LED FEATURE4x EZ Debug LED

Category : PC & LaptopPC ComponentsMotherboard
Brand : MSI
Product Condition : New

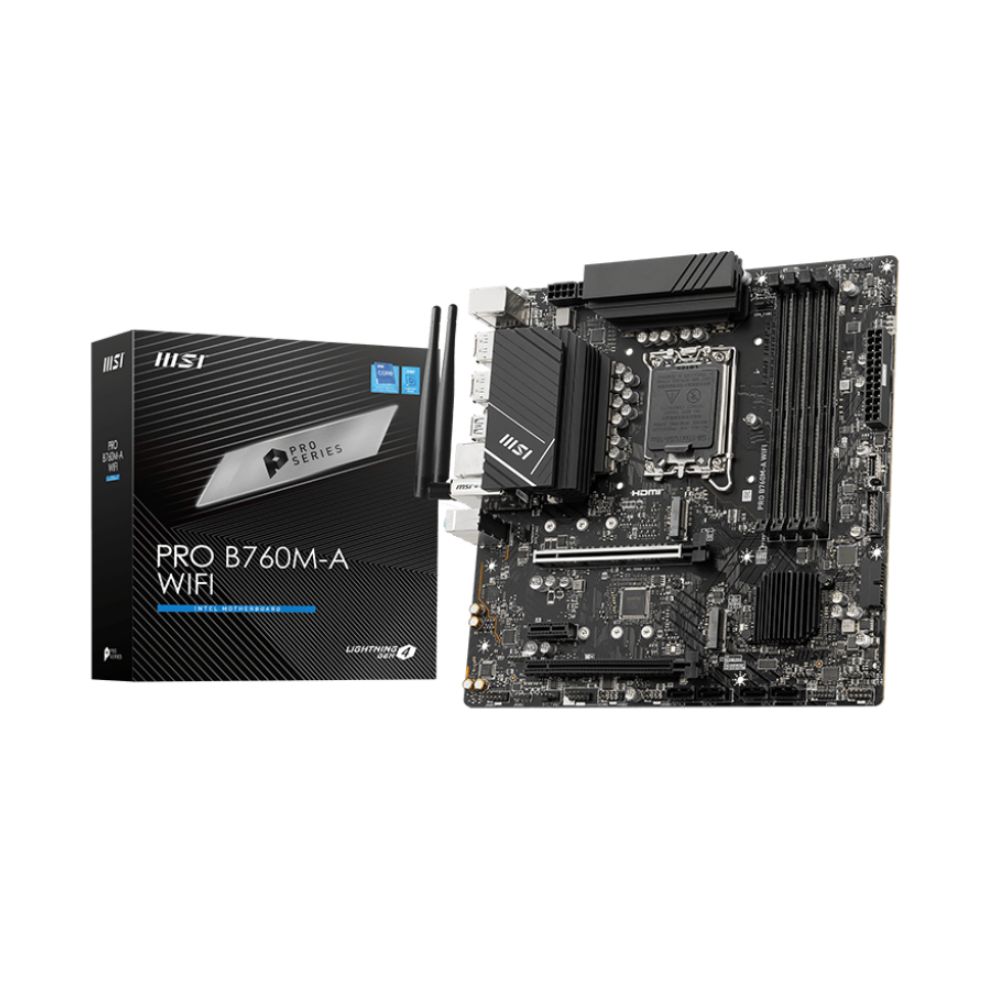

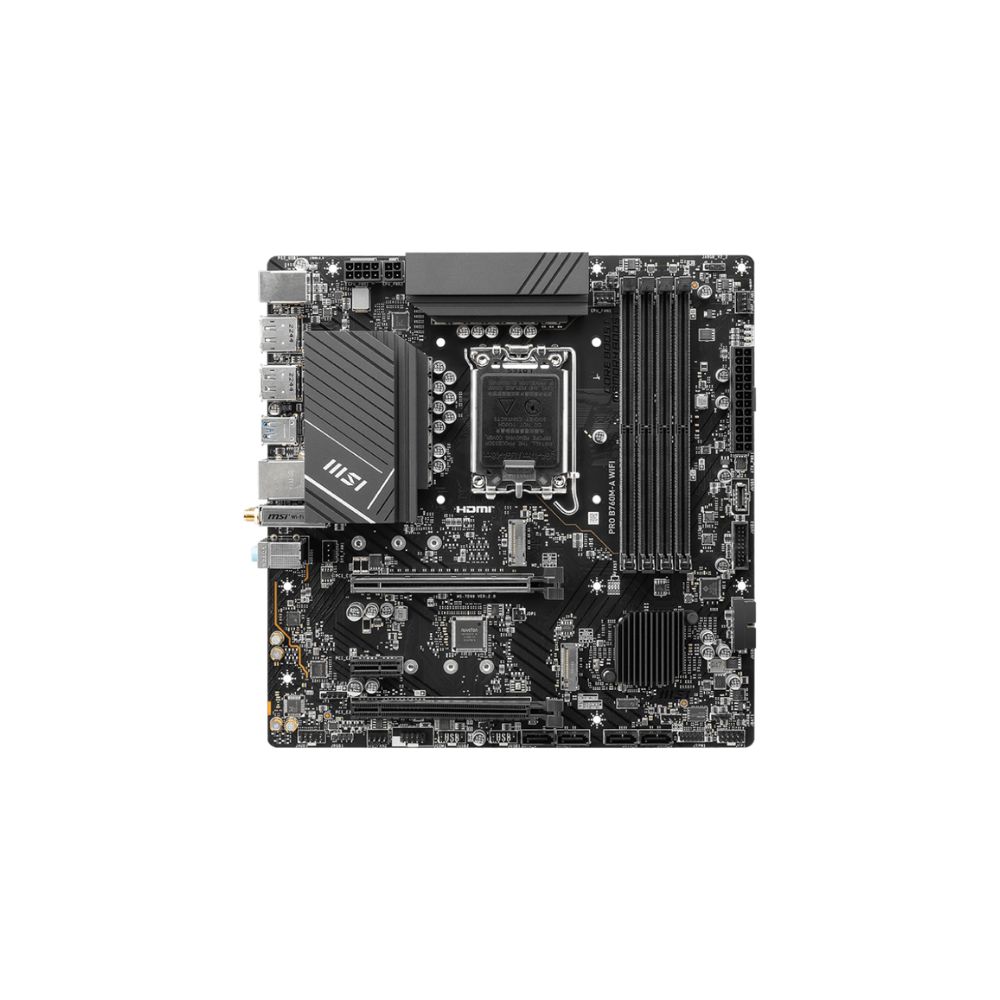

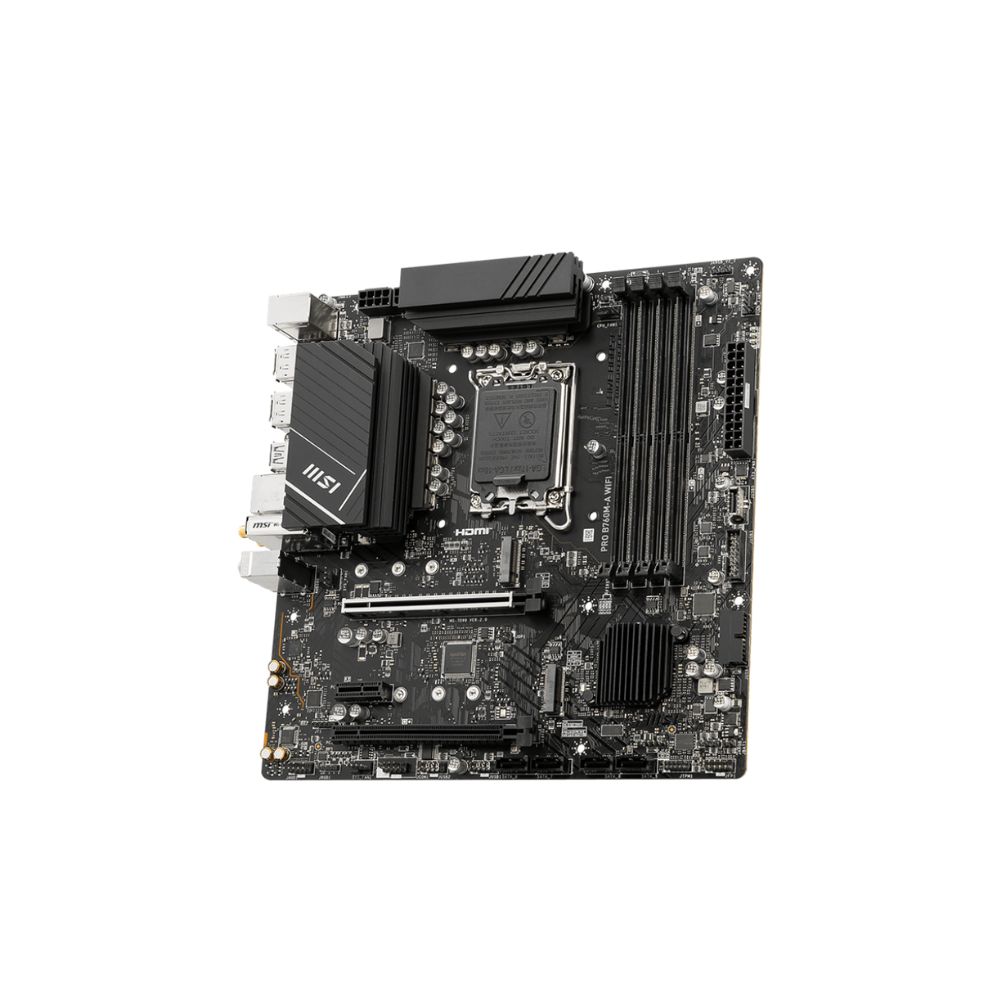

MSI LGA1700 Intel B760M PRO B760M-A WIFI mATX Motherboard

MYR 769.00

MYR 0.00

Or MYR 256.33x 3 with
Gift Wrapping
GADGET PWP ONLY Microsoft Office MAY24
Add to Wishlist
Remove Wishlist

CHIPSETINTEL B760

CPU SUPPORTSupports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA 1700

MEMORY4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5600+ MHz


Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS2x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

2x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen1 Type C (Front)

2x USB 3.2 Gen2 Type A (Rear)

LANRealtek® RTL8125BG 2.5G LAN

WIRELESS / BLUETOOTHIntel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax


Supports Bluetooth® 5.3, FIPS, FISMA


* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIORealtek® ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL I/O1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen1 Type C ports

LED FEATURE4x EZ Debug LED

Category : PC & LaptopPC ComponentsMotherboard
Brand : MSI
Product Condition : New
