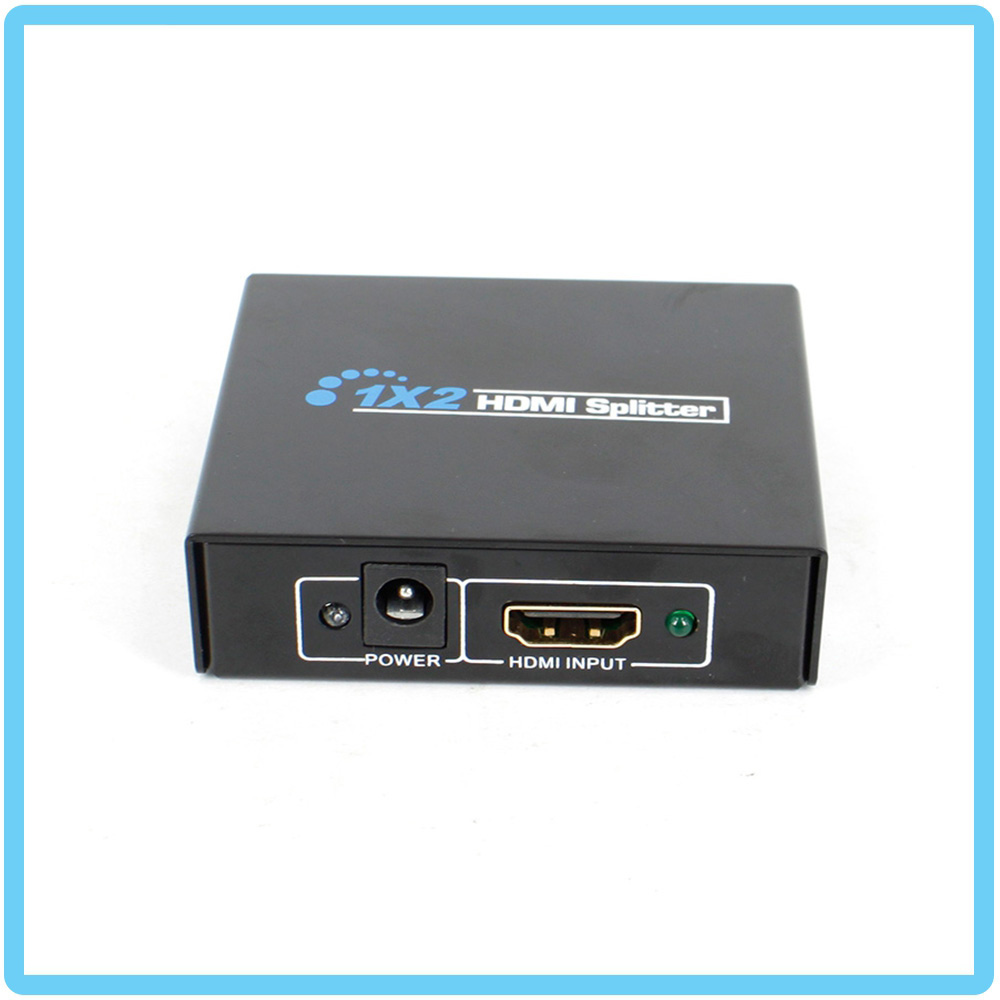

Vitar V1.3 SP13002M1 1X2 HDMI Splitter (1 Year Warranty)

The 1x2 HDMI Splitter uses a single HDMI source? splitting to multiple HDMI displays/screens. The Splitter allows one HDMI device to be split into two HDMI-compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Our devices offer solutions for noise, space, and security concerns, data center control, information distribution, conference room presentation, and school, and corporate training environments.

FEATURES ?

· One HDMI input signal split to two HDMI sink devices

· Support 3D

· Support 1080P resolution

· Support CEC

· Support deep color 30bit, 36bit, 48bit

· Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

· Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

· Support signal retiming

· Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length

· No loss of quality

· Installs in minutes

· Need DC5V/1A power supply

SPECIFICATIONS:

· HDMI version: HDMI 1.4b

· HDMI resolution ?24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

· Support video color format ?24bit/deep color 30bit,36bit, 48bit

· Support audio format-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD HD(HBR)

· Max bandwidth: up to225MHz

· Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)

· Input/Output DDC signal 5Volts p-p (TTL)

· Max Single Link Range : 1920 x 1200, 1080p

· Input cable distance 15m AWG26 HDMI standard cable

· Output cable distance 20m AWG26 HDMI standard cable

· Power Supply: DC 5V@1A

· Dimension (L x W x H) 65*60*20 (mm)

· Weight: 91mg

Connection And Operation :

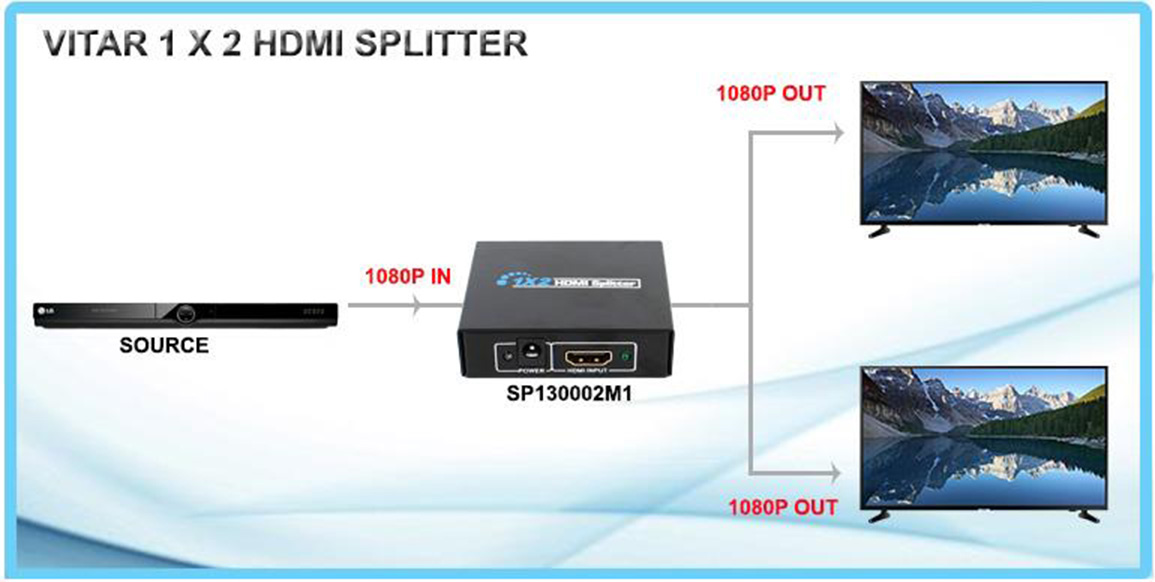

1. Connect the input source and output displays to the HDMI Splitter.

2. Connect the DC 5V power supply to the splitter. Please kindly note that a power supply with a higher voltage may damage the splitter.

3. When input source and output displays are connected and turned on. The corresponding LED will light.

STANDARD PACKAGE :

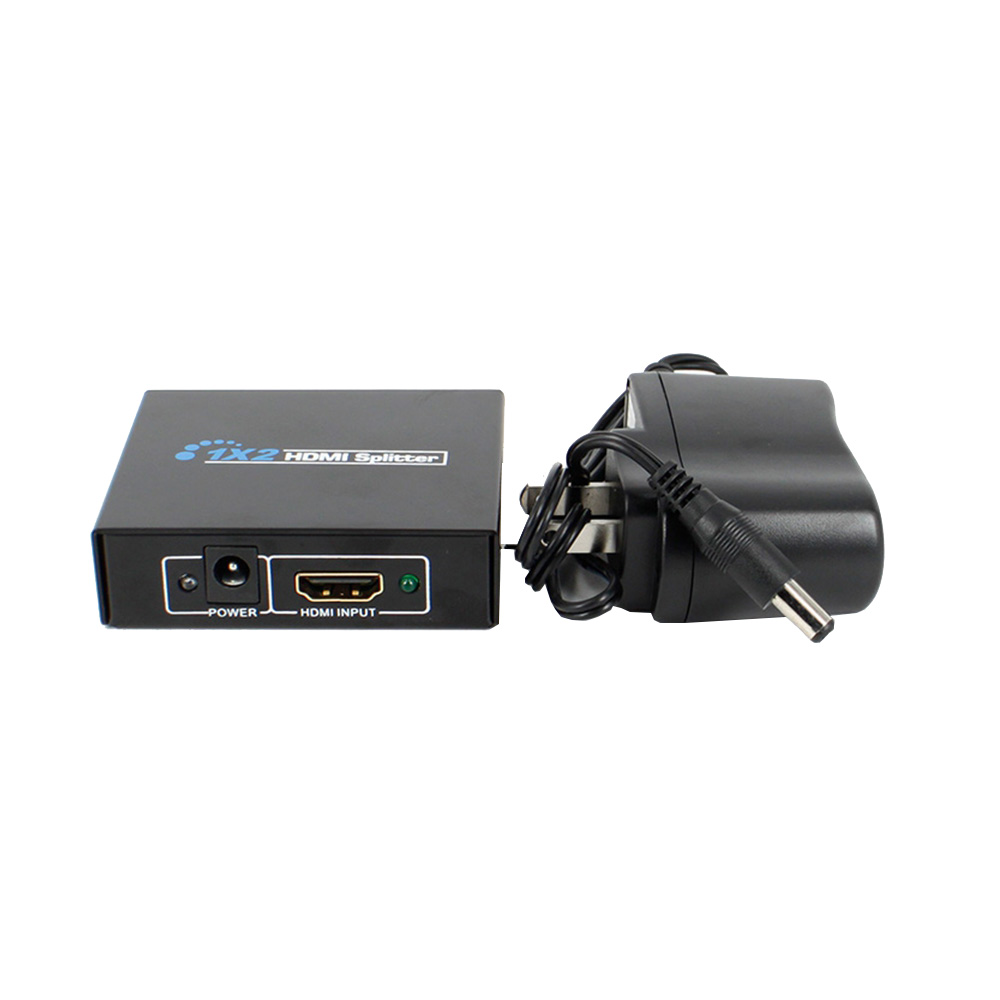

- Main Unit ( HDMI Splitter 1x2 )

- Power Supply DC 5V @ 1A

- User Manual

- One-Year Warranty
