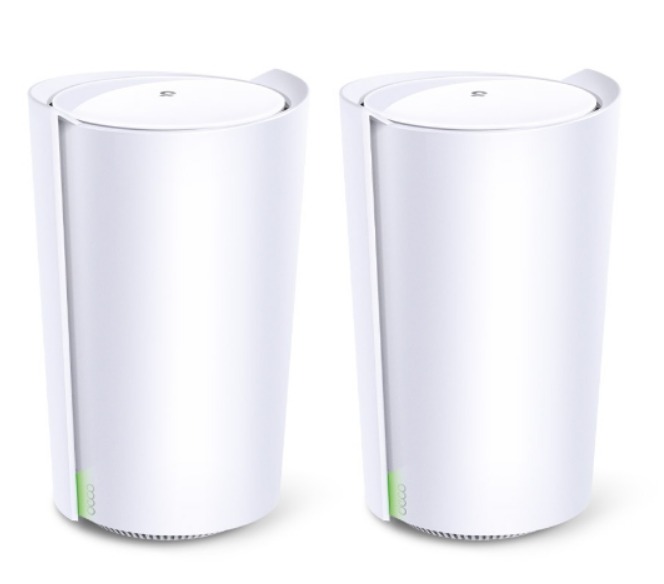

Deco X90 AX6600 Whole Home Mesh Wi-Fi 6 System

Overview:

• AX6600 Tri-Band WiFi: Boosts overall speeds up to an incredible 6600 Mbps


• AI-Driven Mesh: Intelligently learns the network environment to provide ideal Wi-Fi unique to your home


• Smart Antennas: Establish a stronger backhaul to boost coverage and improve wireless connections


• Connect More Devices: Connect up to 200 devices without dragging down performance


• Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6


• TP-Link HomeShield: Keeps your home network safe with cutting-edge features for network and IoT protection


• Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step

Smart Antennas Boost Your Seamless Coverage
Deco X90’s built-in smart antennas use intelligent algorithms to auto-detect other Deco units and establish a stronger backhaul between one another to deliver seamless coverage to every corner of your home.

8 Streams for Lightning-Fast Connections
With 8 simultaneous streams, a WiFi 6 powered tri-band network boosts overall speeds up to a stunning 6600 Mbps, ideal to meet the data needs of all your devices—especially for demanding applications like 8K video and cloud gaming.

Ultra-Fast Broadband Internet Access
A 2.5 Gbps port and a gigabit port allow you to take full advantage of your broadband speed. Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.

Designed for More Devices
Imbued with OFDMA and MU-MIMO technology, like virtually all TP-Link WiFi 6 products, Deco X90 is aimed at dramatically improving capacity and efficiency in traffic-dense environments. No matter how many devices are running at the same time, everyone is able to enjoy immersive streaming or gaming with no drops or buffering.

AI-Driven Mesh: Always Learning, Constantly Optimizing
Armed with AI-Driven Mesh, Deco X90 delivers smart WiFi that follows you wherever you are, without interruption. It automatically learns your network environment, client quality, and user behaviors. Sophisticated algorithms account for various factors so that Deco X90 provides ideal mesh WiFi, unique to your home. Walk through your home and enjoy seamless streaming at the fastest possible speeds.

Let the Experts Secure Your Home
Customize your home network with enhanced security using TP-Link HomeShield's kit of built-in features. Whether you're identifying network security holes, limiting the time your children spend online, or blocking websites, HomeShield gives you the tools you need to fully manage your network.

Network Protection
Detect cyber threats to keep your privacy and connected devices well protected.

Robust Parental Controls
Manage online time and block inappropriate content to keep families healthy online.

Quality of Service (QoS)
Prioritize your bandwidth needs to get a faster networking experience.

Comprehensive Reports
Gain full statistics and insights to help you know your home network better.

Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
1) Connect Deco to your cable modem and power on both devices
2) Download and launch the Deco app; just follow the in-app directions to finish the setup steps
3) Follow in-app instructions to configure your Deco system.

Wi-Fi Made Easy

Easy Management
Manage your Wi-Fi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.

Voice Control
Pair with Alexa to control Deco X90 with simple voice commands. Enjoy the convenient life.

All Decos Work Together
Deco X90 is compatible with every other Deco model to form a mesh network. Expand mesh Wi-Fi coverage anytime by simply adding more Decos.

SECURITY

Network Security
SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

WiFi Encryption
WPA-Personal
WPA2-Personal
WPA3-Personal

WIRELESS

Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds
AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

WiFi Range
TP-Link Mesh Technology - Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
AI-Driven Mesh - Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
4× High-Gain Antennas (Internal) - Multiple antennas form a signal-boosting array to cover more directions and large areas
2× Smart Antennas (Internal) - Smart antennas auto-detect other Deco units to establish a stronger backhaul between one another to boost WiFi coverage
Tri-Band - Provides an extra 5 GHz band working exclusively as the strong backhaul, strengthening the WiFi coverage
Beamforming - Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity
Very High
Tri-Band - Distribute devices to different bands for optimal performance
4×4 MU-MIMO - Simultaneously communicates with multiple MU-MIMO clients
OFDMA - Simultaneously communicates with multiple WiFi 6 clients
8 Streams - More than enough bandwidth for connected devices

Working Modes
Router Mode
Access Point Mode

HARDWARE

Ethernet Ports
1× 2.5 Gbps Port
1× Gigabit Port
*Per Deco Unit, Supports WAN/LAN auto-sensing

Buttons
Reset Button

SOFTWARE

Protocols
IPv4
IPv6

Service Kits
HomeShield

HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
HomeShield QoS
QoS by Device

Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
UPnP

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List
Server

DDNS
TP-Link

Management
Deco App

TEST DATA

WiFi Transmission Power
CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)

PHYSICAL

Dimensions (W×D×H)
5.1 × 4.8 × 8.3 in
(130 × 123 × 210 mm)

Package Contents
Deco X90 (1-pack)
1 Deco X90 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide

OTHERS

System Requirements
Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

Certifications
CE, EAC, FCC, IC, RoHS, RCM

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
