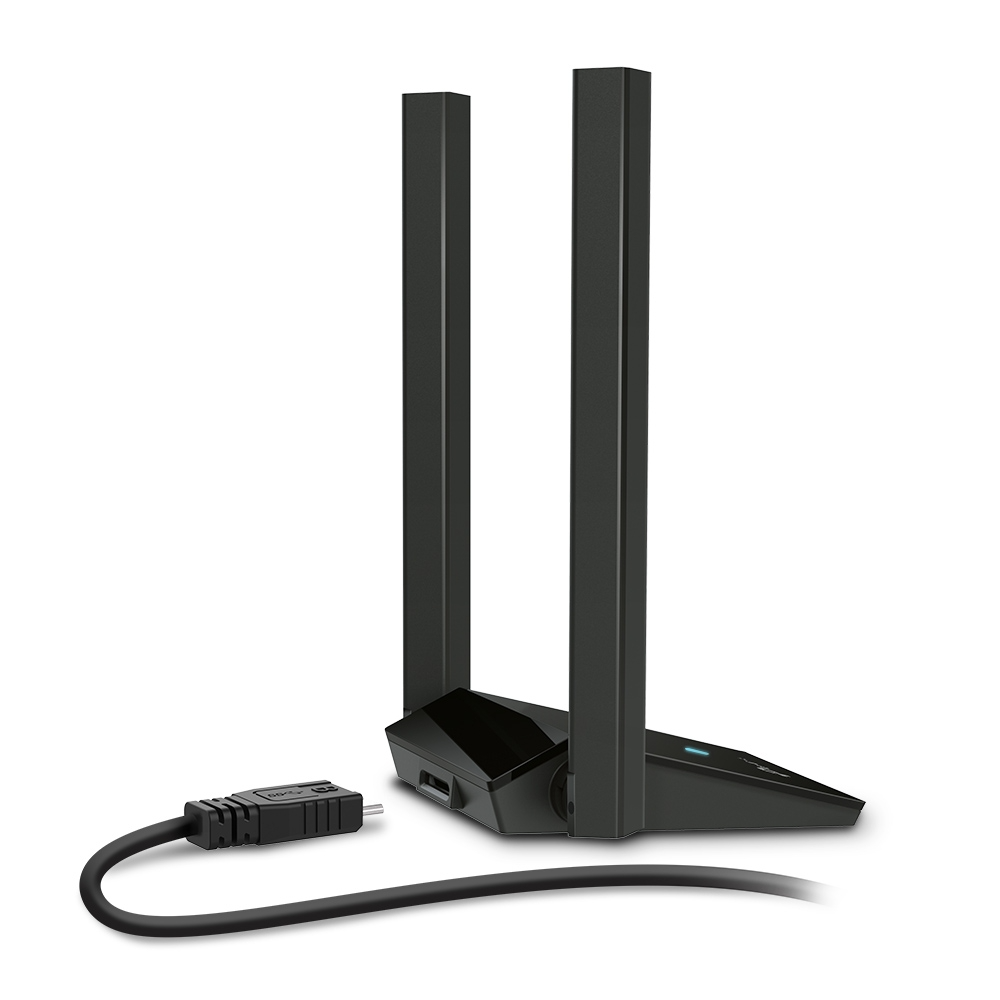

Archer TX20U Plus: AX1800 Dual Antennas High Gain Wireless USB Adapter

Lightning-Fast WiFi 6 – Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
Flexible Dual Band – Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands
Dual High-Gain Antennas – Connect from farther away with high-quality signals and transmissions
MU-MIMO – Maintain high download and upload speeds even when other devices are eating up your bandwidth
OFDMA – Reduce your latency for impeccable conferencing and gameplay on crowded networks
SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0
Refined Security – Protect your personal data with the latest WPA3 encryption

Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

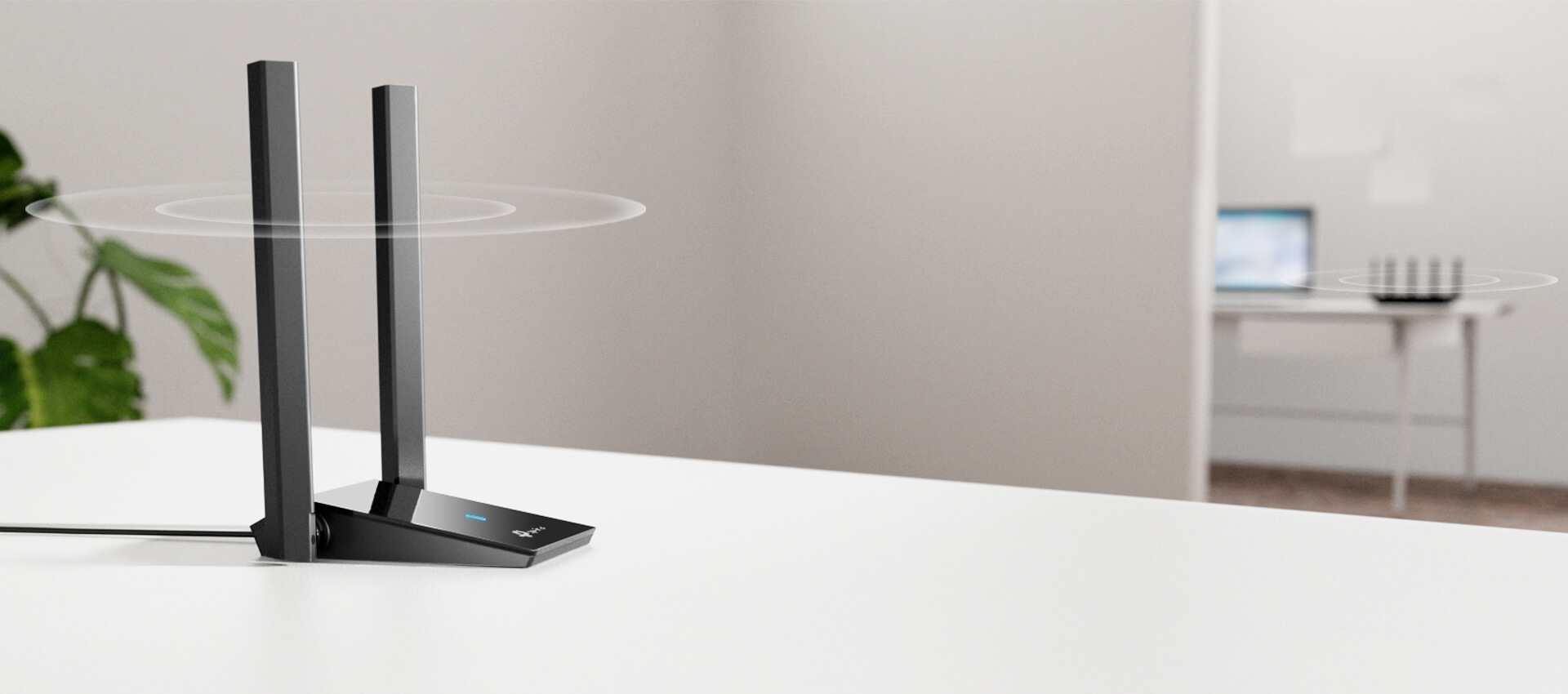

Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.

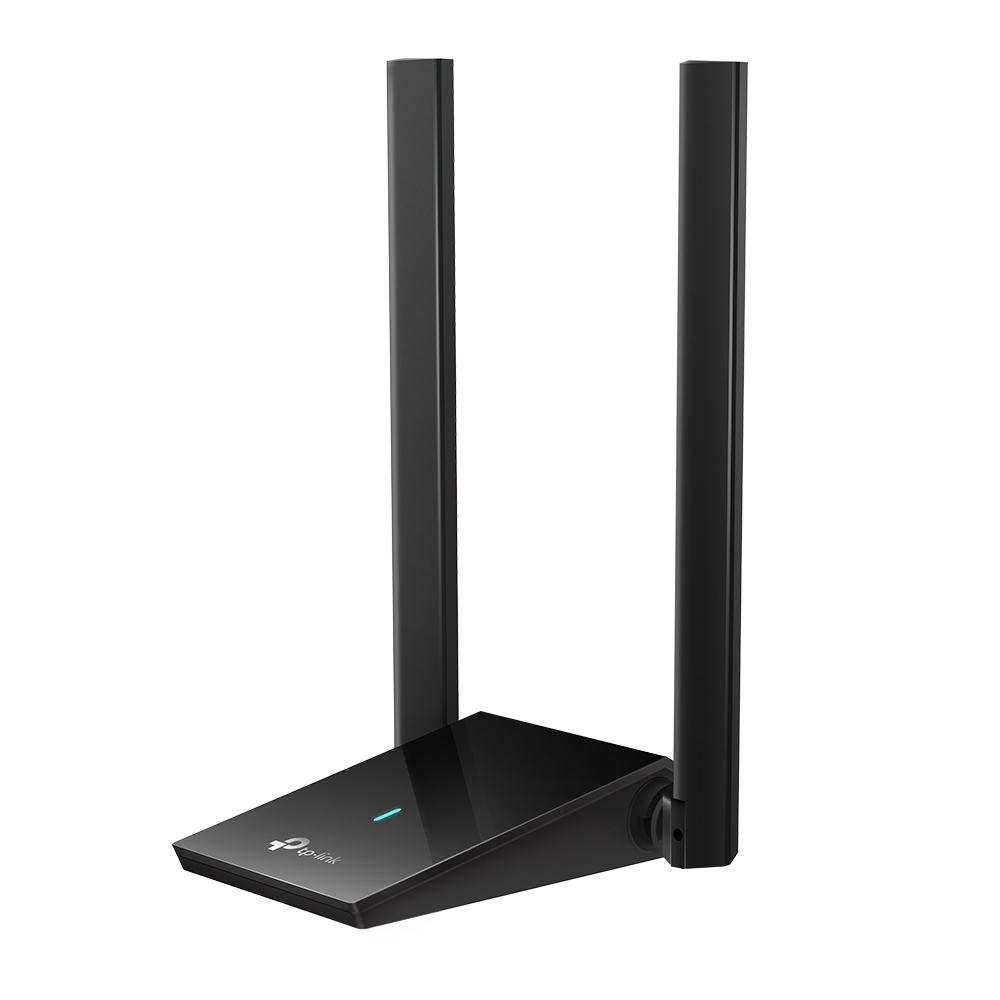

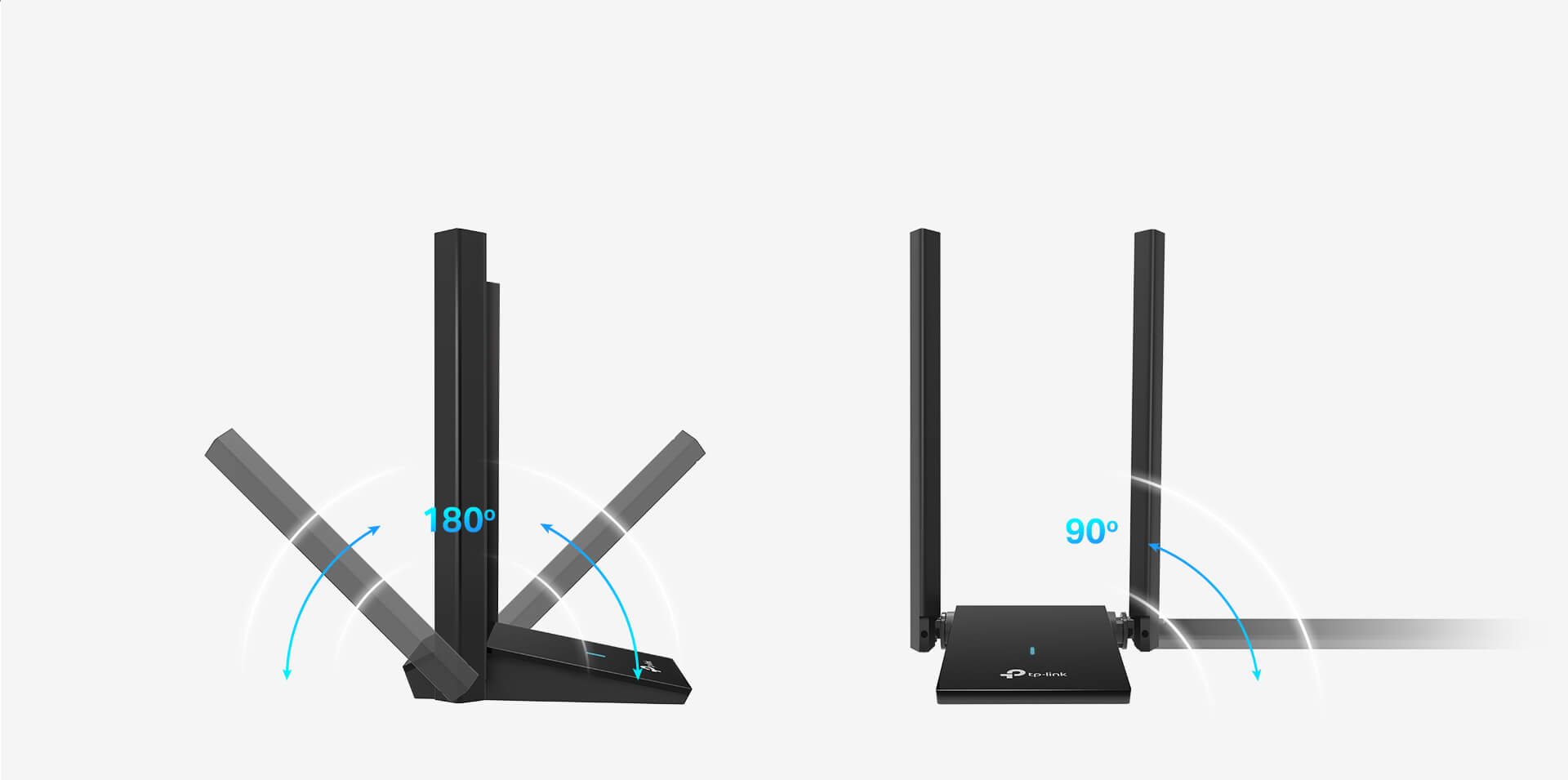

Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.

Simple Design and Placement

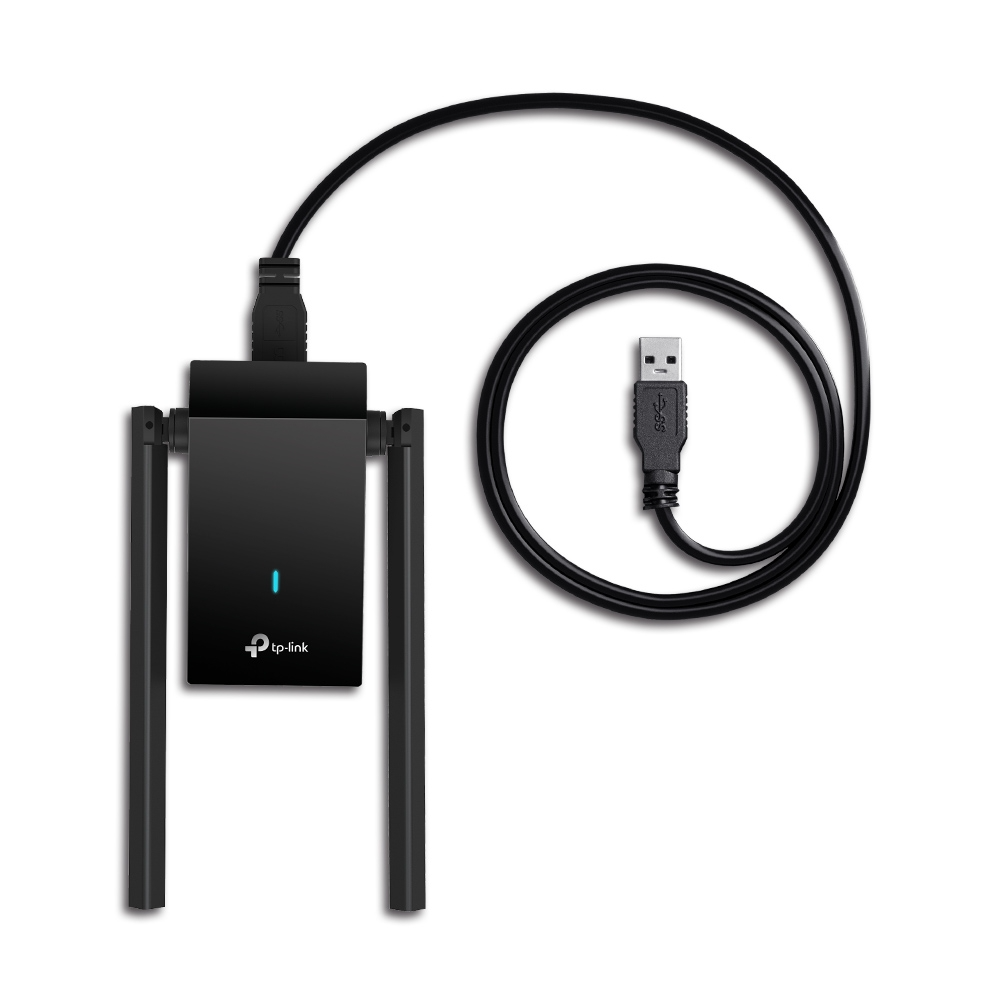

Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.

Setup Made Easy
TX20U Plus comes with its driver pre-loaded. Just plug and install.

Next-Gen Security
WPA3 encryption protects your PC from brute-force attacks, keeping your personal data safe.

Operating Systems
Works with Windows 11/10

HARDWARE FEATURES

LED
Status

Dimensions
84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in)

Antenna
2× High-Gain Dual-Band Antennas

WIRELESS FEATURES

Wireless Standards
IEEE 802.11a/b/g/n/ac/ax

Signal Rate
5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -94 dBm
11ax HE40 MCS11: -66 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -74dBm

Transmit Power
5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)

Wireless Modes
Infrastructure mode

Wireless Security
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

OTHERS

Certification
FCC, CE, RoHS

Package Contents
AX1800 Dual Antennas High Gain Wireless USB Adapter
Archer TX20U Plus
Quick Installation Guide
1-meter USB 3.0 Cable

System Requirements
Supported operating systems include Windows 10, 11

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
