Spec Overview
Boost Clock (MHz) = 2300
Xe Core: 32
Ray Tracing Units: 32
Intel® XMX Engines: 512
Xe Vector Engines: 512
Memory Size = 16GB DDR6
Graphics Memory Interface: 256-bit
Graphics Memory Speed: 17.5 Gbps

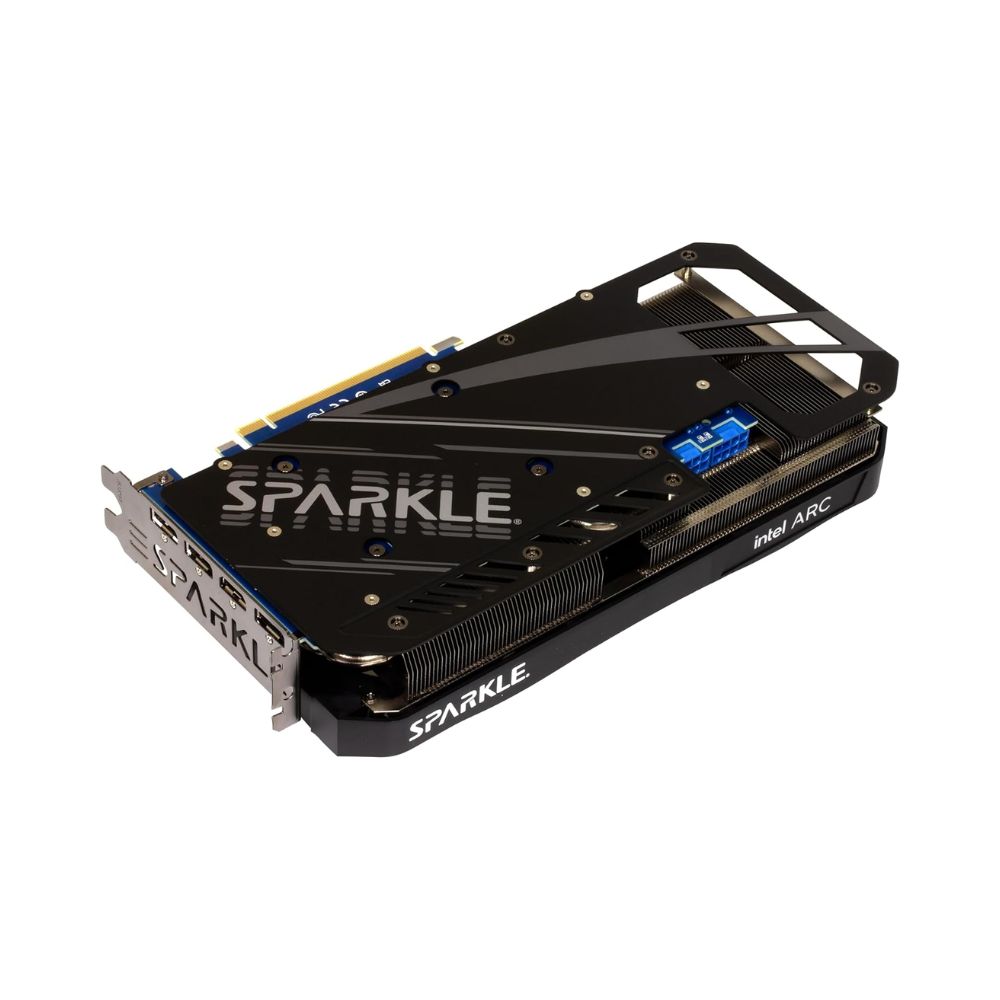

Metal Backplate
2x 100mm Double Ball Bearing Fans
1A1-S00413300G Requirement ~650 Watt or greater power supply.
Resolution & Refresh ~1 x HDMI 2.0 b (Max): 4096 x 2160@60Hz
Resolution & Refresh ~3x DisplayPort 2 .0 (Max): 7680 x 4320@60Hz
PCI Express Configurations: PCI Express 4.0 x16
TBP: 225 Watt
Dimension: 261 x 118 x 48.4 mm
