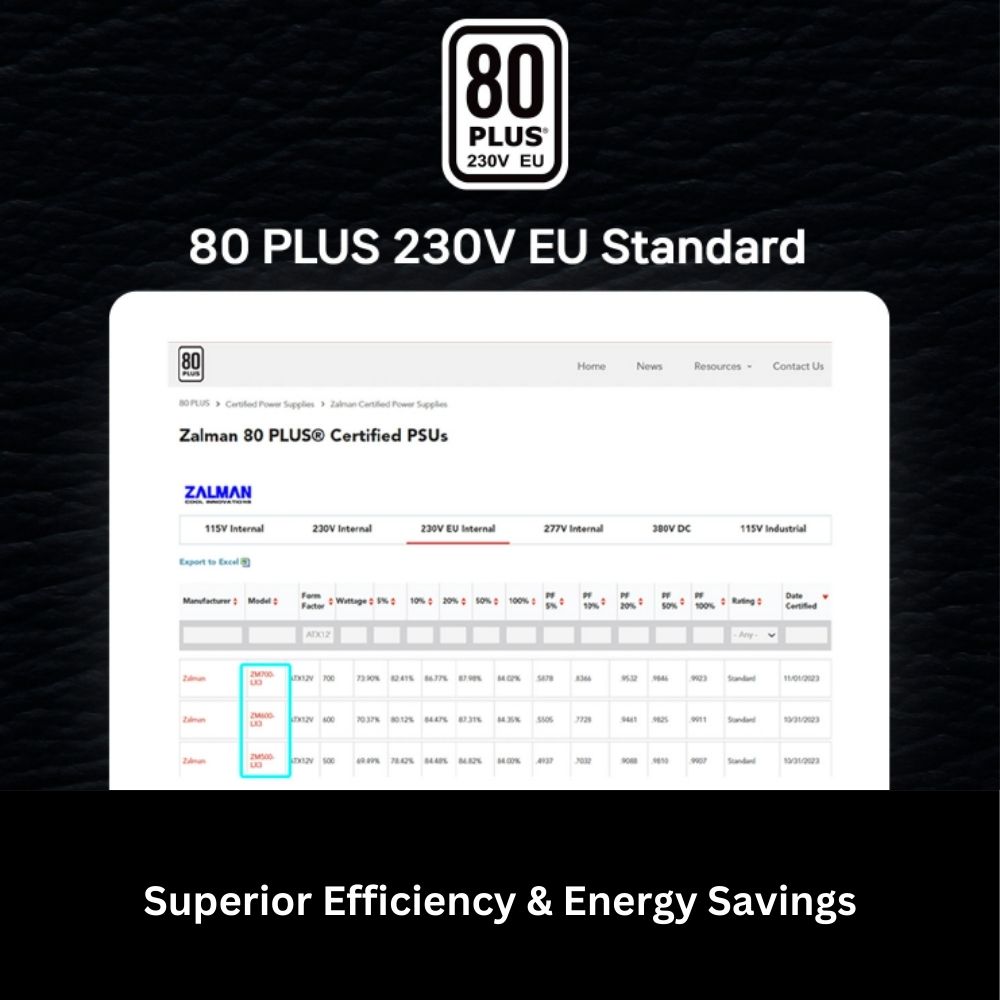

80 PLUS 230V EU Standard Certified
-Superior Efficiency & Energy Savings

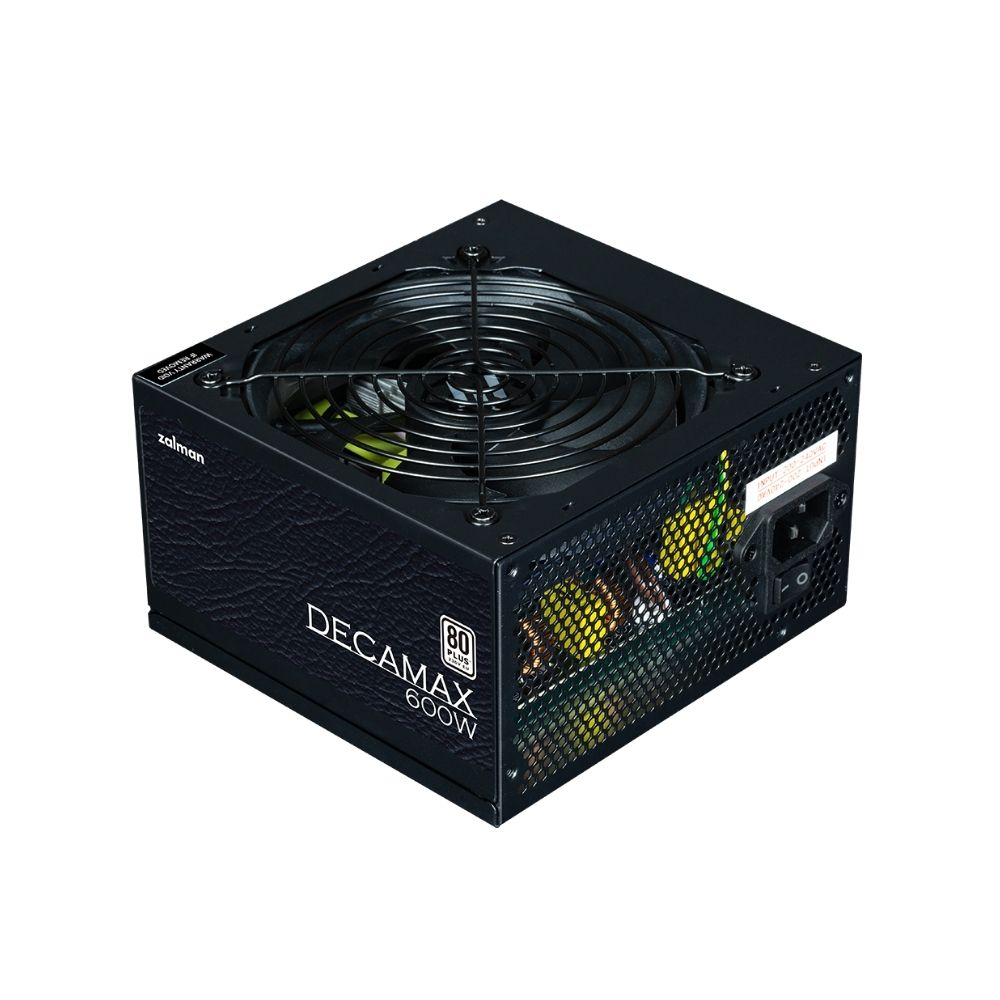

Model    DecaMax [600W] ZM600-LX3
80PLUS STANDARD Power Supply
Efficiency    Max 85% @230VAC, Typical Load
Dimensions    140(L) x 150 (W) x 86 (H) mm
MTBF    100,000Hours
Weight    1.5 kg
Operating Temperature    10~45?

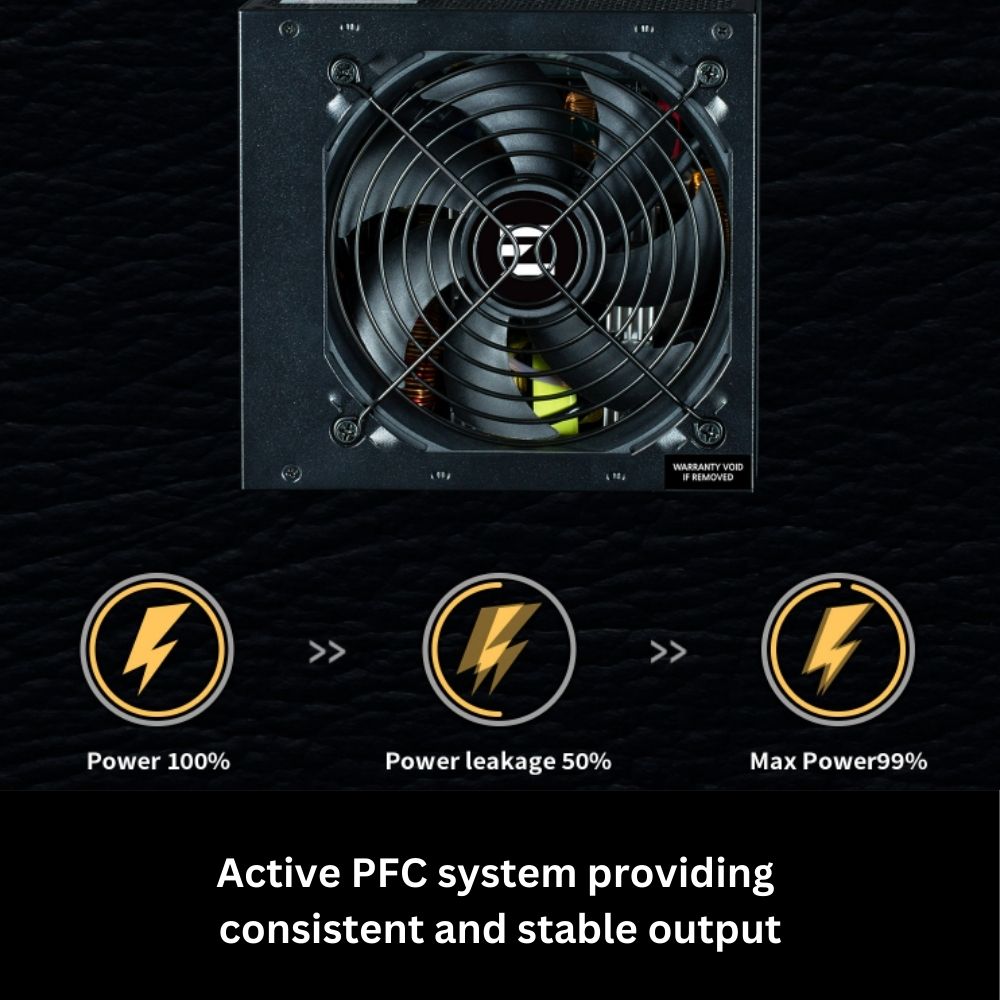

PFC    Active PFC 99%
Regulatory    KC, CE, CB, RoHS, EAC,RCM
Type    Intel ATX 12V Ver 2.31
Protection    OPP/ OVP/ UVP/ SCP
Input Voltage    200-240VAC
Input Current    5A
Input Frequency    50-60Hz
Fan Size    120mm
Rated Speed    2,500 RPM

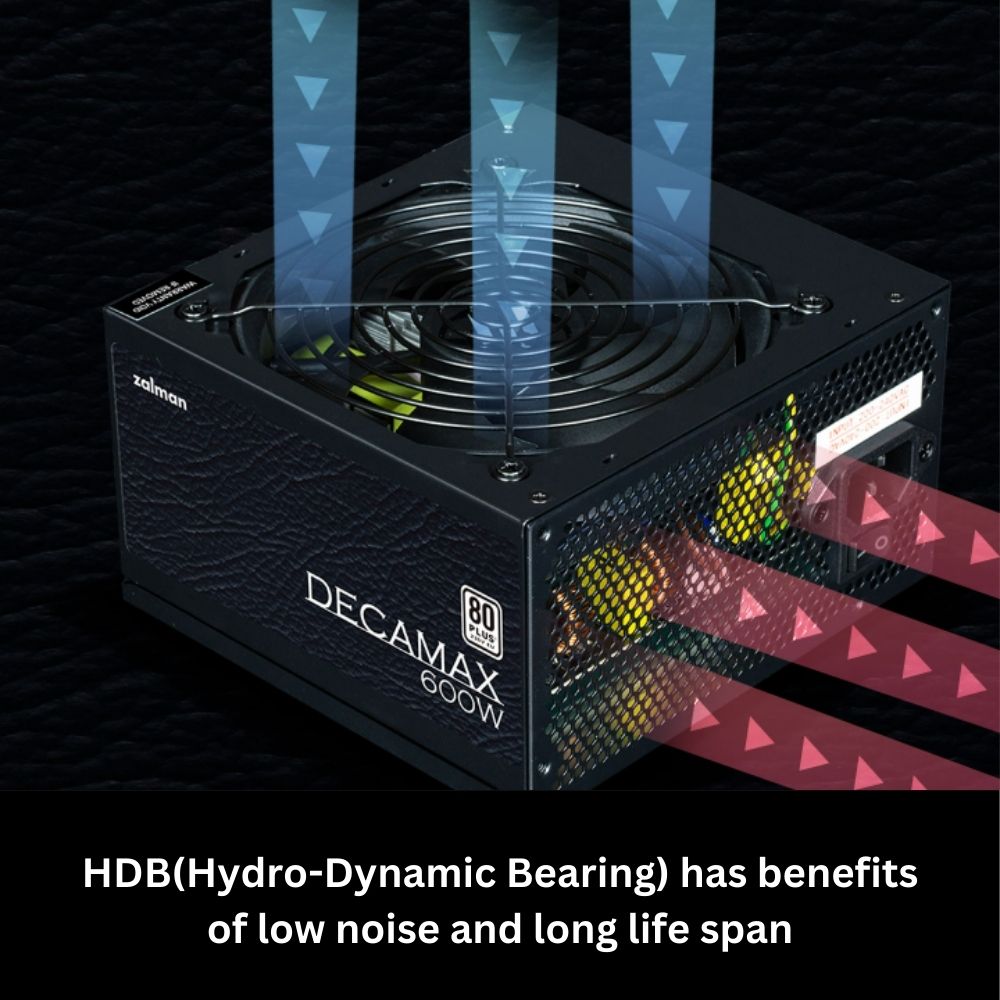

Fan Bearing    Hydro- Dynamic Bearing
Cables (Connector)    Mainboard Cable
CPU Cable x 1
PCI Express Cable (Connector 2EA) x 1
IDE Connector x 3
S-ATA Cable x 6
---------------------------------------------------------------------------------------

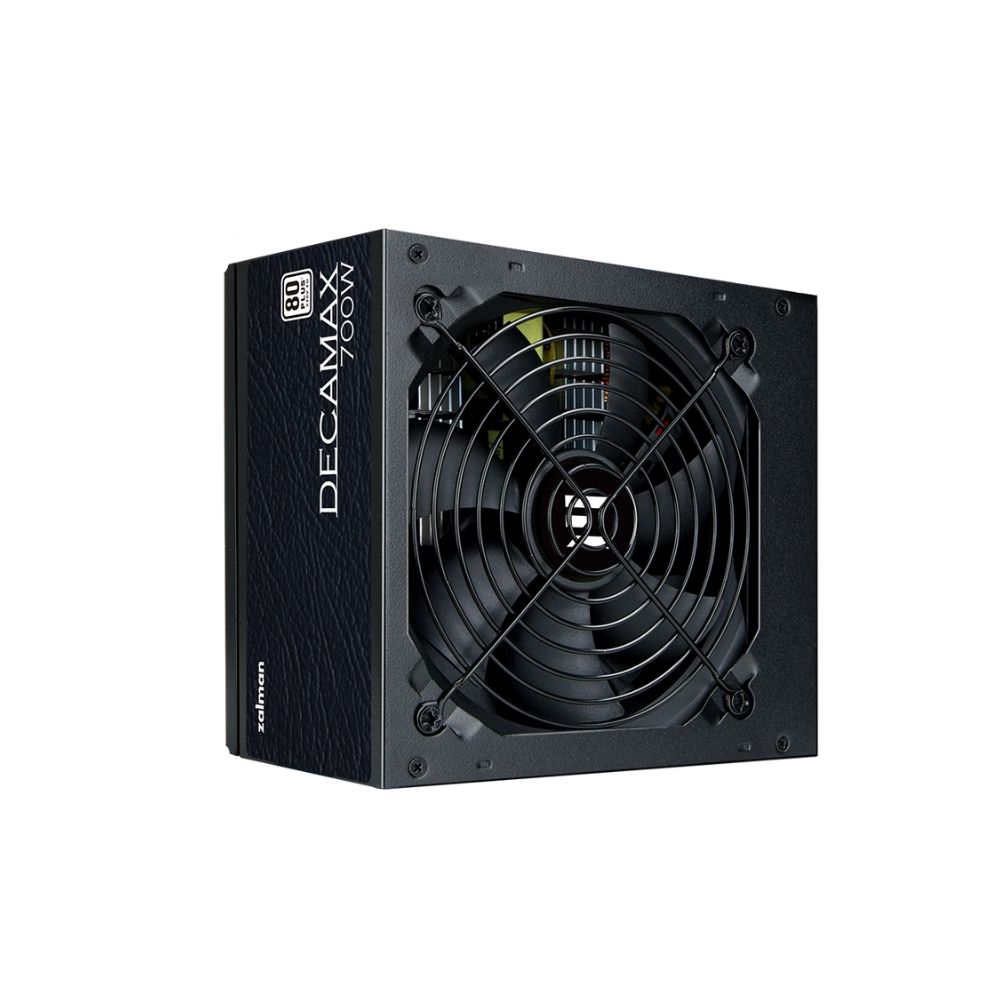

Model    DecaMax [700W] ZM700-LX3
80PLUS STANDARD Power Supply
Efficiency    Max 85% @230VAC, Typical Load
Dimensions    140(L) x 150 (W) x 86 (H) mm
MTBF    100,000Hours
Weight    1.6 kg
Operating Temperature    10~45?
PFC    Active PFC 99%
Regulatory    KC, CE, CB, RoHS, EAC,RCM
Type    Intel ATX 12V Ver 2.31
Protection    OPP/ OVP/ UVP/ SCP
Input Voltage    200-240VAC
Input Current    5A
Input Frequency    50-60Hz
Fan Size    120mm
Rated Speed    2,500 RPM
Fan Bearing    Hydro- Dynamic Bearing
Cables (Connector)    Mainboard Cable
CPU Cable (Connector 2ea) x 1
PCI Express Cable (Connector 2EA) x 2
IDE Connector x 3
S-ATA Cable x 6
