Processor
Intel® Core Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB

AI PC Category
AI PC

NPU
Integrated Intel® AI Boost, up to 12 TOPS

Graphics
Integrated Intel® Graphics

Chipset
Intel® SoC Platform

Memory
1x 16GB SO-DIMM DDR5-5600

Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory
Up to 64GB DDR5-5600

Storage
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0

Storage Slot
Two M.2 slots
• One M.2 2242 PCIe® 4.0 x4 slot
• One M.2 2280 PCIe® 4.0 x4 slot

Max Storage Support
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 1TB

Card Reader
No card reader

Audio Chip
High Definition (HD) Audio, Senary SN6147 codec

Speakers
Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN

Microphone
2x, Array

Camera
FHD 1080p + IR Hybrid with Privacy Shutter

Battery
48Wh

Power Adapter
65W USB-C® (3-pin)

Display
16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz

Touchscreen
None

Screen-to-Body Ratio
90.7%

Pen
Pen Not Supported

Keyboard
Backlit, English

Dimensions (WxDxH)
356 x 249 x 10.1/17.05 (front/rear), 21.95 (maximum) mm
14.01 x 9.8 x 0.40/0.67 (front/rear), 0.86 (maximum) inches

Weight
Starting at 1.63 kg (3.59 lbs)

Case Color
Black

Case Material
Aluminium (Top), PC-ABS (Bottom)

Operating System
Windows® 11 Pro, English (US) / English (UK)

Bundled Software
None

WLAN + Bluetooth
Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 + BT5.2

WWAN
Non-WWAN

SIM Card
None

Ethernet
100/1000M (RJ-45)

NFC
None

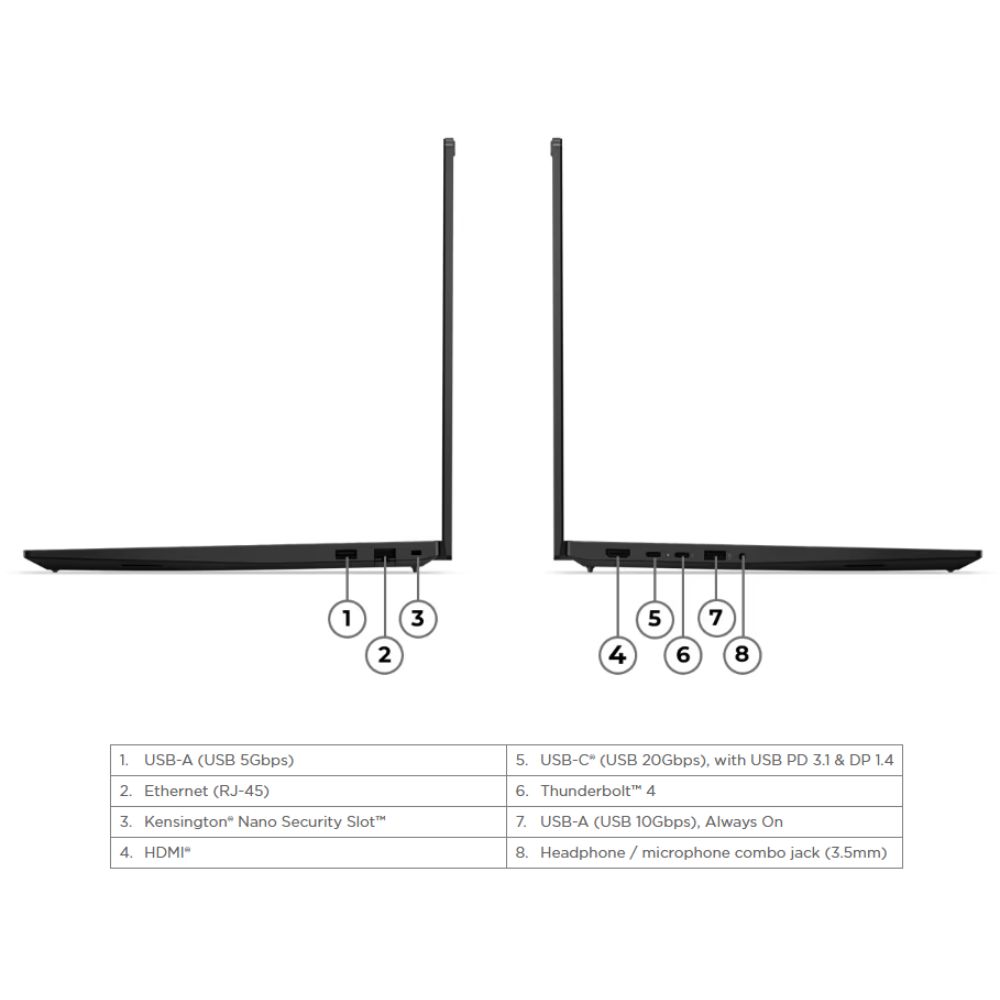

Standard Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.1 and DisplayPort™ 1.4
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.1 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)

Docking
Various docking solutions supported via Thunderbolt™ or USB-C®.
For more compatible docking solutions, please visit Docking for ThinkPad® E16 Gen 3 (Intel®)

Security Chip
Discrete TPM 2.0 Enabled

Physical Locks
Kensington® Nano Security Slot, 2.5 x 6 mm

Smart Card Reader
None

Fingerprint Reader
Touch Style, Match-on-Chip, Integrated in Power Button

Other Security
Camera privacy shutter
IR camera for Windows® Hello (facial recognition)
ThinkShield
