PERFORMANCE
Processor
AMD Ryzen™ 7 8745HX (8C / 16T, 3.6 / 5.1GHz, 8MB L2 / 32MB L3)
AI PC Category
Non-AI PC
Graphics
NVIDIA GeForce RTX™ 5060 8GB GDDR7
Chipset
AMD SoC Platform
Memory
1x 16GB SODIMM DDR5-5200
Memory Slots
Two DDR5 SODIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-5200
Storage
1x 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Max Storage Support
Up to four drives, 2x M.2 SSD +  2x 3.5" HDD

- 3.5" HDD bay is only for customer self upgrade
- M.2 SSD up to 2TB each

Card Reader
No Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers
No speakers
Power Supply
500W 88%
DESIGN
Keyboard
USB Calliope Keyboard, Luna Grey, English
Mouse
USB Calliope Mouse, Luna Grey
Expansion Slots
One PCIe® 4.0 x16, full height
One PCIe® 3.0 x1, full-height
Three M.2 slots (one for WLAN, two for SSD)
Case Color
Luna Grey (Front Bezel), Eclipse Black (Chassis)
Chassis
Transparent Cover
System Fan
2x 120MM front system fan with ARGB light + 120MM rear system fan with ARGB light
Carry Handle
Carry Handle
Pen
Pen Not Supported
Form Factor
Tower (26L)
Dimensions (WxDxH)
205 x 404.5 x 437.1 mm (8.07 x 15.92 x 17.2 inches)
Weight
Around 10.5 kg (23.14 lbs)
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 6, 802.11ax 2x2 + BT5.2
WWAN
WWAN Not Supported
Ethernet
Integrated 100/1000M

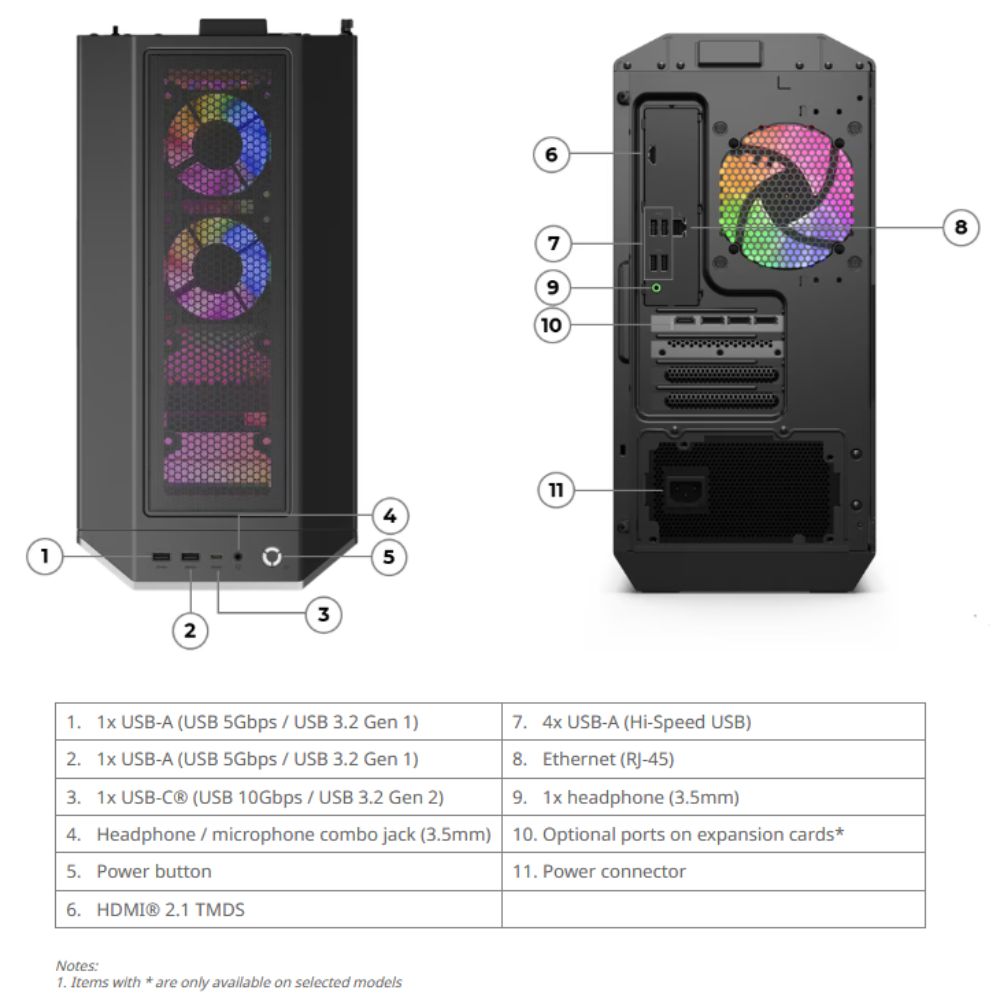

Top Ports
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
Rear Ports
4x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI® 2.1 TMDS
1x Ethernet (RJ-45)
1x headphone (3.5mm)
1x power connector
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 integrated in SoC
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
3Y Premium Care - Idea DT (ESS)
CERTIFICATIONS
Green Certifications
ErP Lot 3
RoHS compliant
SOFTWARE
Operating System
Windows® 11 Home Single Language, Simplified Chinese / English
Bundled Software
Office Home 2024
