PERFORMANCE
Processor
Intel® Core i7-14700HX, 20C (8P + 12E) / 28T, P-core 2.1 / 5.5GHz, E-core 1.5 / 3.9GHz, 33MB
AI PC Category
AI-Powered Gaming PC
Graphics
NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
Chipset
Intel® HM770 Chipset
Memory
1x 16GB SO-DIMM DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-5600 offering
Storage
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support
Up to two drives, 2x M.2 SSD
• M.2 SSD up to 1TB each
Optical
None
Card Reader
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers
Stereo speakers, 2W x2, optimized with Nahimic Audio
Microphone
2x, Array
Camera
5.0MP with E-shutter
Battery
60Wh
Power Adapter
245W Slim Tip (3-pin)
Special Features
AI Chip: LA1

DESIGN
Display
17.3" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB, 165Hz, G-SYNC®
Touchscreen
None
Screen-to-Body Ratio
88% AAR (active area ratio)
Color Calibration
None
Pen
Pen Not Supported

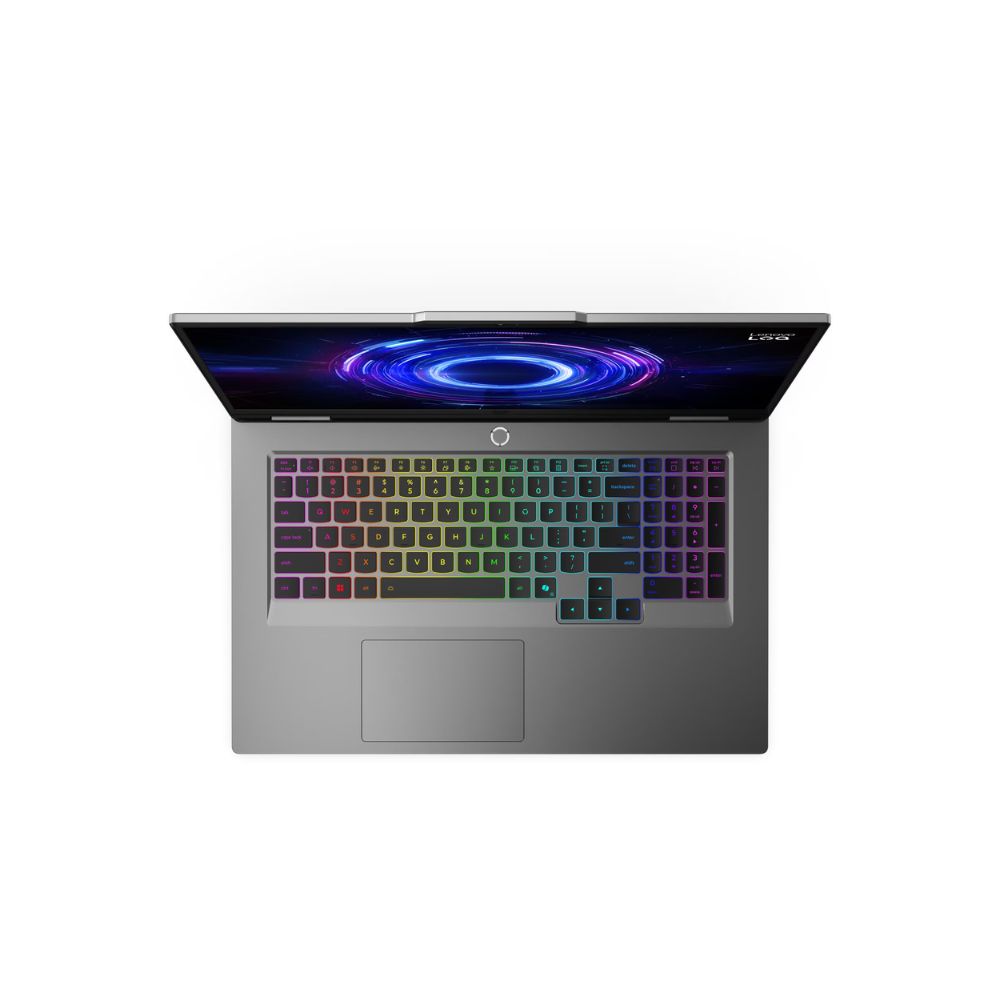

Keyboard
24-Zone RGB Backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)
398.4 x 276.2 x 22.95-25.25 mm (15.69 x 10.87 x 0.94-0.99 inches)
Weight
Starting at 2.9 kg (6.39 lbs)
Case Color
Luna Grey
Case Material
PC-ABS (Top), PC-ABS (Bottom)
Surface Treatment
Painting

SOFTWARE
Operating System
Windows® 11 Home Single Language, Simplified Chinese / English
Bundled Software
Office Trial + Lenovo® AI Now

CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 6, 802.11ax 2x2 + BT5.2
WWAN
Non-WWAN
Ethernet
100/1000M (RJ-45)

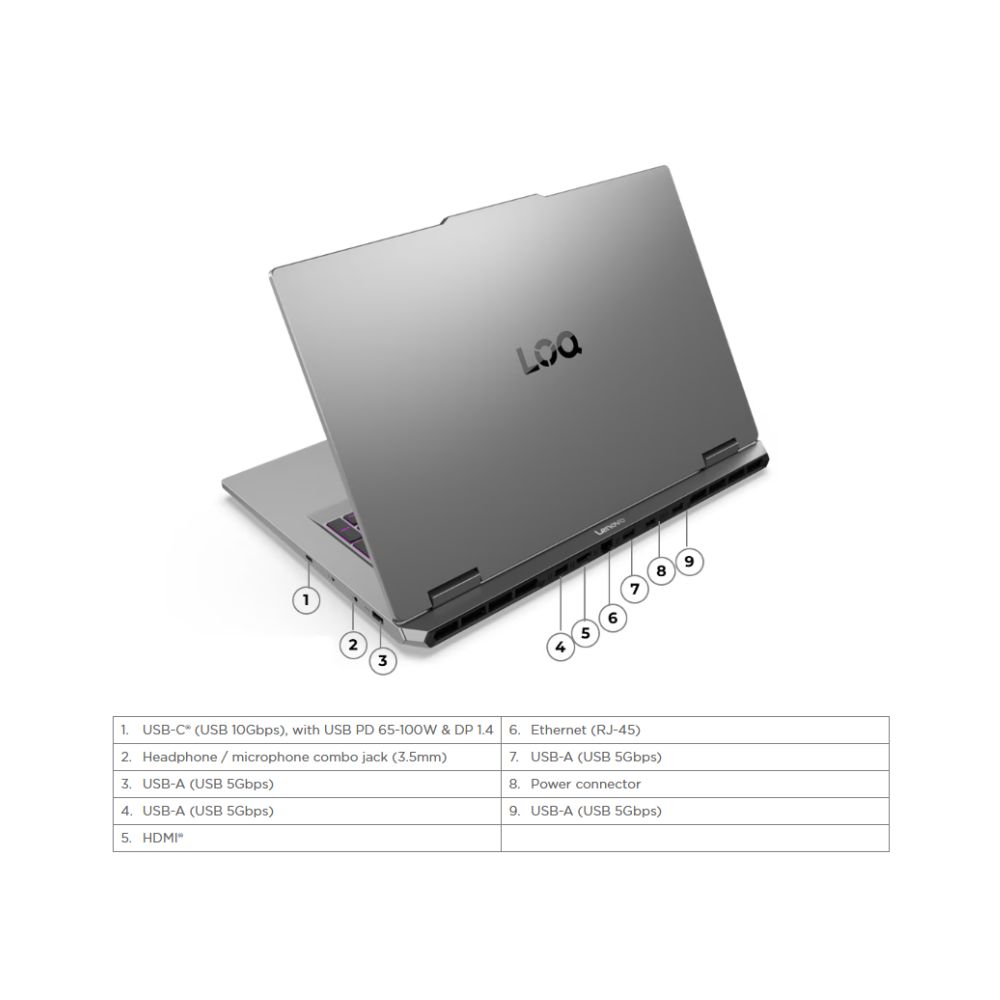

Standard Ports
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 1.4
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Power connector
Docking
Various docking solutions supported via USB-C®.
For more compatible docking solutions, please visit Docking for LOQ 17IRX10

SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
None
Other Security
E-shutter
