PERFORMANCE
Processor
Intel® Core Ultra 5 225F, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB Intel Smart Cache
AI PC Category
AI-Powered Gaming PC
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Graphics
NVIDIA® GeForce RTX™ 5060 Ti 8GB GDDR7
Chipset
Intel® B860 Chipset
Memory
2x 8GB UDIMM DDR5-5600
Memory Slots
Four DDR5 UDIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-6400
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Max Storage Support
Up to four drives, 3x M.2 SSD + 1x open 3.5 HDD Bay
• 3.5" HDD bay only for customer self upgrade
• M.2 SSD up to 2TB each
Card Reader
None
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC623 codec
Speakers
No speakers
Power Supply
500W 85%
DESIGN
Keyboard
None
Mouse
None
Expansion Slots
One PCIe® 5.0 x16
One PCIe® 3.0 x4
Four M.2 slots (one for WLAN, three for SSDs)
Case Color
Eclipse Black (Transparent cover) + airflow with ARGB + Inner Decorate Cover
System Lighting
Legion Logo Lighting
Chassis
Transparent Cover + Inner Decorate Cover
Cooler
PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W airflow 120MM-Fan with ARGB light
System Fan
1x Rear with ARGB + 2x Top with ARGB + 2x Buttom with ARGB
Pen
Pen Not Supported
Form Factor
Tower (30L)
Dimensions (WxDxH)
211 x 490.4 x 414 mm (8.3 x 19.3 x 16.29 inches)
Weight
Around 15 kg (33.06 lbs)
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2x2 + BT5.4
WWAN
Non-WWAN
Ethernet
2.5GbE RTL8125BG

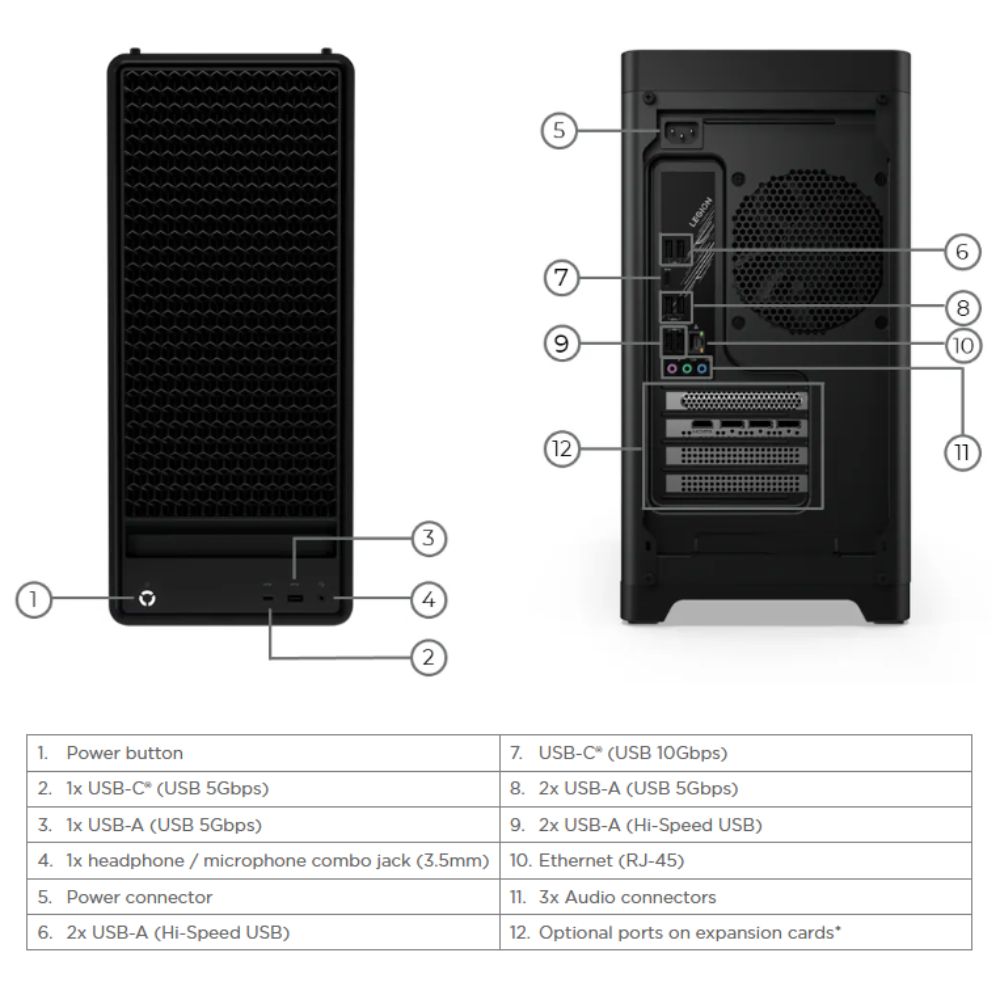

Top Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
Rear Ports
1x USB-C® (USB 10Gbps / 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
4x USB-A (Hi-Speed USB / USB 2.0)
1x Ethernet (2.5GbE RJ-45)
1x power connector
3x audio out (5.1 channel)
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 integrated in chipset
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
3Y Legion Ultimate Support -Idea DT (ESS)
CERTIFICATIONS
Green Certifications
RoHS compliant
SOFTWARE
Operating System
Windows® 11 Home Single Language, Simplified Chinese / English
Bundled Software
Lenovo® AI Now
