PERFORMANCE
Processor
Intel® Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB
AI PC Category
AI-Powered Gaming PC
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Graphics
NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
Chipset
Intel® HM870 Chipset
Memory
1x 16GB SO-DIMM DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-5600 offering
Storage
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 1TB
Optical
None
Card Reader
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Microphone
2x, Array
Camera
5.0MP with E-shutter
Battery
80Wh
Power Adapter
245W Slim Tip (3-pin)
Special Features
AI Chip: LA3

DESIGN
Display
16" WQXGA (2560x1600) OLED 500nits Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free
Touchscreen
None
Screen-to-Body Ratio
91.7% AAR (active area ratio)
Color Calibration
Factory Color Calibration
Pen
Pen Not Supported
Keyboard
24-Zone RGB Backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)
364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches)
Weight
Around 2.43 kg (5.36 lbs)
Case Color
Eclipse Black
Case Material
Aluminium (Top), PC-ABS (Bottom)
Surface Treatment
Anodizing Sandblasting

SOFTWARE
Operating System
Windows® 11 Home Single Language, Simplified Chinese / English
Bundled Software
Office Trial + Lenovo® AI Now

CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2x2 + BT5.4
WWAN
Non-WWAN
Ethernet
100/1000M (RJ-45)

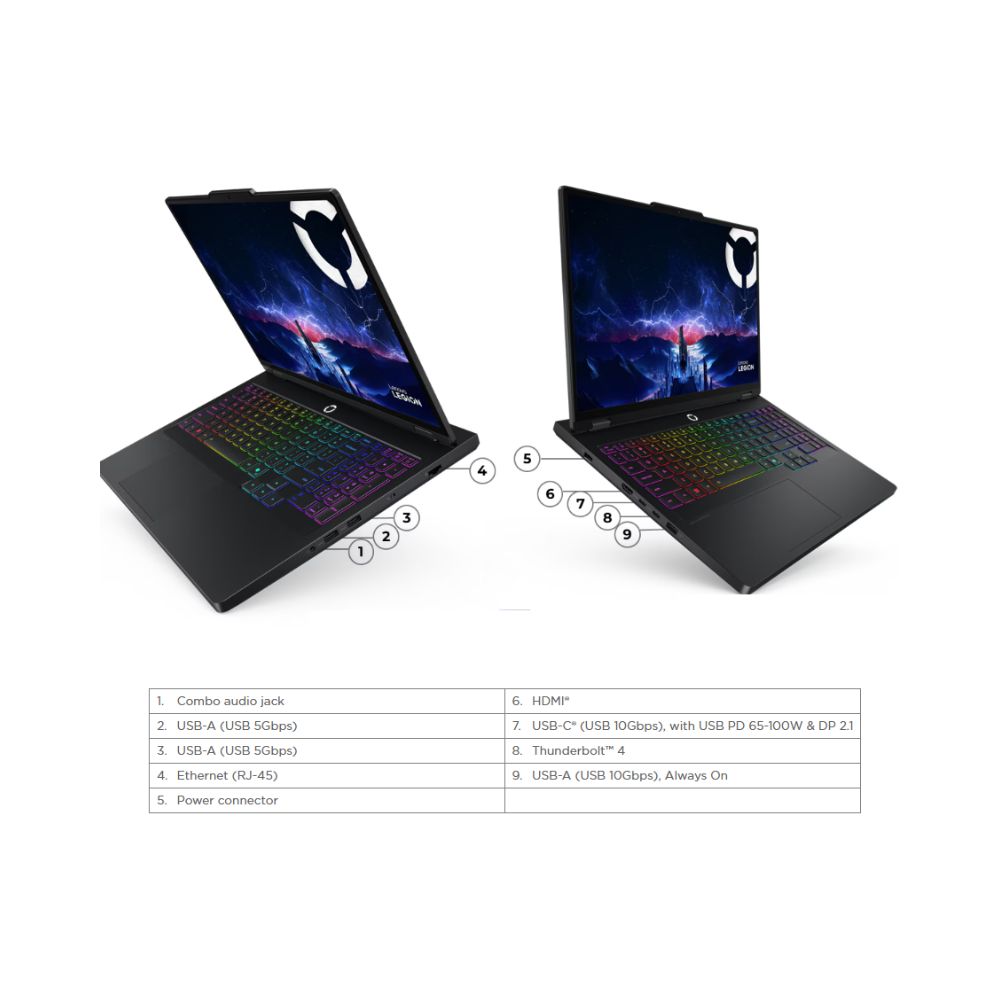

Standard Ports
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Power connector
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®.
For more compatible docking solutions, please visit
Docking for Legion Pro 5 16IAX10

SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
None
Other Security
E-shutter
