PERFORMANCE

Processor:Intel® Core i7-14700HX, 20C (8P + 12E) / 28T, P-core 2.1 / 5.5GHz, E-core 1.5 / 3.9GHz, 33MB

AI PC Category:AI-Powered Gaming PC

NPU:None

Graphics:NVIDIA® GeForce RTX™ 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS

Chipset:Intel® HM770 Chipset

Memory:2x 12GB SO-DIMM DDR5-4800

Memory Slots:Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory:Up to 32GB DDR5-4800 offering

Storage:1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot:Two M.2 2280 PCIe® 4.0 x4 slots

Max Storage Support:Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each

Optical:None

Card Reader:None

Audio Chip:High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers:Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone:2x, Array

Camera:5.0MP with E-shutter

Battery:80Wh

Power Adapter:245W Slim Tip (3-pin)

Special Features:AI Chip: LA1

DESIGN

Display:15.1" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision®, DisplayHDR™ True Black 600

Touchscreen:None

Screen-to-Body Ratio:OLED models: 90% AAR (active area ratio)

Color Calibration:Factory Color Calibration

Pen:Pen Not Supported

Keyboard:24-Zone RGB Backlit, English

Touchpad:Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH):344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79-0.85 inches)

Weight:Starting at 1.9 kg (4.19 lbs)

Case Color:Eclipse Black

Case Material:Aluminium (Top), PC-ABS + 15% Talc (Bottom)

Surface Treatment:Aluminium Stamping (Anodized with Sandblasting)

SOFTWARE

Operating System:Windows® 11 Home Single Language, Simplified Chinese / English

Bundled Software:Office Trial + Lenovo® AI Now

CONNECTIVITY

WLAN + Bluetooth:Wi-Fi® 7, 802.11be 2x2 + BT5.4

WWAN:Non-WWAN

Ethernet:100/1000M (RJ-45)

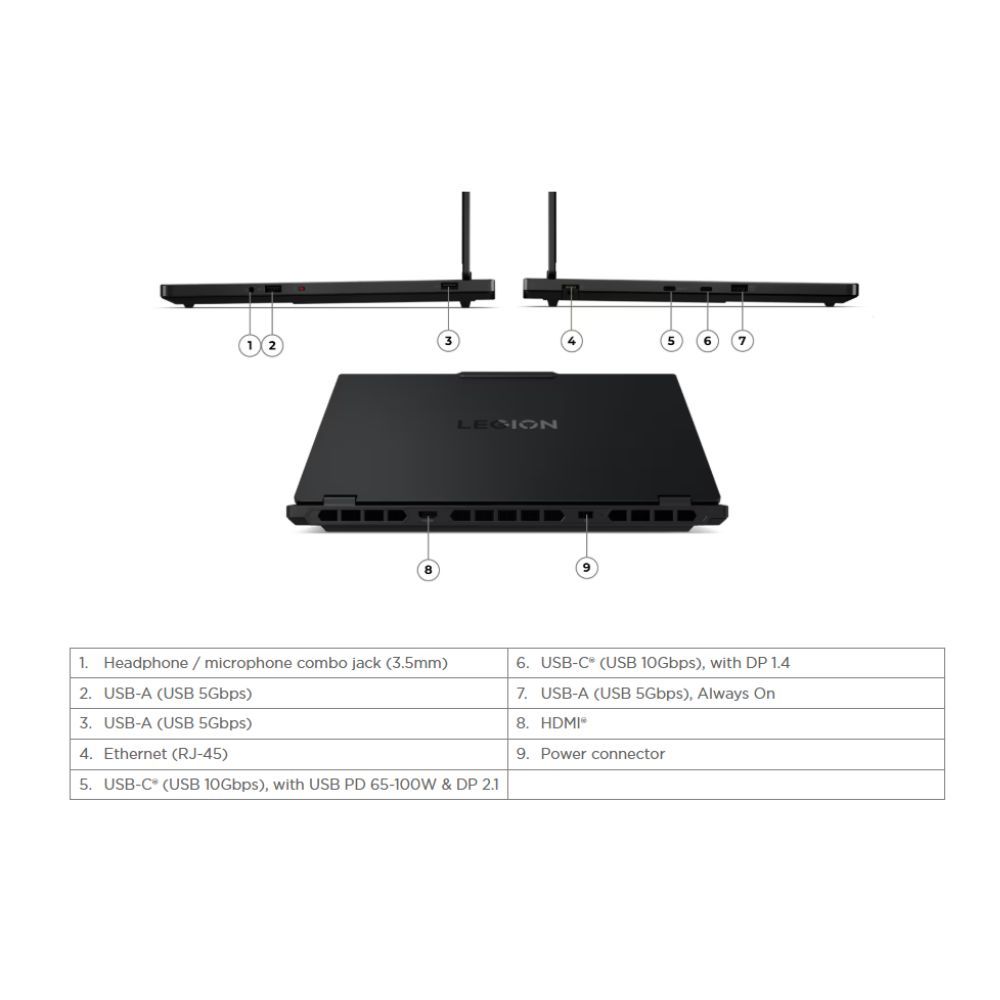

Standard Ports:2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1

1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4

1x HDMI® 2.1, up to 8K/60Hz

1x Headphone / microphone combo jack (3.5mm)

1x Ethernet (RJ-45)

1x Power connector

SECURITY & PRIVACY

Security Chip:Firmware TPM 2.0 Enabled

Fingerprint Reader:None

Other Security:E-shutter

SERVICE

Base Warranty:1-year, Courier or Carry-in

Included Upgrade:2Y Legion Ultimate Support -IPMAIN (ESS)

MODEL INFORMATION

Model:83LY00A2MJ

Machine Type:83LY

Region:ASEAN

Country/Region:Malaysia

TopSeller:Yes

EAN / UPC / JAN:199271165935

Announce Date:2025-05-26

End of Support:2057-02-07
