PERFORMANCE
Processor
Intel Core™ i3-1315U, 6C (2P + 4E) / 8T, P-core up to 4.5GHz, E-core up to 3.3GHz, 10MB Intel® Smart Cache
Graphics
Integrated Intel® UHD Graphics
Chipset
Intel® SoC Platform
Memory
1x 8GB SODIMM DDR5-5200
Memory Slots
Two DDR5 SODIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-5200
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Max Storage Support
Up to three drives, 1x 3.5" HDD + 2x M.2 SSD
• 3.5" HDD bay only for customer self upgrade
• M.2 SSD up to 1TB each
Card Reader
No Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC623-CG codec
24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback
24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs
Speakers
No speakers
Power Supply
180W 85%
DESIGN
Keyboard
USB Calliope Keyboard, Black, English
Mouse
USB Calliope Mouse, Black
Expansion Slots
One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Three M.2 slots (one for WLAN, two for SSD)
Case Color
Cloud Grey
System Fan
2x default
Pen
Pen Not Supported
Form Factor
SFF (8.2L)
Dimensions (WxDxH)
89 x 291.4 x 339.5mm (3.5 x 11.5 x 13.4 inches)
Weight
Around 3.59 kg (7.9 lbs)
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 6, 802.11ax 2x2 + BT5.2
WWAN
WWAN Not Supported
Ethernet
Integrated 100/1000M

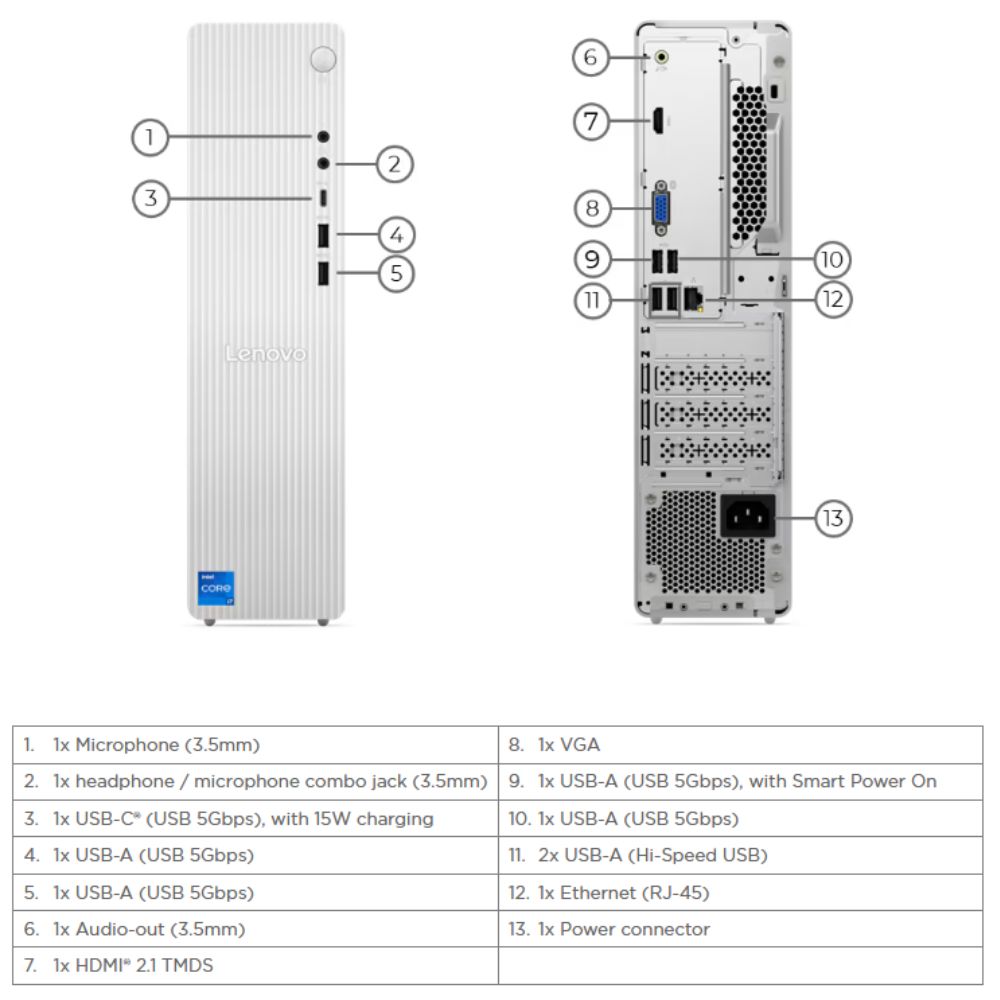

Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Rear Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On
2x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI® 2.1 TMDS
1x VGA
1x Ethernet (RJ-45)
1x audio-out (3.5mm)
1x power connector
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 integrated in SoC
MANAGEABILITY
System Management
None
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
3Y Premium Care - Idea DT (ESS)
CERTIFICATIONS
Green Certifications
ErP Lot 3
RoHS compliant
SOFTWARE
Operating System
Windows® 11 Home Single Language, Simplified Chinese / English
Bundled Software
Microsoft® 365 Basic + Office Home 2024
ACCESSORIES
Bundled Accessories
Vertical Stand
