IdeaCentre 3 07IAB7 (90SM0012MI)

PERFORMANCE

Processor : Intel Core i3-12100, 4C (4P + 0E) / 8T, P-core 3.3
/ 4.3GHz, 12MB

Graphics : Integrated Intel UHD Graphics 730

Chipset : Intel B660

Memory : 2x 4GB UDIMM DDR4-3200

Memory Slots : Two DDR4 UDIMM slots,
dual-channel capable

Max Memory : Up to 32GB DDR4-3200

Storage : 256GB SSD M.2 2280 PCIe 4.0x4 NVMe

Optane Memory : None

Storage Support : Up to two drives, 1x 3.5"
HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB

Card Reader : 7-in-1 Card Reader

Optical : None

Audio Chip : High Definition (HD) Audio, Realtek ALC623-CG codec

Power Supply : 260W 85%

DESIGN

Keyboard : USB Calliope Keyboard, Black, English

Mouse : USB Calliope Mouse, Black

Expansion Slots : Two M.2 slots (one for WLAN, one
for SSD)

Case Color : Mineral Grey

System Fan : None

Form Factor : SFF (7.4L)

Dimensions (WxDxH) : 100 x 303.5
x 274.8 mm (3.9 x 11.94 x 10.8 inches)

Weight : 6.25 kg (13.8 lbs)

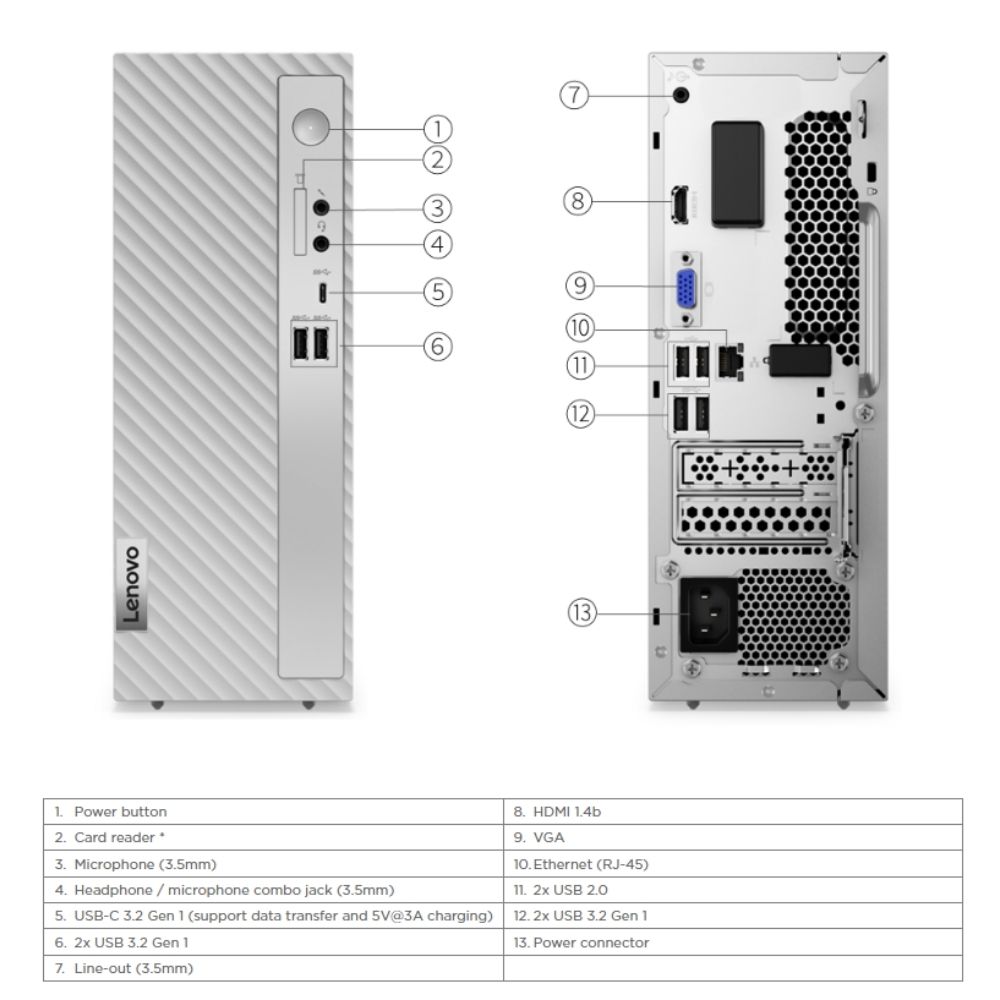

CONNECTIVITY

Ethernet : Integrated 100/1000M

WLAN + Bluetooth : 11ac, 2x2 + BT5.0

·
Front Ports : 2x USB 3.2 Gen 1

·
1x USB-C 3.2 Gen 1 (support data transfer and 5V@3A
charging)

·
1x card reader

·
1x headphone / microphone combo jack (3.5mm)

·
1x microphone (3.5mm)

·
Rear Ports : 2x USB 2.0

·
2x USB 3.2 Gen 1

·
1x VGA

·
1x HDMI 1.4

·
1x Ethernet (RJ-45)

·
1x power connector

SECURITY
& PRIVACY

Security Chip : Firmware TPM 2.0 integrated in
chipset

SERVICE

Base Warranty : 3 Years Warranty
