True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound
Immerse yourself in theater-quality 3D sound. With two up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1000 delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience.
Real surround sound with detachable surround speakers
Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.
Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.
880W output power
With 880 watts of total system power the JBL Bar 1000 transforms your movies, music and games into immersive sound experiences and pulls you into the middle of the action.
10" Wireless subwoofer
Thrilling, precise bass from a mighty 10" wireless subwoofer brings the excitement to your action movies and the emotion to your music.
PureVoice Dialogue Enhancement Technology
PureVoice technology uses our unique algorithm to optimize voice clarity to ensure you never miss a word of dialogue, even when the surround effects are at their peak.
HDMI eARC with 4K Dolby Vision passthrough
Enjoy uncompressed Dolby Atmos surround sound through a single HDMI cable thanks to the HDMI eARC connection. The three HDMI input connections also offers 4K video quality from a compatible video player or gaming console.
JBL One App
Customize EQ and control all of your compatible speakers with a single convenient app. The JBL One app helps you easily set up the soundbar, personalize settings, and browse the integrated music services to find your new favorite song.
Easy sound calibration
Every room is different. Our calibration feature ensures that the JBL Bar 1000 delivers the best 3D surround effects for any interior and room layout.
Works with voice assistant-enabled speakers
Simply link the JBL Bar 1000 with your voice assistant-enabled device and you can instantly ask Alexa, Google Assistant, or Siri to stream all your favorite music to the soundbar.
General Specifications
Model: BAR 1000
Sound system: 7.1.4 channel
Power supply: 100 - 240V AC, ~ 50/60Hz
Networked standby power: < 2.0W
Operating temperature: 0°C - 45°C
Audio Specifications
Total speaker power output (Max @THD 1%): 880W
Soundbar output power (Max @THD 1%): 440W
Surround speaker output power (Max @THD 1%): 2x 70W
Subwoofer output power (Max. @THD 1%): 300 W
Soundbar transducer: 5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers
Surround speaker transducer: 0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers
Subwoofer transducer: 10” (260mm)
Frequency response: 33Hz - 20kHz (-6dB)
Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Total soundbar dimensions (W x H x D): 1194 x 56 x 125mm / 47" x 2.2" x 4.9"
Main soundbar dimensions (W x H x D): 884 x 56 x 125 mm / 34.8" x 2.2" x 4.9"
Detachable surround speaker dimensions (each) (W x H x D): 155 x 56 x 125 mm / 6.1" x 2.2" x 4.9"
Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12" x 17.3" x 12"
Soundbar weight: 3.7 kg / 8.2 lbs
Detachable surround speaker weight (each): 1.4kg / 3.1 lbs
Subwoofer weight: 10 kg / 22 lbs
Packaging dimensions (W x H x D): 1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"
Packaging Weight: 19.4 kg / 42.7 lbs
Control and Connection Specifications
USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file format: MP3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16 - 48 kHz
MP3 bitrate: 80 - 320 kpbs
Bluetooth version: 5.0
Bluetooth profile: A2DP 1.2, AVRCP 1.5
Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz
Bluetooth transmitter power: <15dBm (EIRP)
Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
2.4G Wi-Fi transmitter power: < 20dBm (EIRP)
5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless frequency range: 2406 - 2474MHz
2.4G wireless power: 10dBm (EIRP)
Battery
Lithium battery: 3.635V, 3283mAh

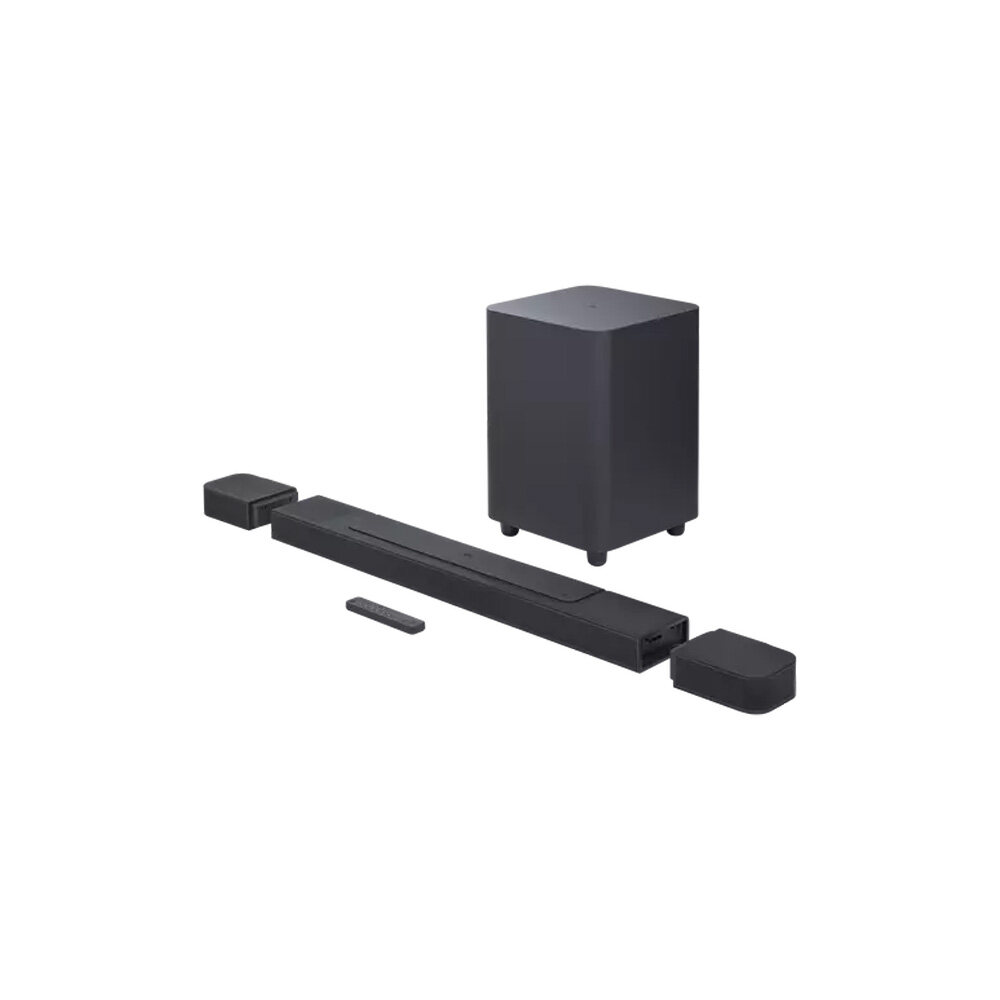

What's in the box?
1x Main soundbar
2x Detachable wireless surround speakers
1x Wireless subwoofer
Remote control with 2 x batteries
Power cords (up to 8pcs depending on region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
4 x Side caps
Quick start guide
Safety instruction and Warranty card
Wall mount template
| Brand | JBL |
|---|---|
| Category | Audio > Speaker |
| Product Condition | New |
| Gaming Focused | No |
| Speakers Type | Home Audio |
| Connection Type | Wireless, Bluetooth |
| Input Connectivity | Wireless |
| WiFi | Yes |
| Speakerphone | No |
| Controls / Buttons | Yes |
| Rechargeable | No |
| Voice Assistant | No |
| Water-Resistant | No |
| Dust-resistant | No |
| Warranty Period | 1 Year |
| Dimension | 0.00 cm x 0.00 cm x 0.00 cm |
