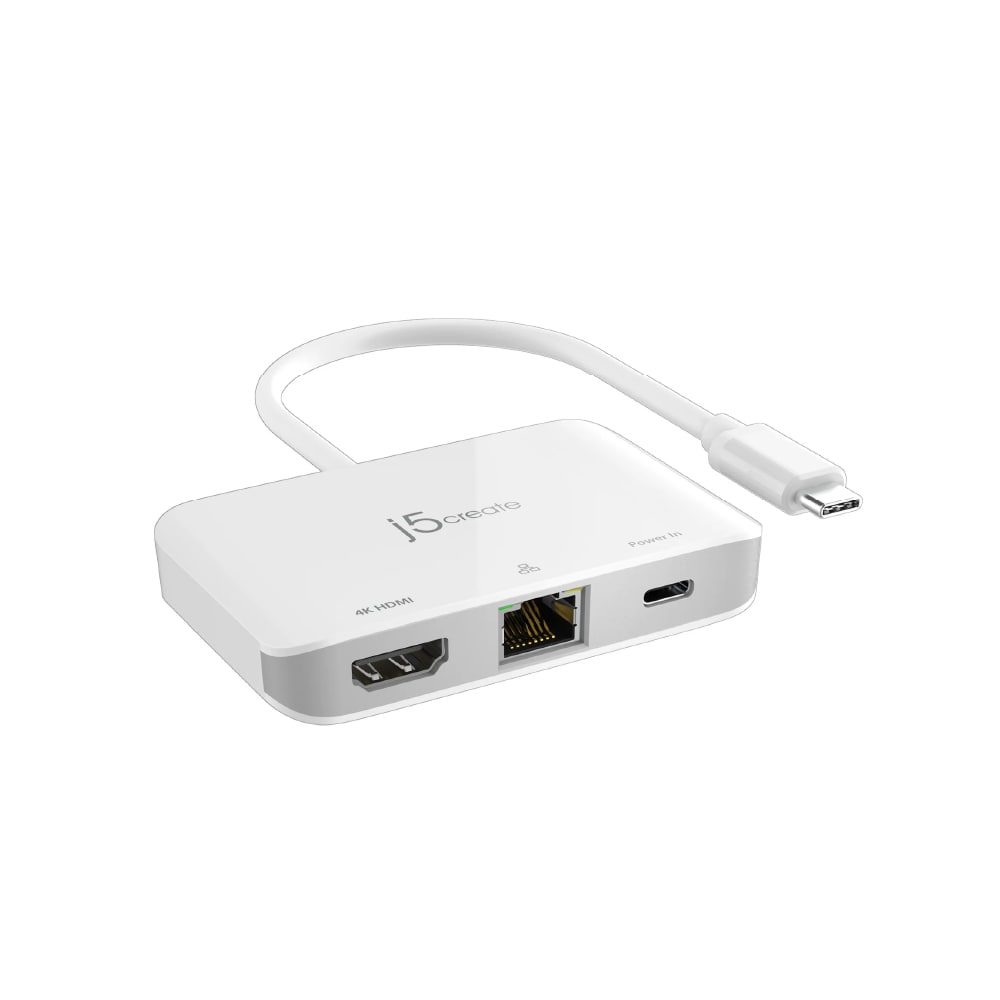

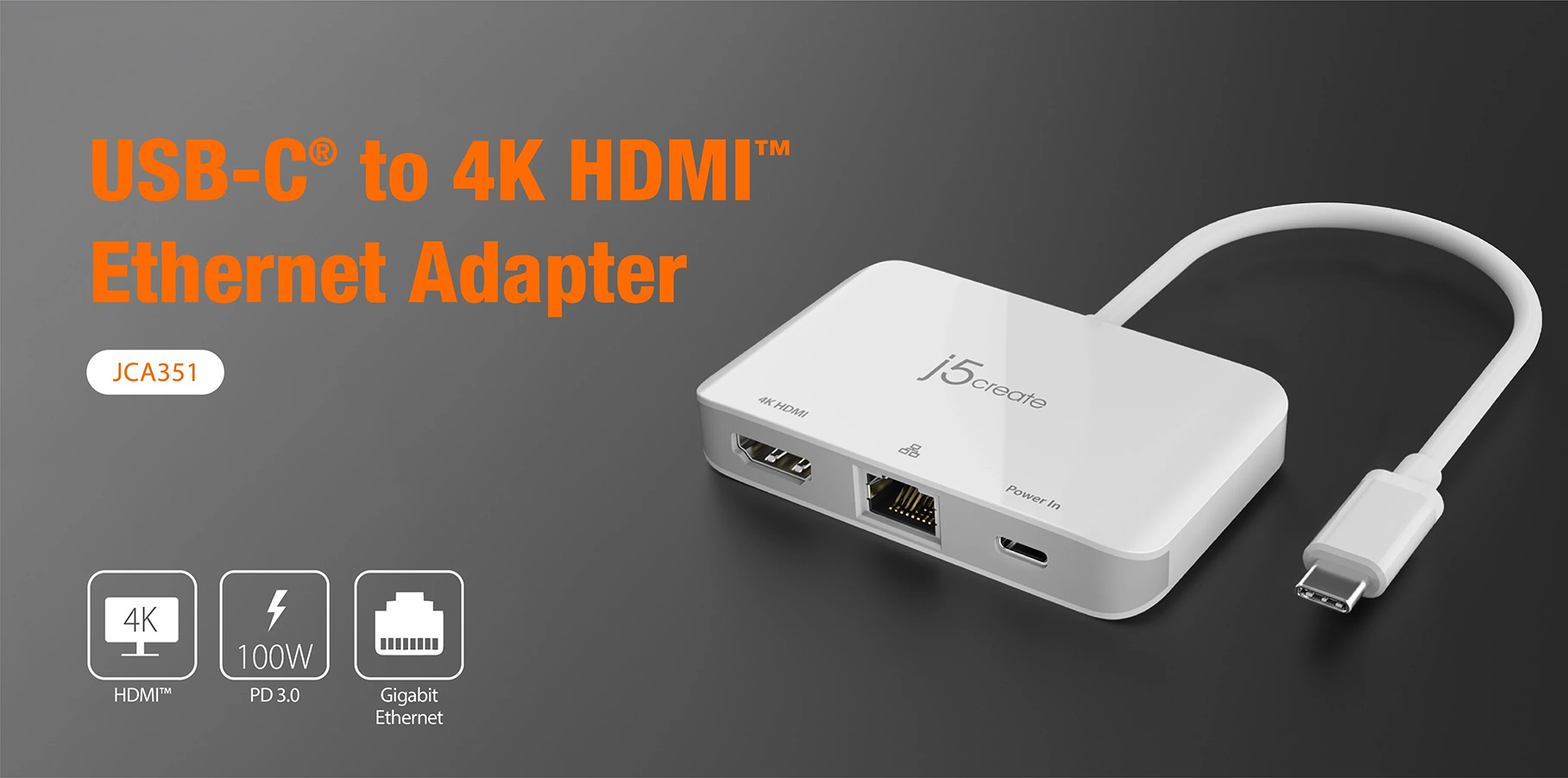

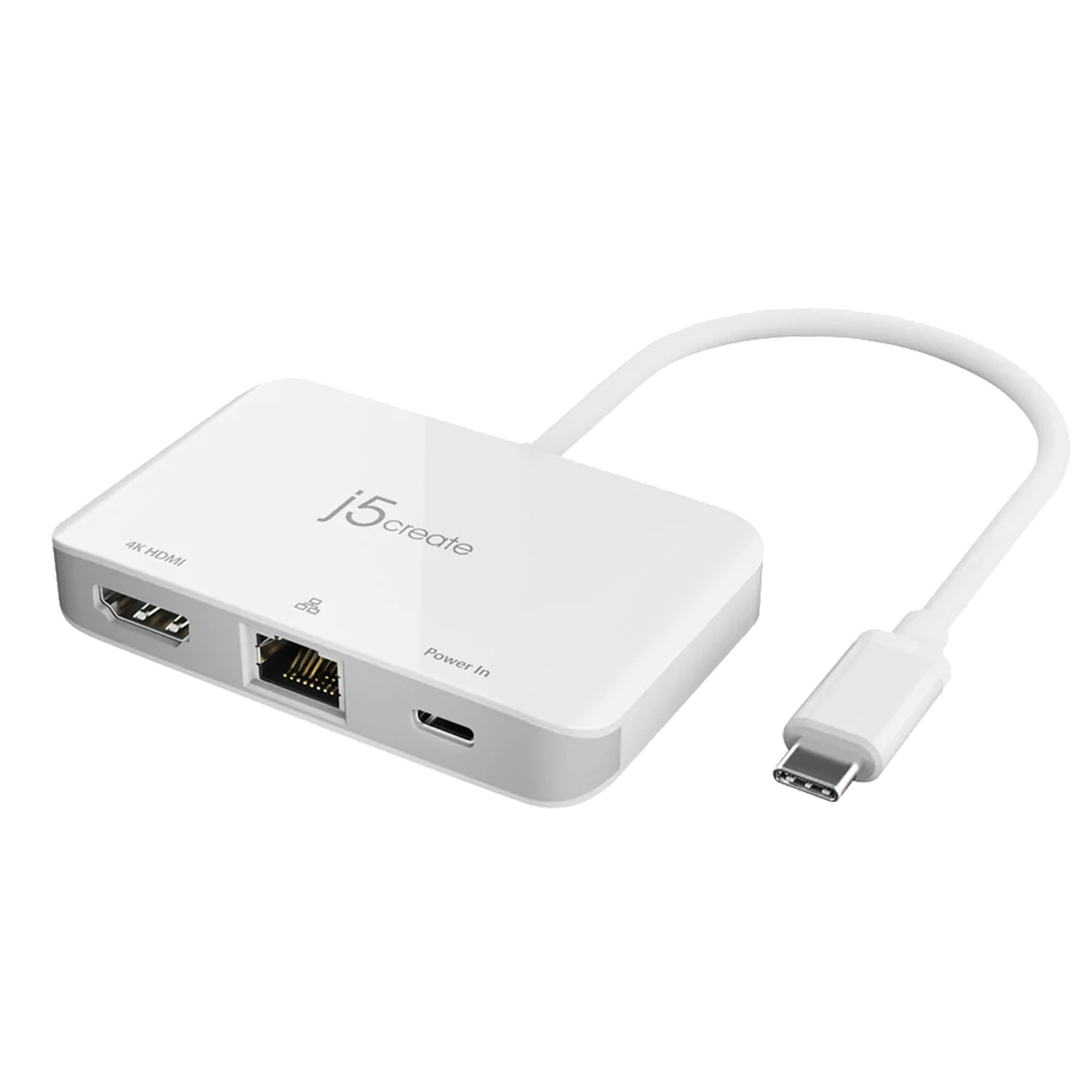

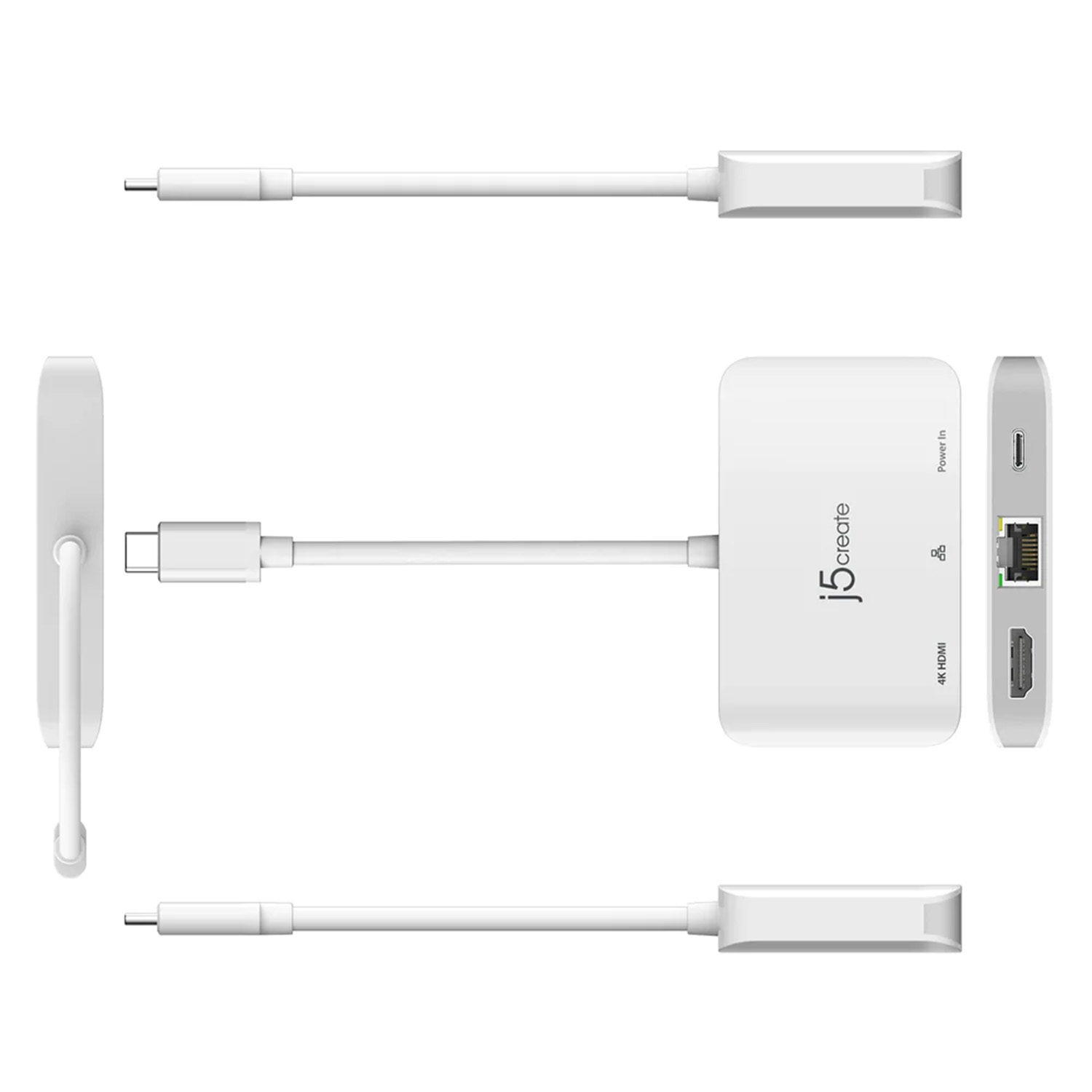

J5Create JCA351 Type C to 4K HDMI + Ethernet (2 Years Warranty)

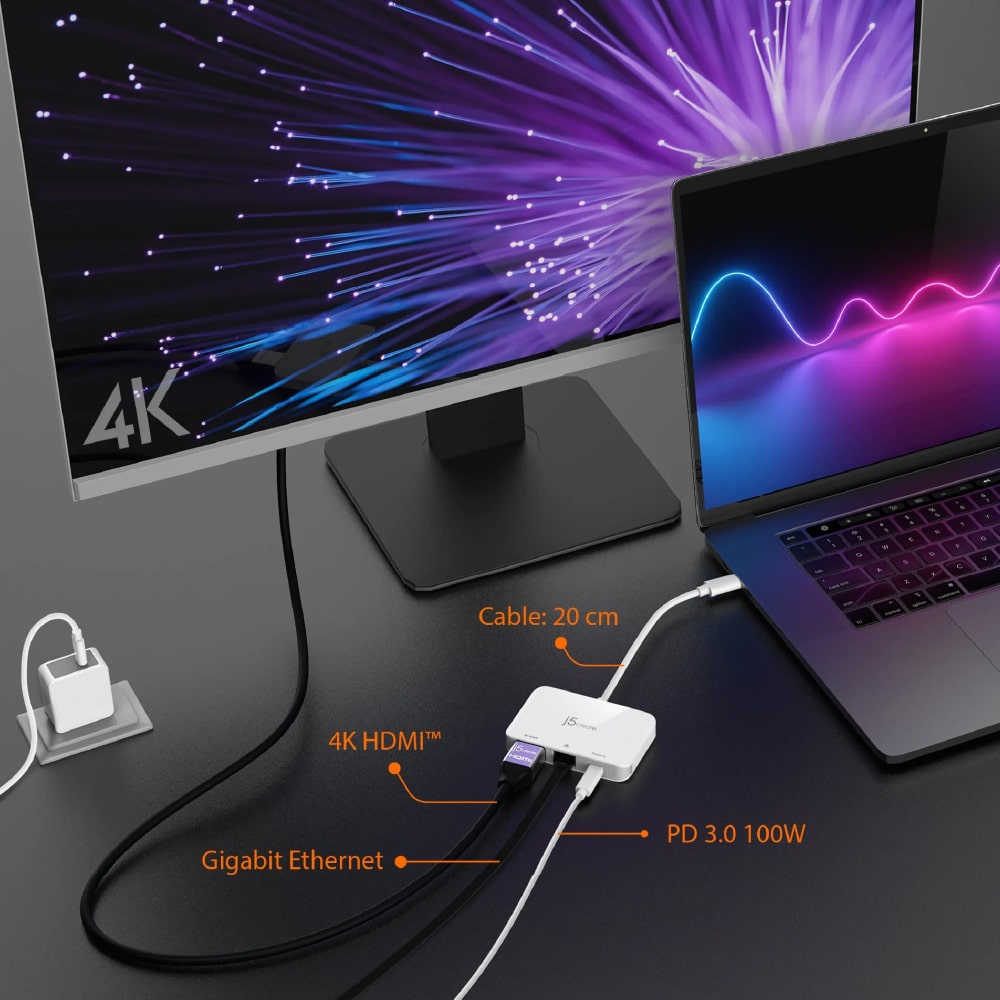

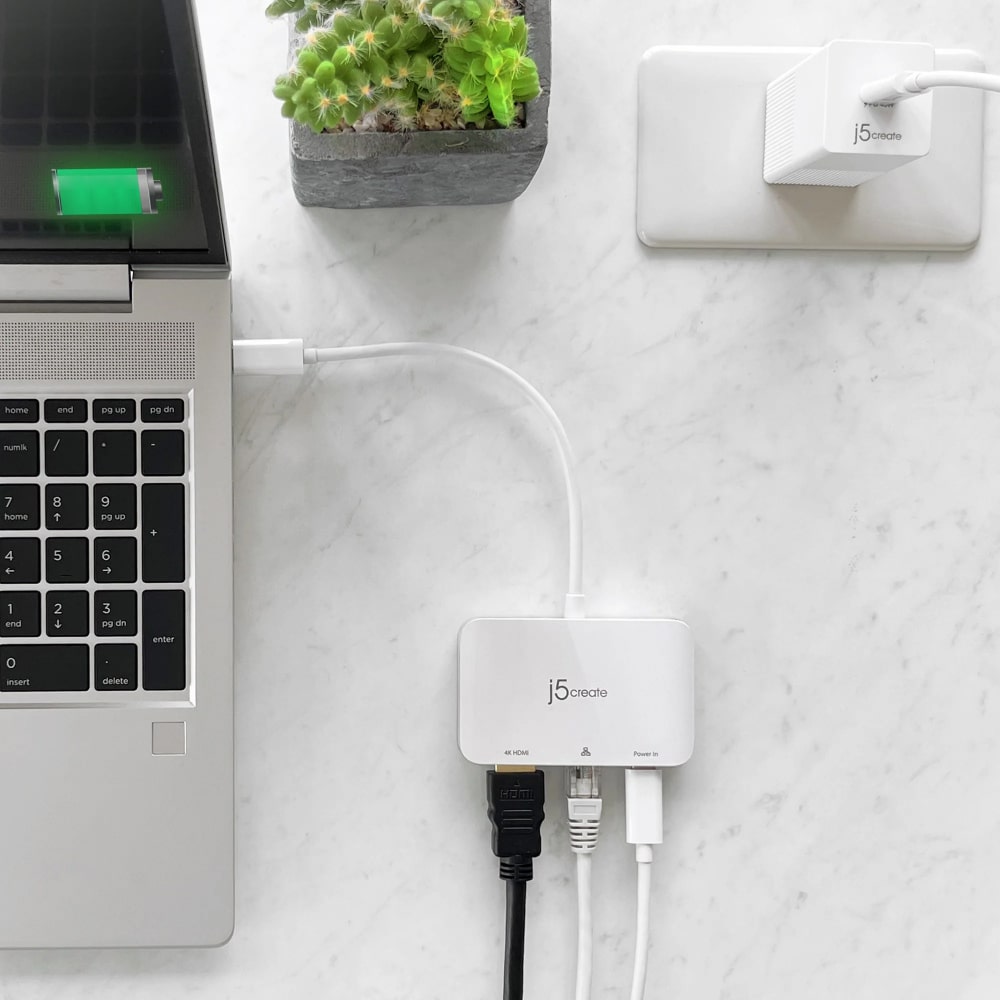

Add extra functionality to your laptop with the JCA351 USB-C® to 4K HDMI™ Ethernet Adapter. This adapter allows you to add an additional 4K HDMI™ monitor, connect to a Gigabit Ethernet network, and includes a USB-C® Power Delivery port that can be used to charge your laptop when a USB-C® power adapter is connected.

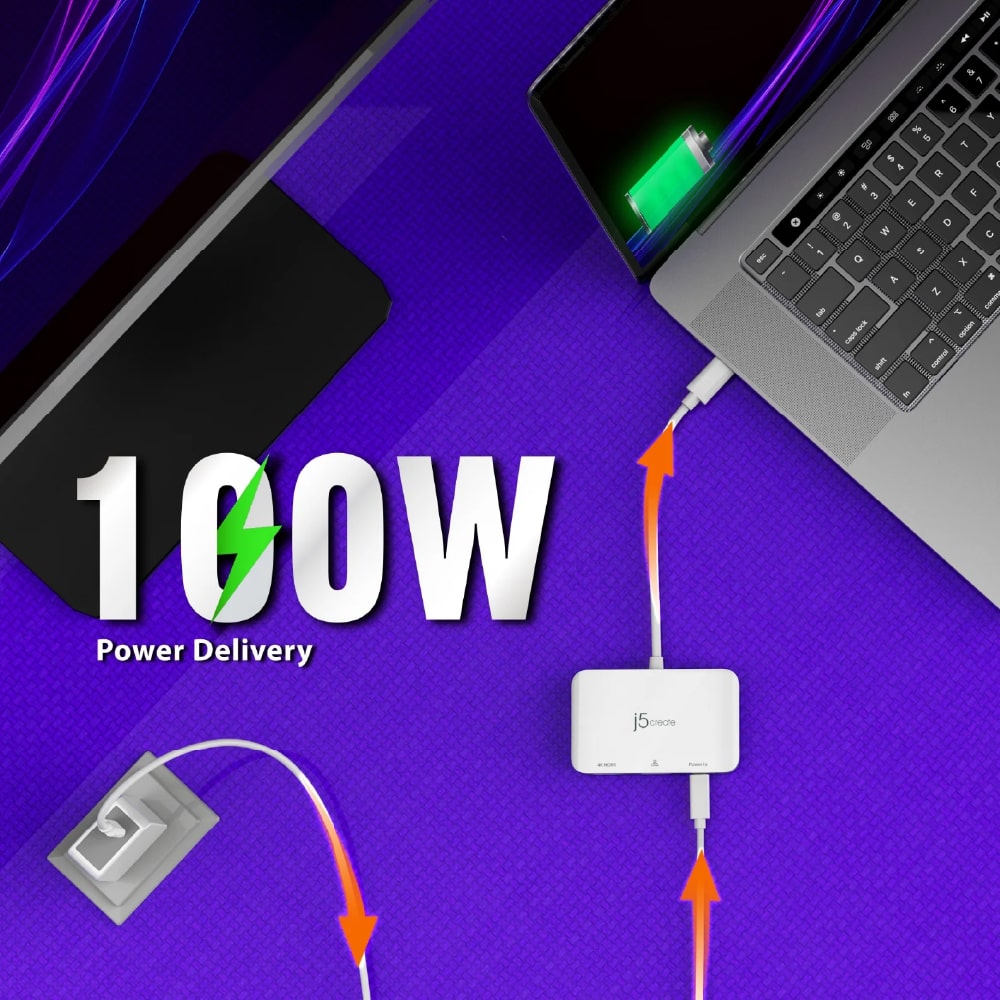

Display Alt Mode for HDMI™ supports a resolution up to 4K with Primary, Extended, and Mirrored display modes. The JCA351 supports upstream charging and Power Delivery 3.0 100W to keep your connected laptop powered up while in use.
Features
• Plug and play – No software or drivers required
• Power delivery 3.0 provides up to 100W of power passthrough
• Reversible and symmetrical USB-C® connector
• DisplayPort™ Alt Mode for HDMI™
• Supports up to 4K resolution

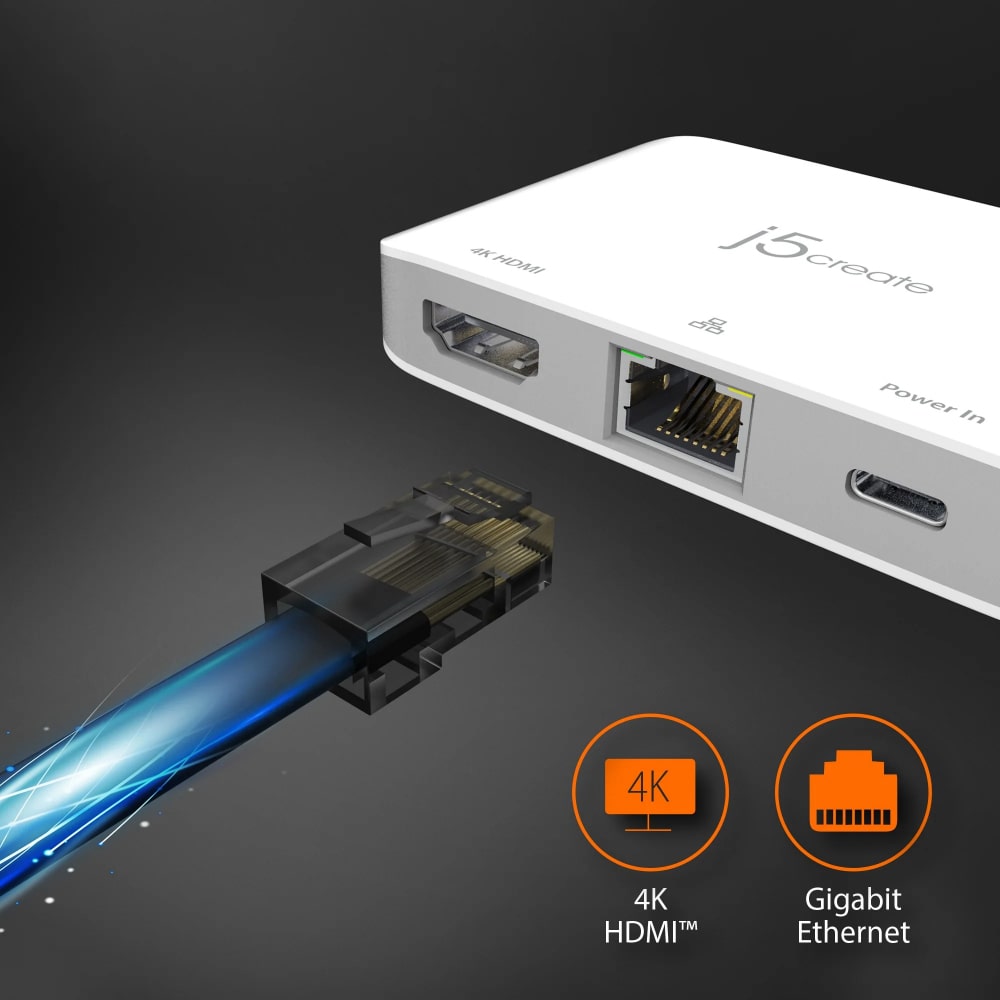

• Reliable network connectivity via the Gigabit Ethernet port
System Requirements
• Available DisplayPort™ Alternate Mode over USB-C® connector required.
• DisplayPort™ v1.2 is required on the graphics card or video source to support 4K @ 30 Hz resolution.
• Available USB-C® port (USB™ 3.1 is recommended) with support for USB™ Power Delivery and DisplayPort™ Alternate Mode to ensure proper functionality.

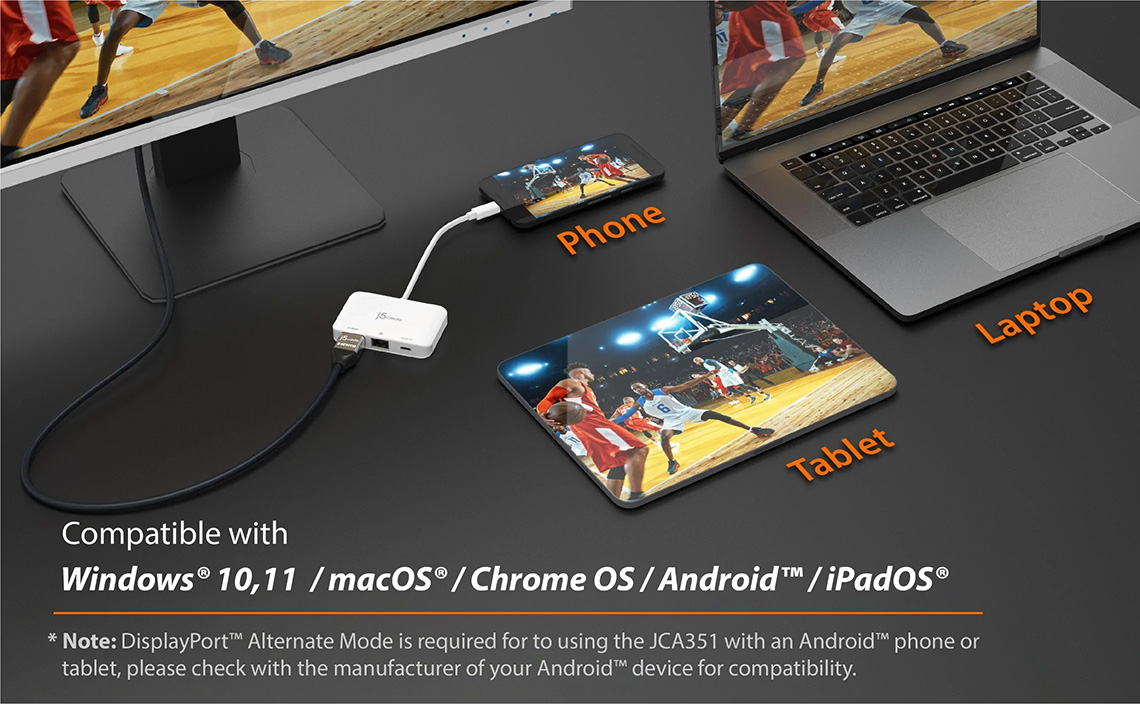

• Windows® 11,10 / macOS® / Chrome OS™
*HARDWARE*
Warranty
• 2 Year Limited
Host Connector
• USB-C®
Video Output
• HDMI™
Power Source
• Bus-Powered, Self-powered
Audio Supported
• Yes
USB™ Pass-Through
• N/A

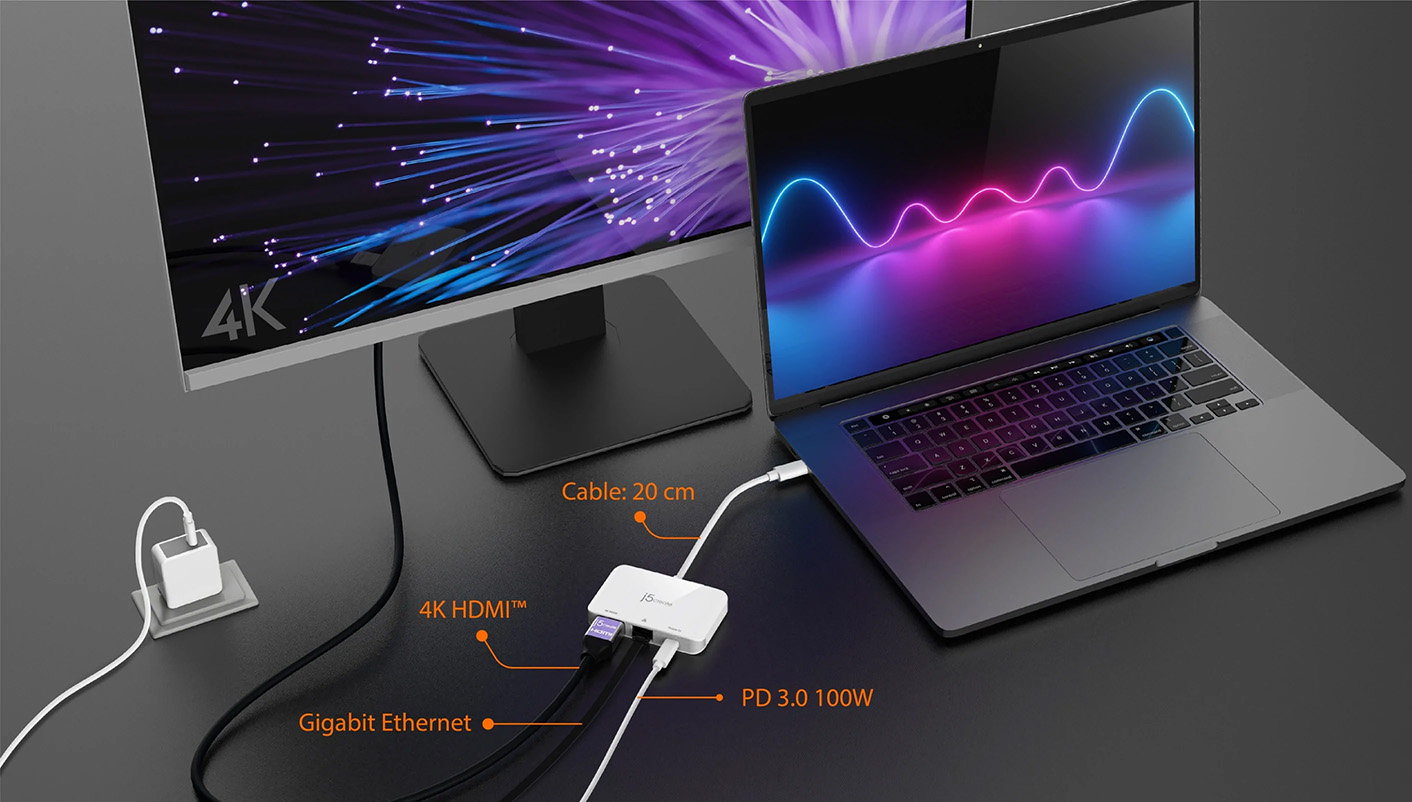

Ports
• 1 – USB-C® PD for upstream charging
• 1 – 4K HDMI™ Output
• 1 – Gigabit Ethernet
*PERFORMANCE*
Maximum Display Resolution
• 3840 x 2160
Maximum Display Refresh Rate
• 30 Hz
Maximum Data Transfer Rate
• N/A
Displays Supported
• 1
Audio Channel
• 2.1 via HDMI™
*POWER*
Power Delivery
• N/A
Power Consumption
• N/A
PD Input Current
• Up to 20V
PD Input Voltage
• Up to 5A
PD Output Current
• Up to 20V
PD Output Voltage
• Up to 4.5A
*PHYSICAL SPECIFICATIONS*
Color
• White
Enclosure Type
• ABS Plastic
Cable Length
• 7.87 in. (20 cm)
Product Height
• 1.96 in. (50 mm)
Product Width
• 3.14 in. (80 mm)
Product Depth
• 0.55 in. (14 mm)
Product Weight
• 1.83 oz (52g)
Storage Temperature
• 14 to 140°F (-10 to 65°C)
Storage Humidity
• < 85% non-condensing
Operating Temperature
• 32 to 118°F (0 to 47°C)
Operating Humidity
• < 85% non-condensing
