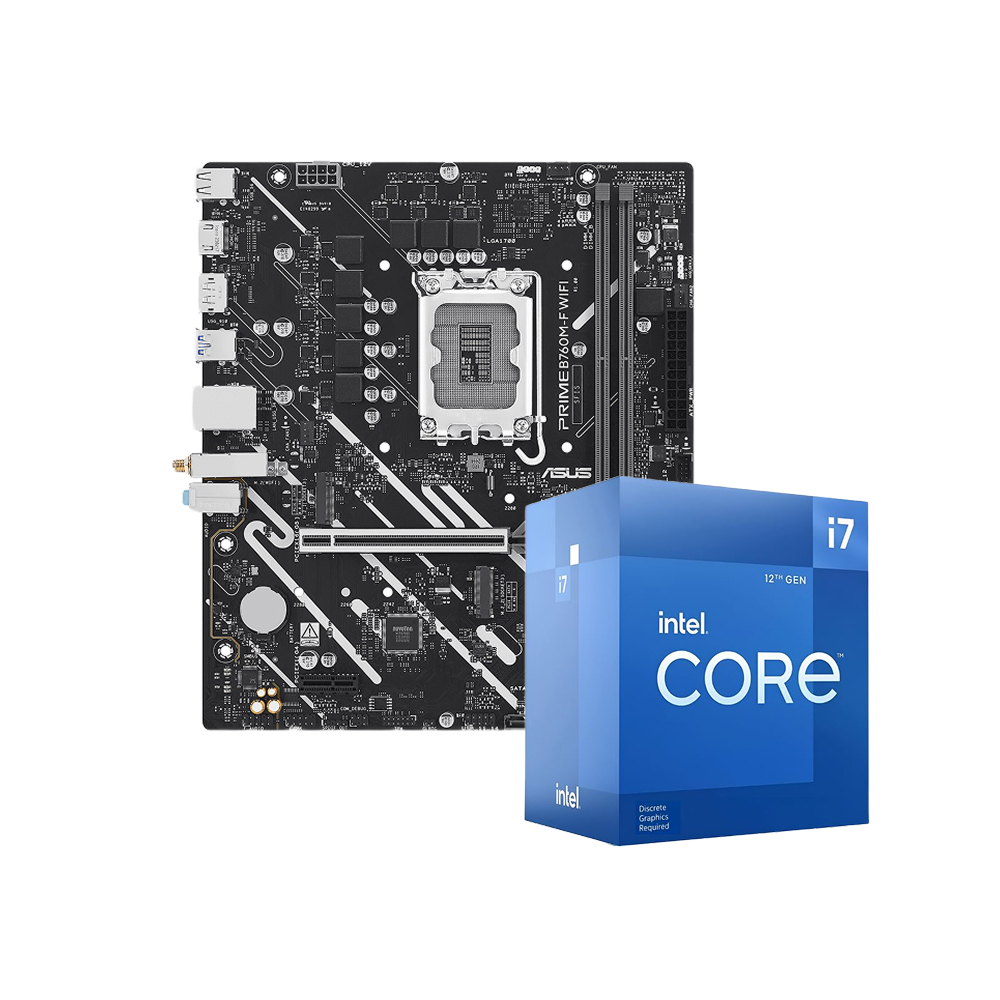

CPU ModelIntel Core i7-12700F (12th Gen)

CPU SocketLGA 1700

Manufacturing Process10 nm

Maximum CPU Configuration1S

Maximum Number of PCIe Lanes16 (Revision 5.0)

4 (Revision 4.0)

UnlockedNo

Performance

Number of Cores12 (8 x P-Cores + 4 x E-Cores)

Number of Threads20

Base Clock SpeedP-Core: 2.1 GHz

E-Core: 1.6 GHz

Maximum Boost Speed4.9 GHz

P-Core Turbo: 4.8 GHz

E-Core Turbo: 3.6 GHz

L3 Cache25 MB

Memory Support

Maximum Capacity128 GB

Memory SupportDDR4 Up to 3200 MHz

DDR5 Up to 4800 MHz

ECC MemoryNo

Channel ArchitectureDual Channel

Maximum Memory Bandwidth76.8 GB/s

Optane Memory SupportYes

Power

Thermal Design Power (TDP)65 W

Included Thermal SolutionIntel Laminar RM1 (180 W)

Maximum Temperature212°F / 100°C

Thermal Monitoring TechnologiesYes

Technology

AES SupportYes

ExtensionAVX 2.0, AVX-512, SSE 4.1/4.2

Instruction Set64-Bit

VirtualizationYes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)

DMIDMI4 (16 GT/s)

vPro SupportYes

Performance TechnologiesDeep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, Turbo Boost 2.0, Turbo Boost Max 3.0

Security TechnologiesControl-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key

Integrated Graphics

Integrated GraphicsNone

Packaging Info

Package Weight1.015 lb

Box Dimensions (LxWxH)5.2 x 4.8 x 3.1"
