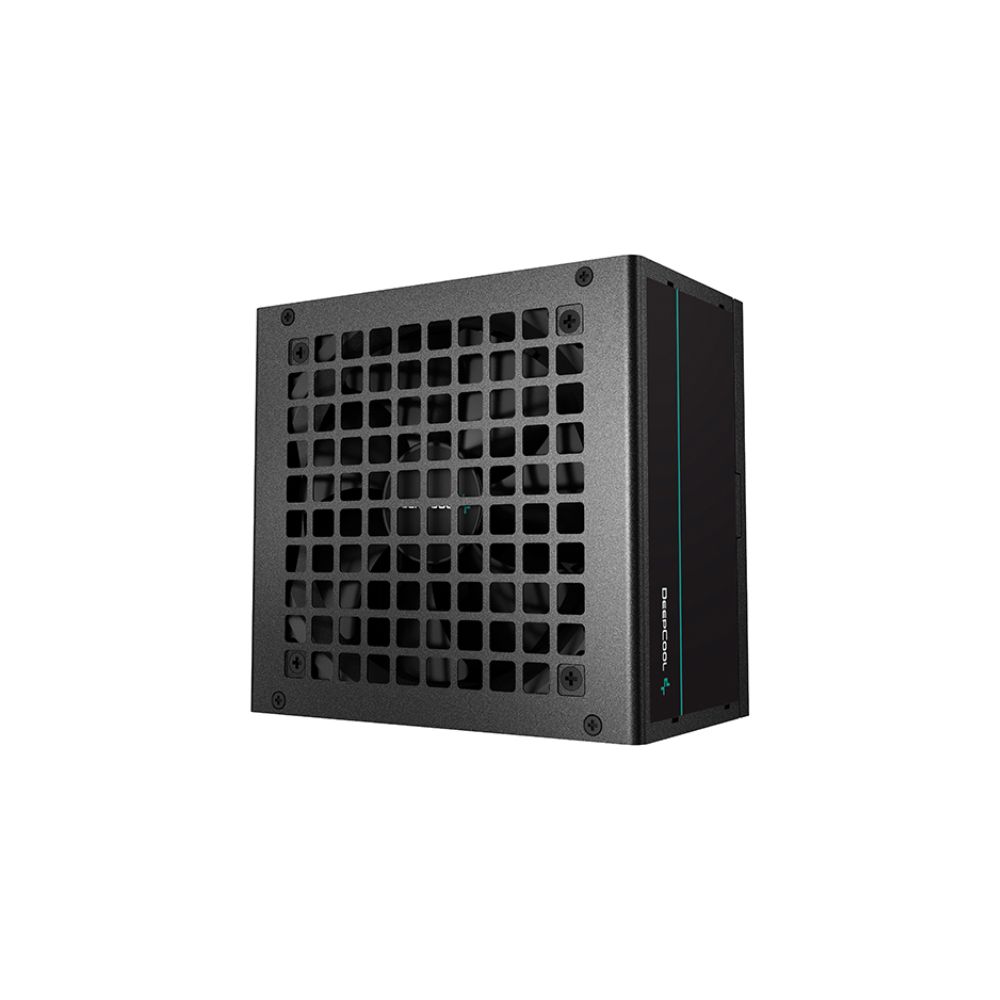

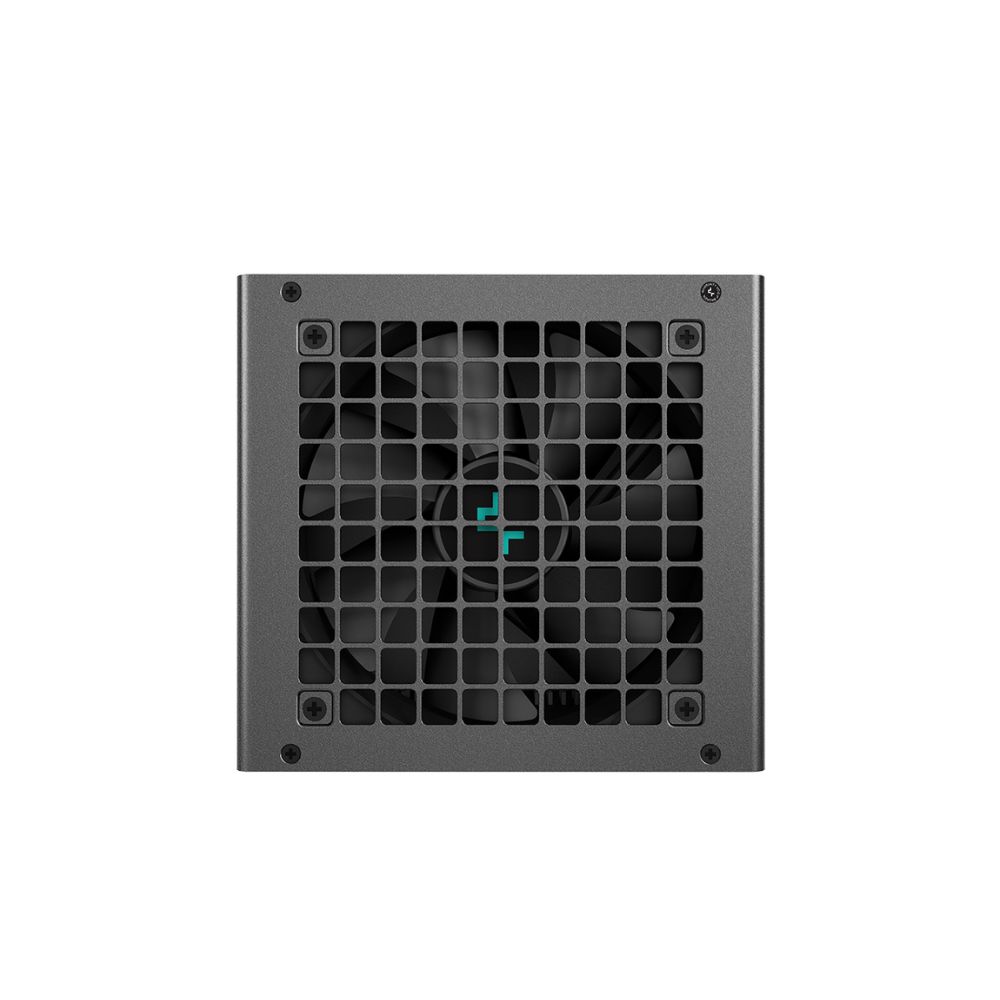

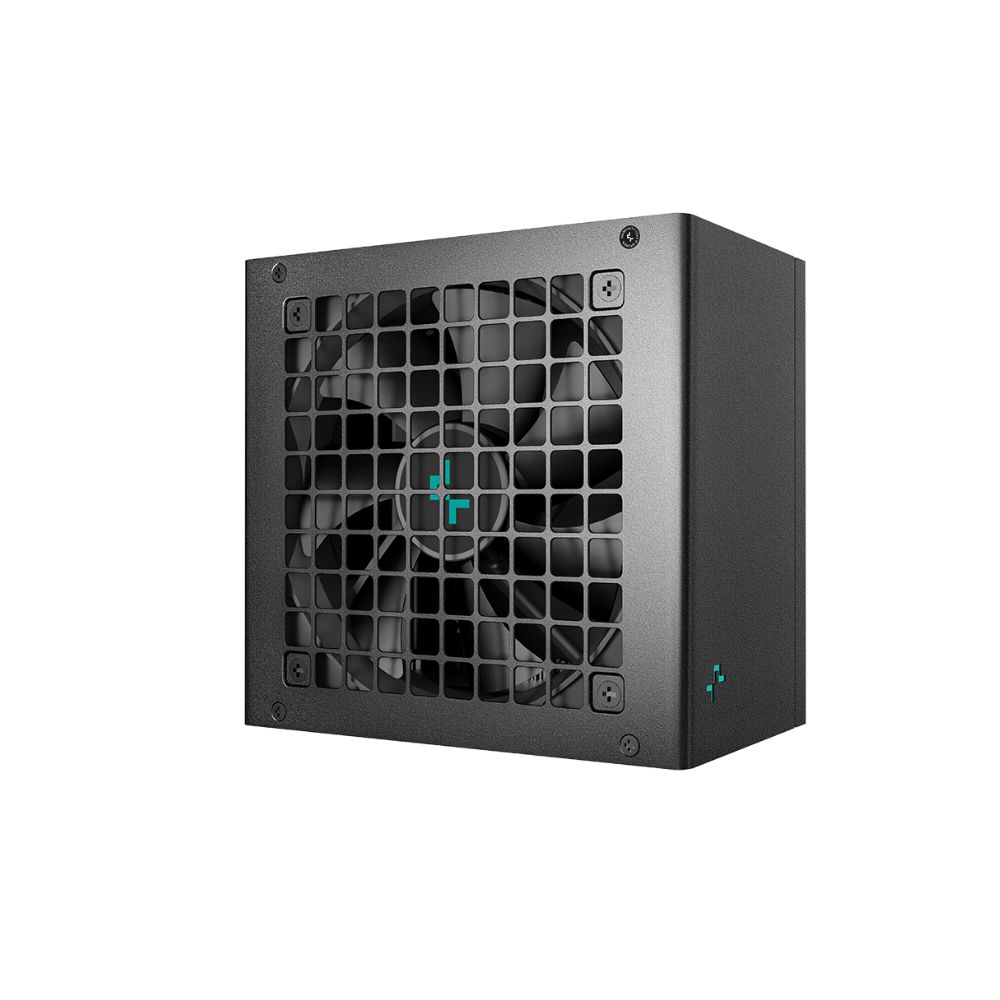

All Deepcool Power Supply PN Series:

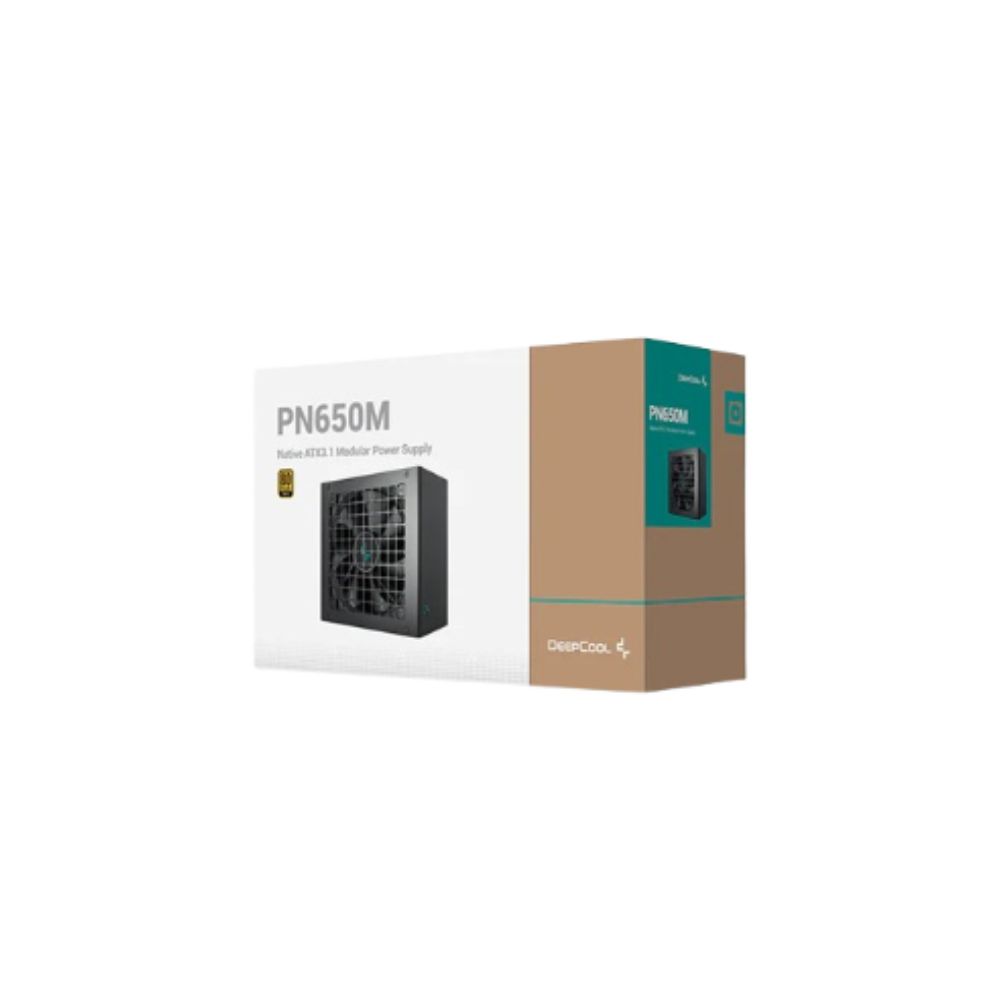

PN650M comes with 650W and 80PLUS GOLD Full Modular
PN750M comes 750W and 80PLUS GOLD Full Modular

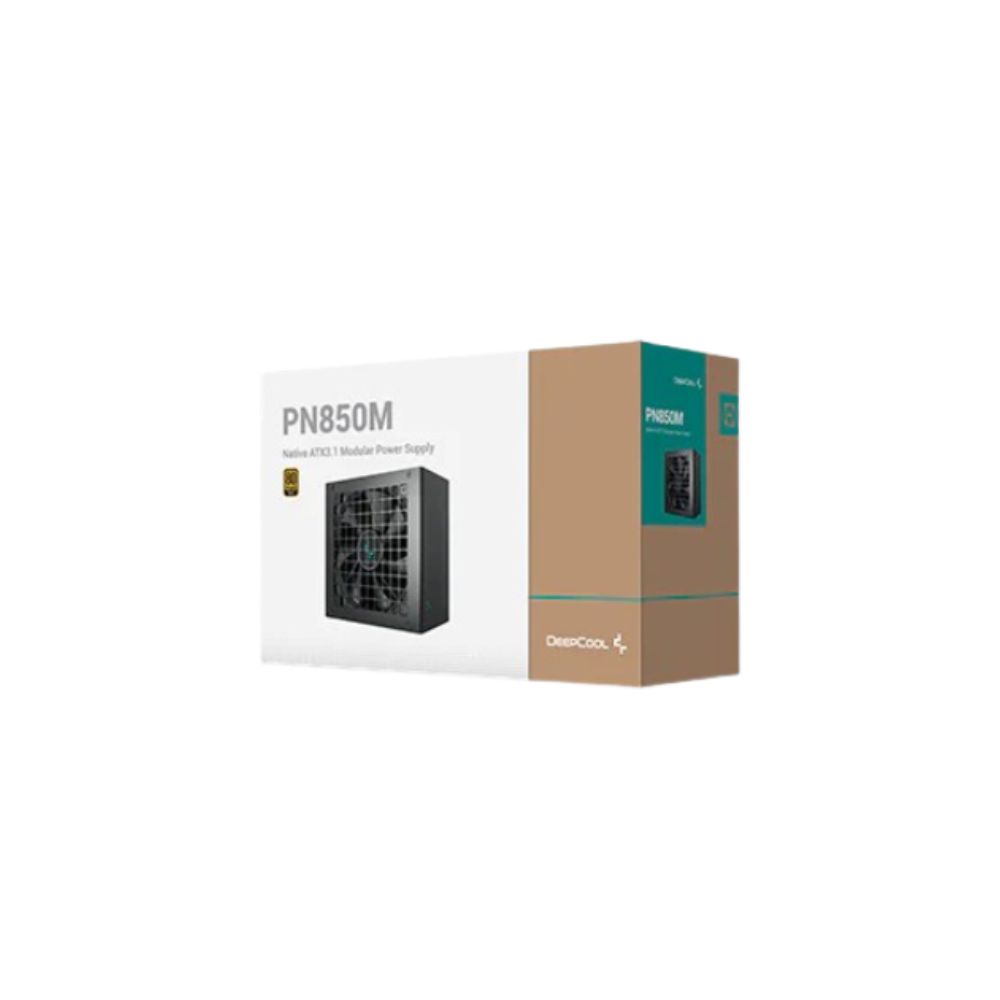

PN850M comes 850W and 80PLUS GOLD Full Modular
FUTURE PROOF
-With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN650M/PN750M/PN850M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
POWER YOU CAN TRUST

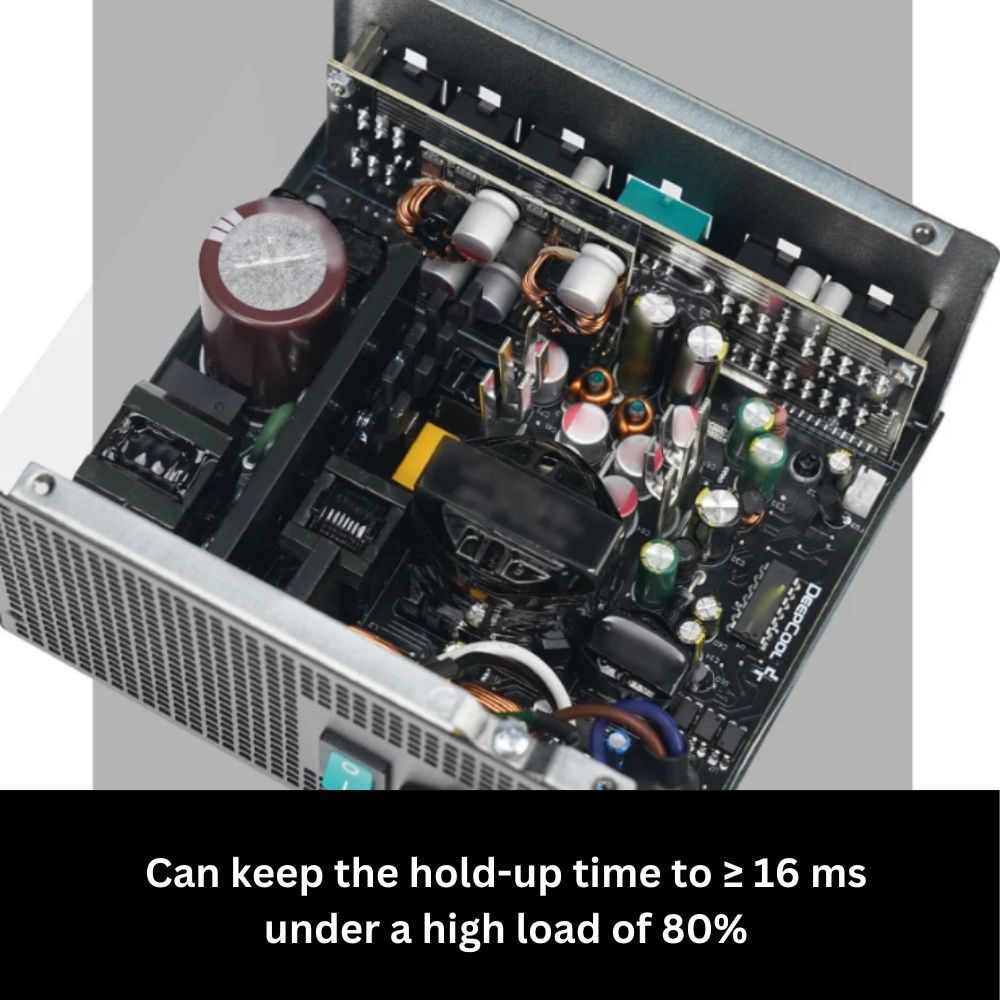

-Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650M/PN750M/PN850M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER

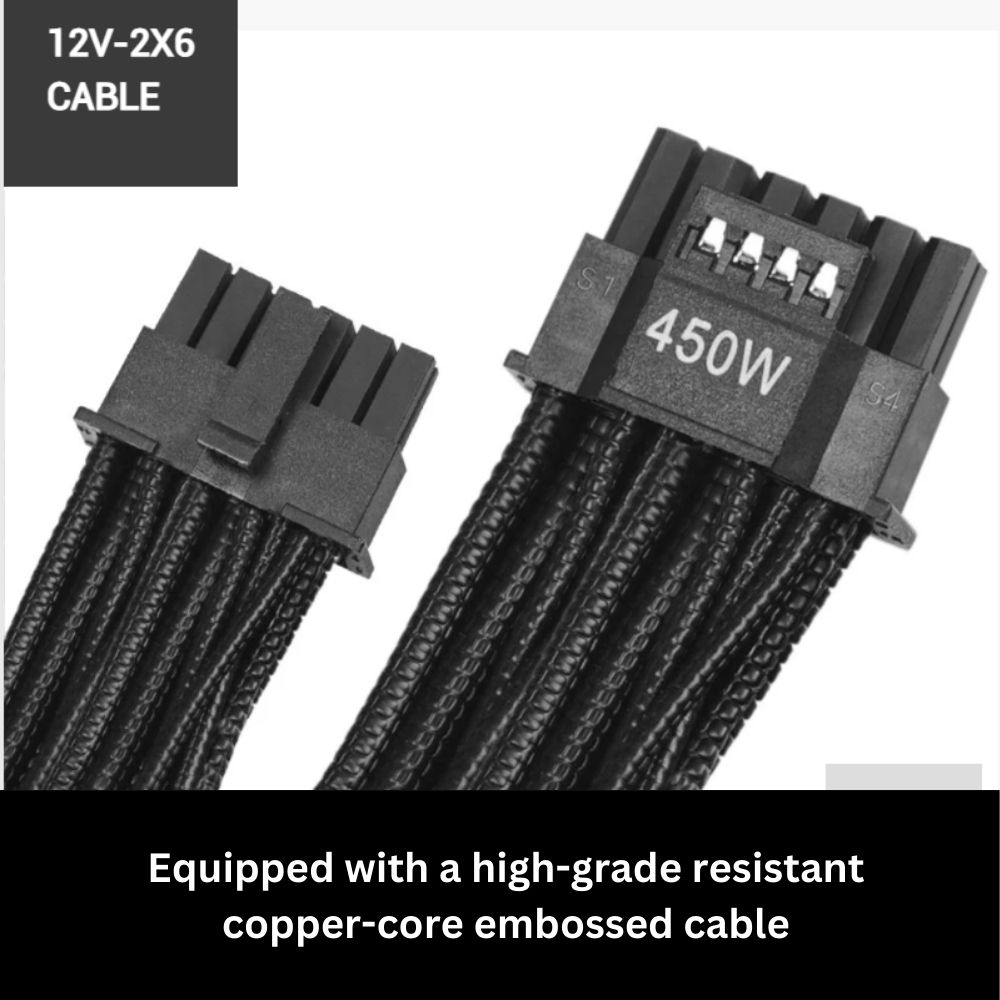

-Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN650M/PN750M/PN850M provides up to 450W for modern GPUs.
SLEEVED CABLES
-The PN650M/PN750M/PN850M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
DYNAMIC FDB FAN

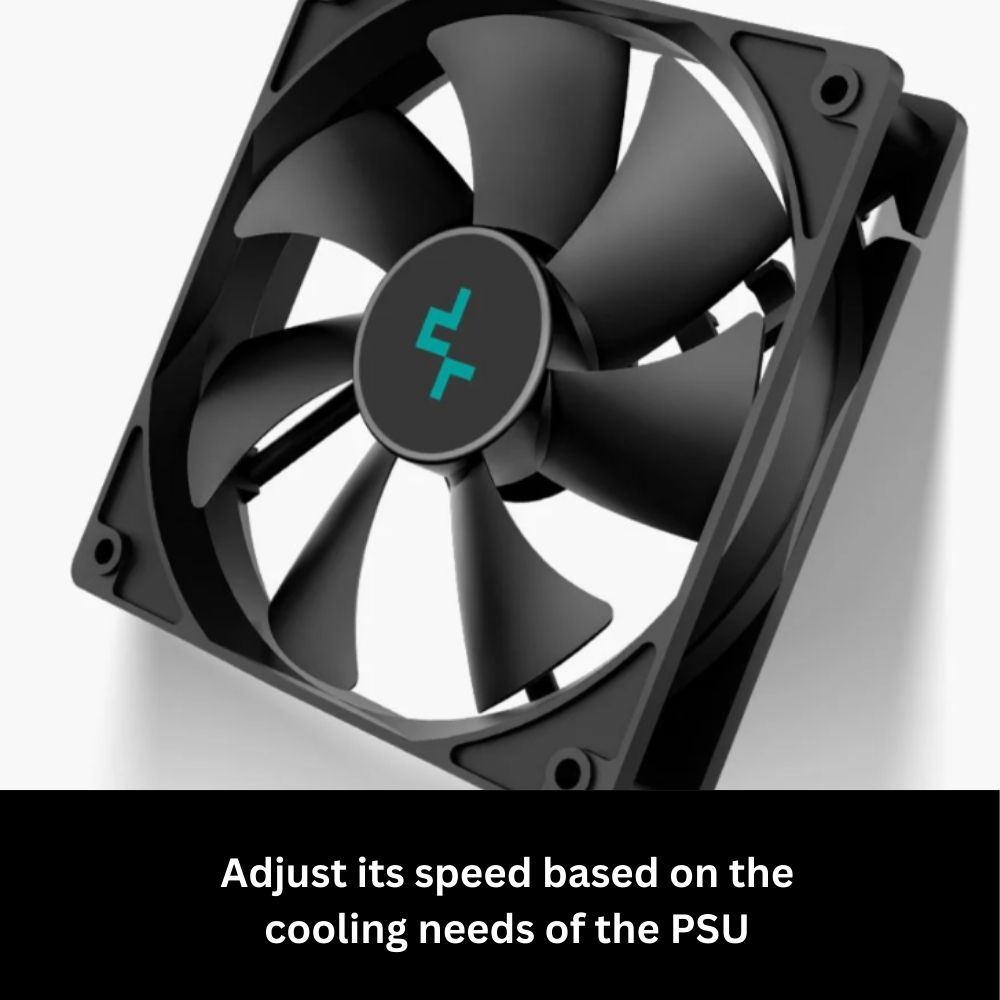

-The PN650M/PN750M/PN850M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
Type: ATX12V V3.1
Product Dimensions: 150×140×86mm (W x L x H)
Efficiency certification: 80Plus Gold
Fan Size: 120mm
Fan Bearing: FDB (Fluid Dynamic Bearing)
Topology: Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors: Japanese Bulk Capacitor
Power Good Signal: 100-150ms
Hold Up Time: ≥16ms(80% Load)
Efficiency: ≥90% Under Typical Load(50% Loading)
Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature: 0 - 40?
Regulatory: CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH
MTBF: 100,000 Hours
