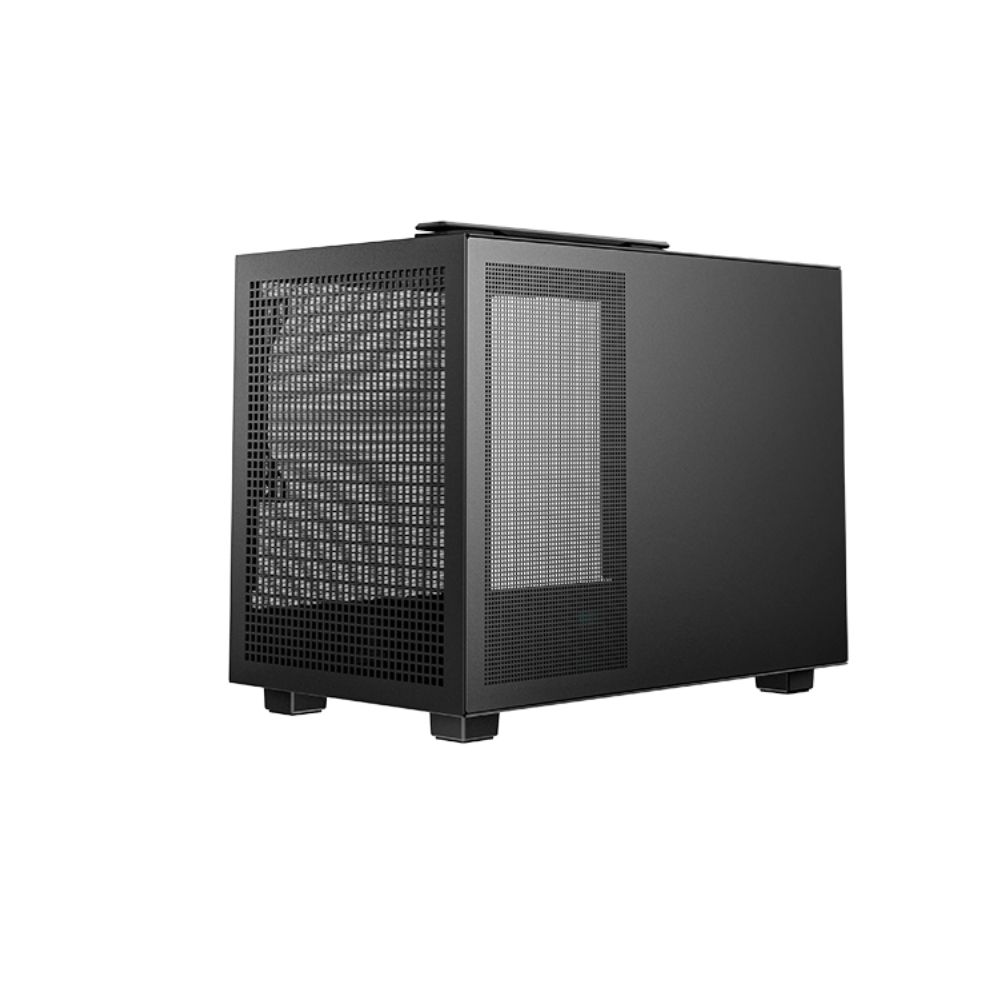

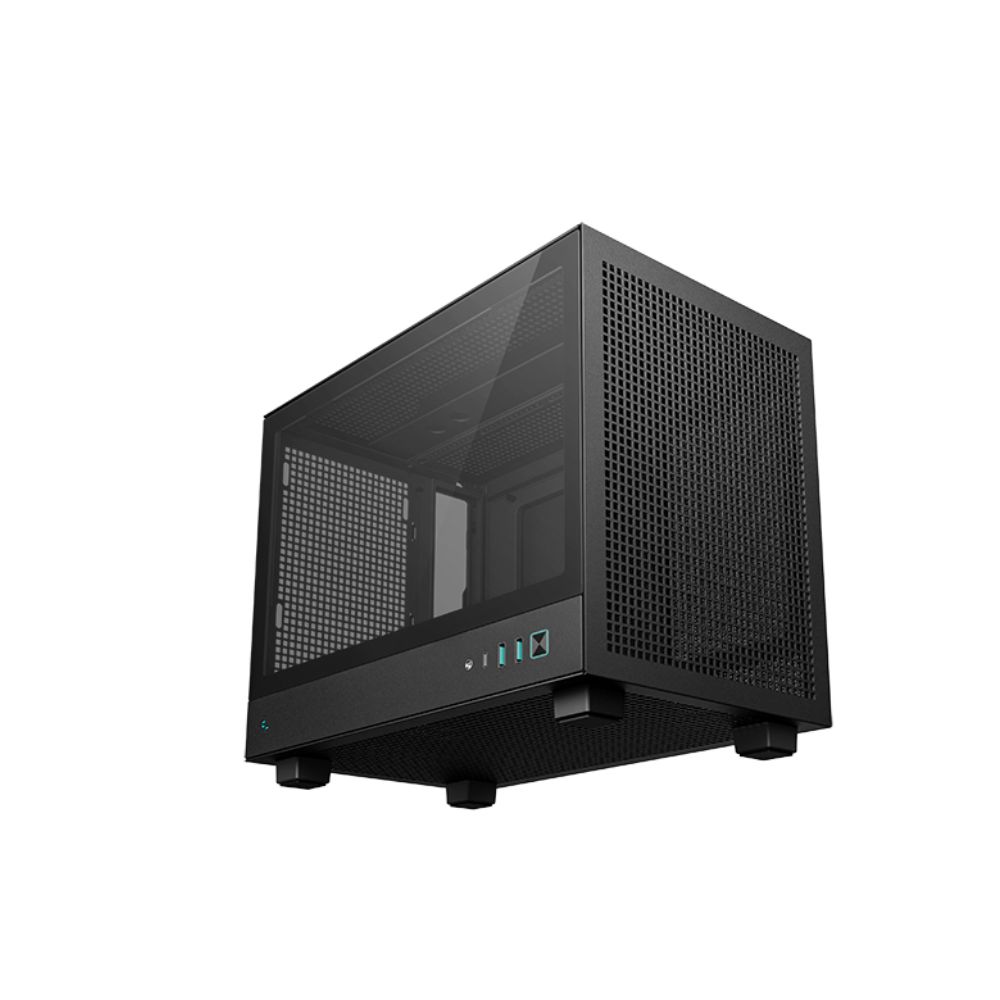

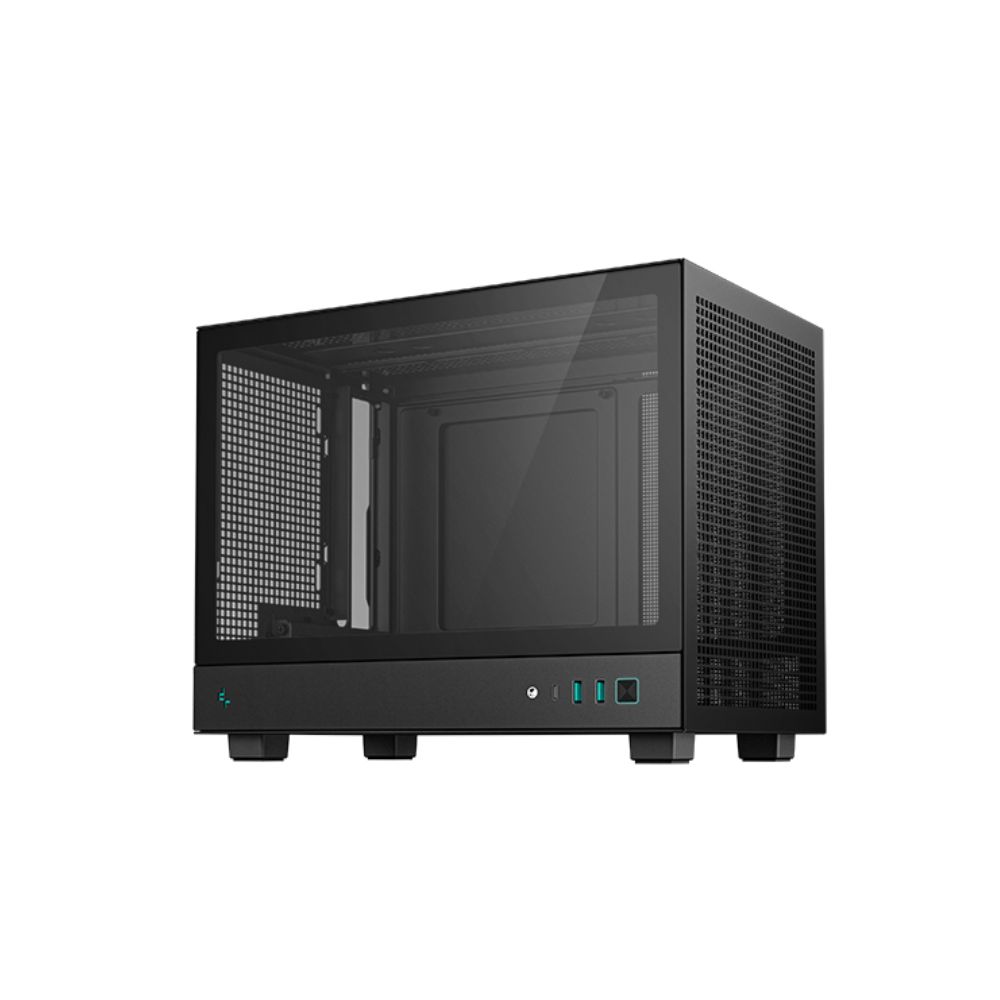

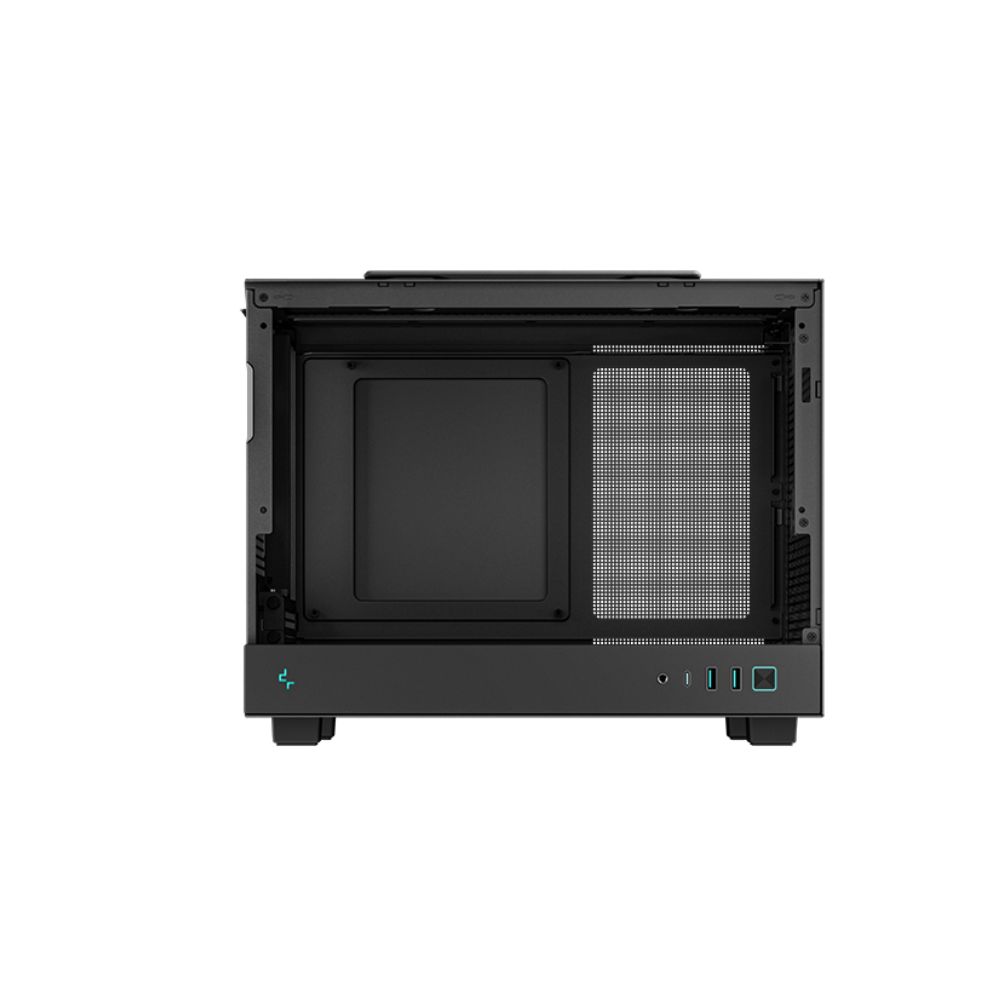

HIGH AIRFLOW PANELS

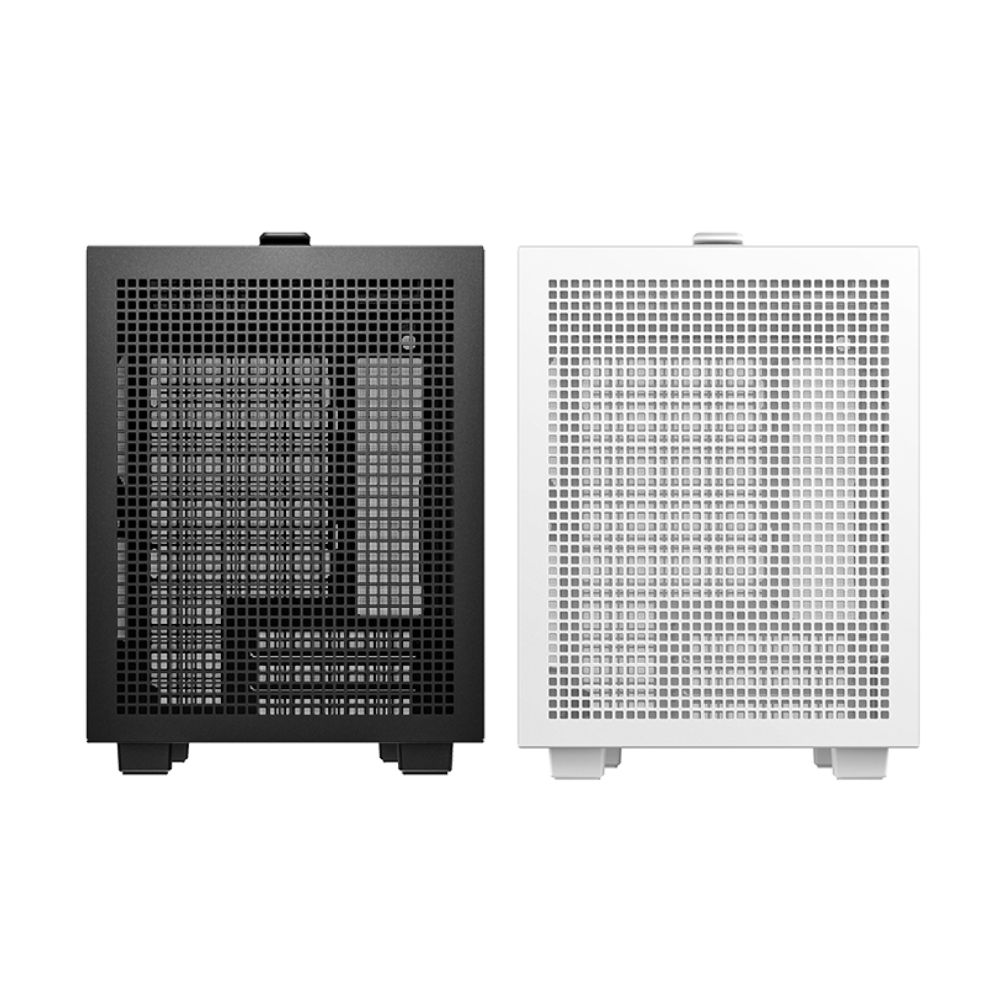

Mesh panels surround the CH160 from numerous sides and create a high-airflow, small-form-factor case like no other.

FULL SIZED AIR COOLING!
Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 can support giant air coolers up to 172mm in height!

NO ADDED GPU LATENCY!
Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!

 FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 can support any of them up to 140mm.

 QUALITY OF LIFE IMPROVEMENTS

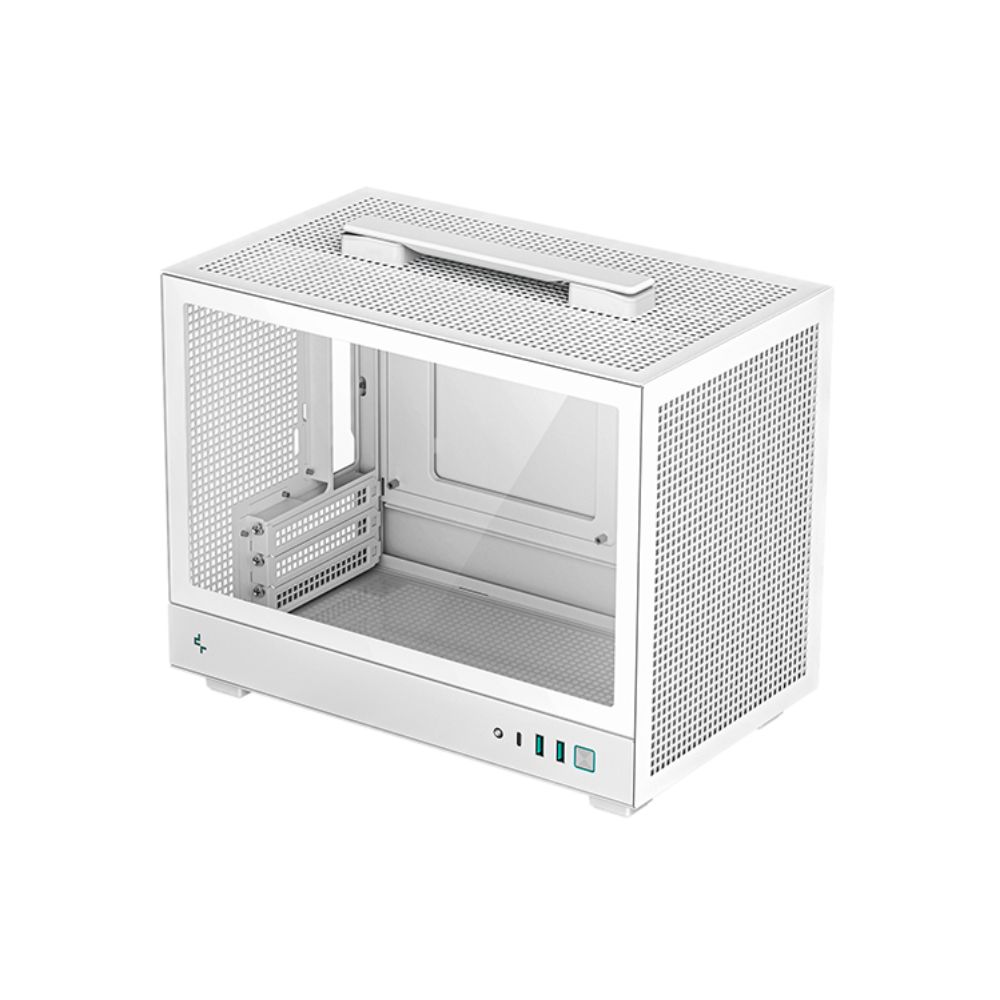

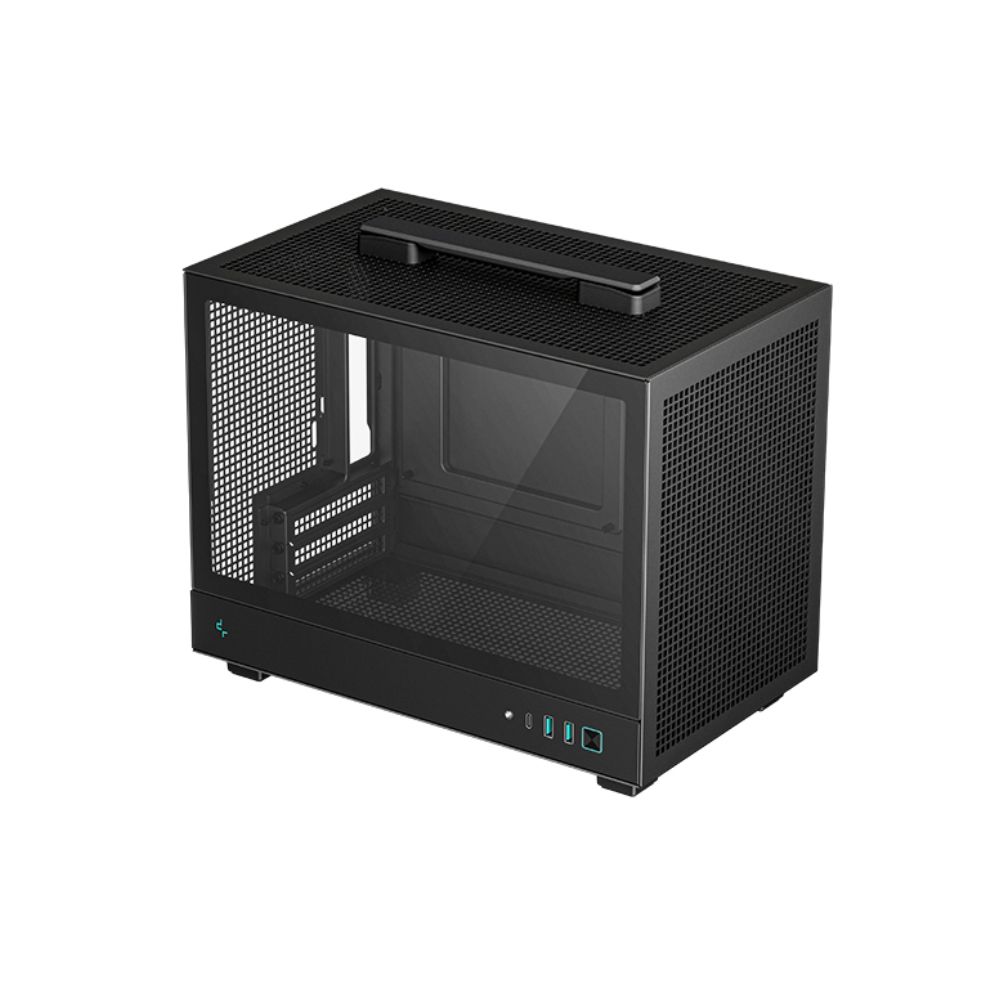

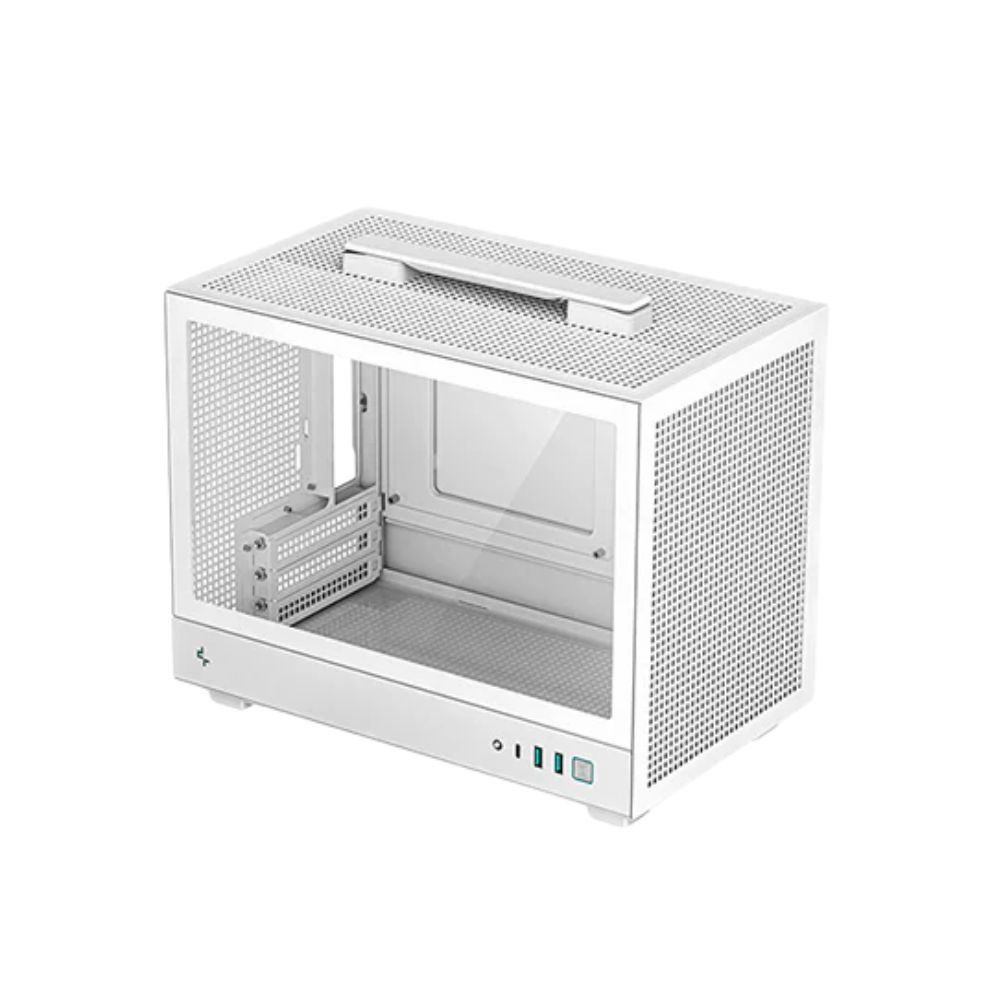

Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 makes everything a little easier.

SPEC OVERVIEW

Product Dimensions: 336×200×283.5mm(L×W×H)

Net Weight: 3.3Kg

Materials: ABS+SPCC+Tempered Glass

Motherboard Support: Mini-ITX

Front I/O Ports:USB3.0×2?Audio×1?Gen2 Type-C×1

3.5" Drive Bays:  1x 2.5 SSD / 3.5 HDD / Front 120 FAN

2.5" Drive Bays:1x 2.5 SSD / 3.5 HDD / Front 120 FAN

Expansion Slots: 3 Slots

Pre-Installed Fans: None

Fan Support: Front 1×120 mm, 2.5 SSD / 3.5 HDD / Front 120 FAN, Top 2×120mm, Rear 1×120mm

Radiator Support: None

CPU Cooler Height Limit: 172mm

GPU Size Limit:  Length SFX/SFX-L: 305mm / ATX: 230mm, Height: 138mm, Width: 65mm (3 Slots)

Power Supply Type: ATX PS2 maximum length: 140mm?/ SFX / SFX-L

EAN: 6933412774457

P/N: R-CH160-BKNGI0-G-1
