Kingston

==========================================================================================
Product Highlight
==========================================================================================
FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
SPECIFICATIONS
CL(IDD)
19 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0oC to +85oC
Storage Temperature
-55oC to +100oC

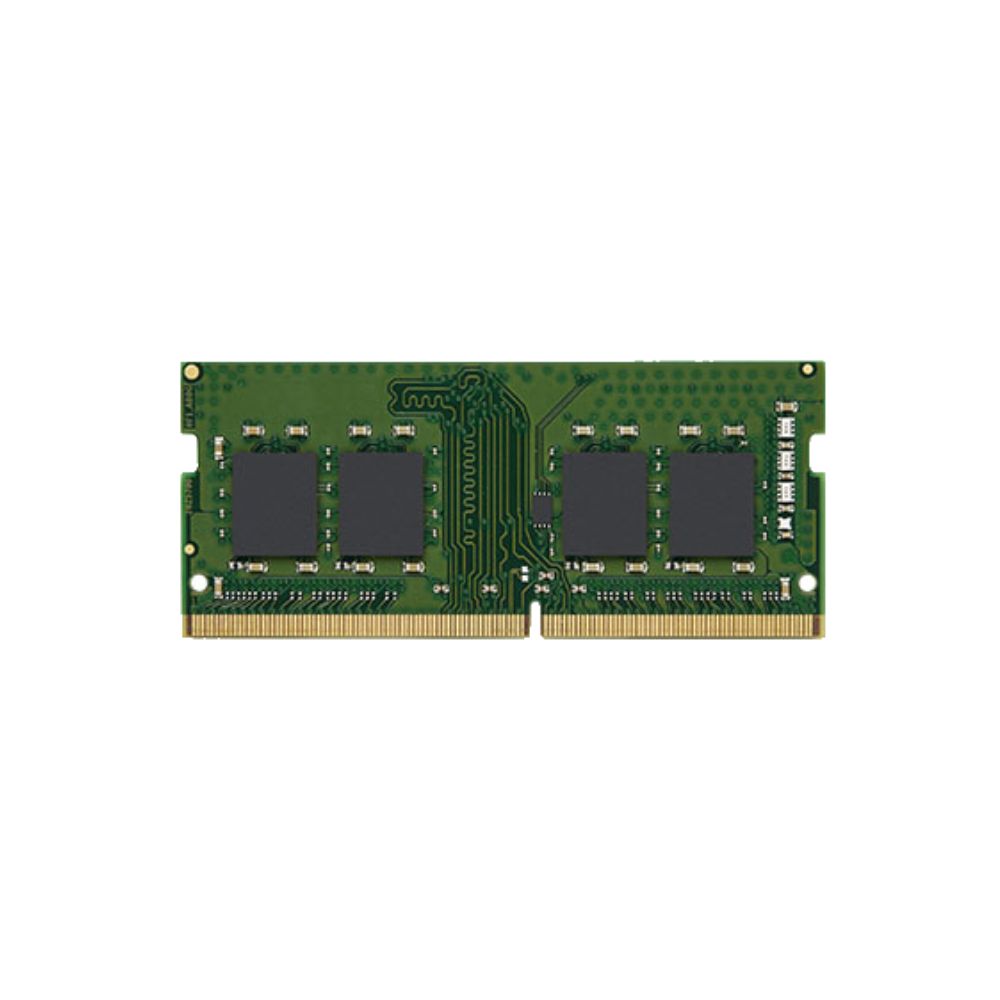

Kingston DDR4 2666MHz Value Ram SODIMM

MYR 268.00

MYR 0.00

Capacity
Or MYR 89.33x 3 with
Gift Wrapping
Add to Wishlist
Remove Wishlist

==========================================================================================
Product Highlight
==========================================================================================
FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
SPECIFICATIONS
CL(IDD)
19 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0oC to +85oC
Storage Temperature
-55oC to +100oC
