Hardware configuration

Product name

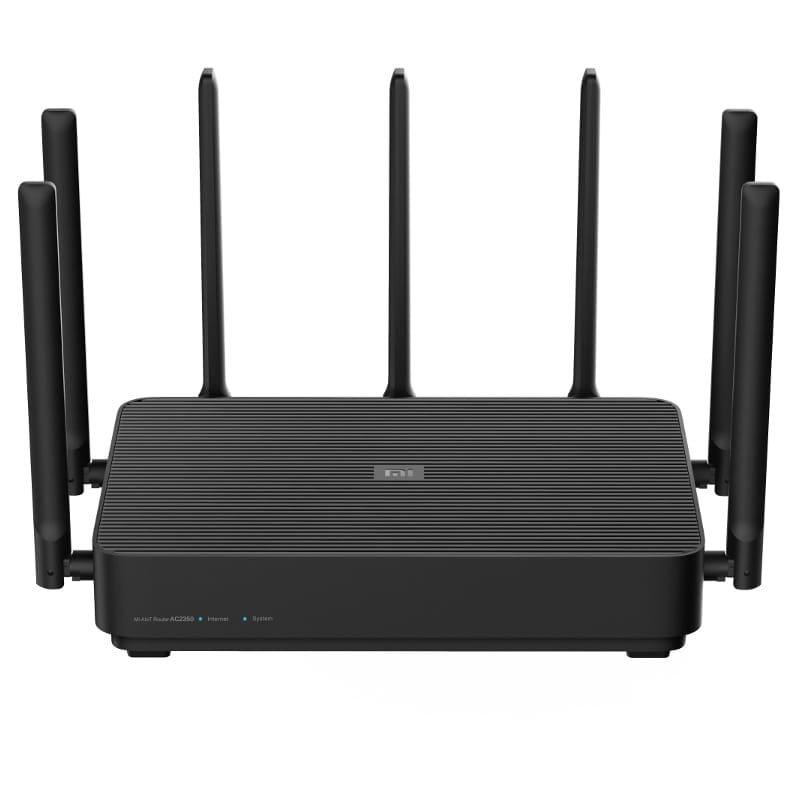

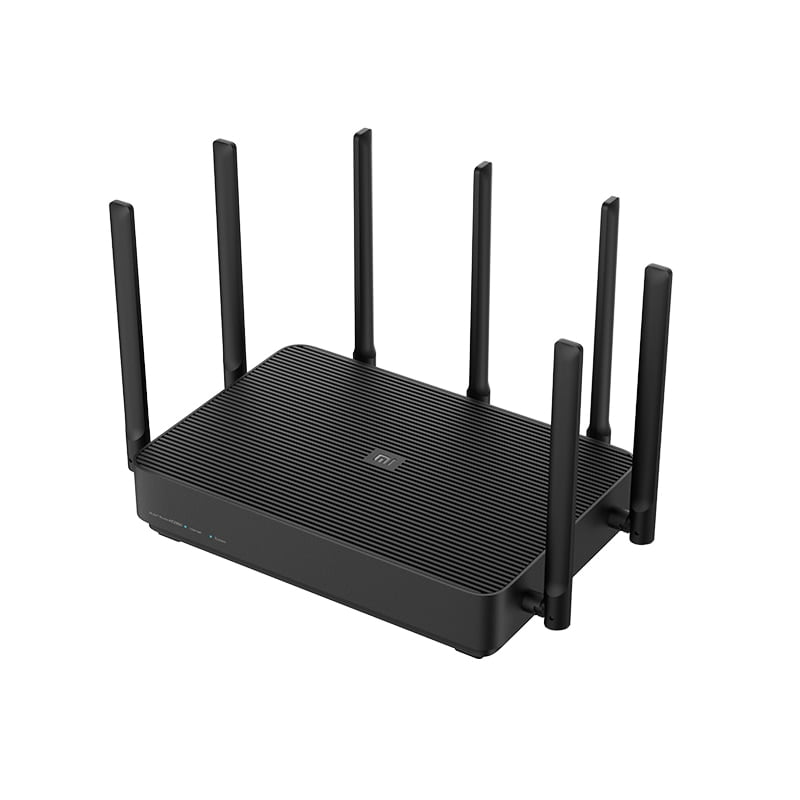

Mi AIoT Router AC2350

Processor

QCA9563

Internal memory

128 MB

2.4 GHz WiFi

3x3 (supports the IEEE 802.11n protocol, maximum speed of 450 Mbps)

5 GHz WiFi

4x4 (supports the IEEE 802.

11ac protocol, maximum

speed of 1733 Mbps)

Antennas

7 external high-gain

antennas + 1 internal

AIoT antenna

System reset buttons

1

Power input port

1

Heat dissipation

Natural heat dissipation

Total ports

1× 10/100/1000 Mbps self-adaptive

WAN port (Auto MDI/MDIX)

3× 10/100/1000 Mbps self-adaptive

LAN ports (Auto MDI/MDIX)

LED indicator lights

2 (System indicator light ×1,

Internet indicator light ×1)

Protocol standards

IEEE 802.11a/b/g/n/ac,

IEEE 802.3/3u/3ab

Wireless specifications

Dual band

2.4 GHz and 5 GHz

Modulation

11b: DSSS: DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (5.5/11 Mbps)

11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps)

11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS23

11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 4 streams)

Software specifications

Operating system

MiWiFi ROM intelligent router operating system based on a highly customized version of OpenWRT

Wireless security

WPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist),

SSID hiding, smart unauthorized access prevention

Management

application

Supports web, Android, and iOS

Product accessories

User manual

1

Product power supply

1× (12V/1.5A)

Working environment

Operating temperature

0°C–40°C

Operating humidity

10%–90% RH (no condensation)

Storage temperature

-40°C–70°C

Storage humidity

5%–90% RH (no condensation)

Package contents

Router ×1

User manual ×1

Power cable ×1

Network cable ×1
