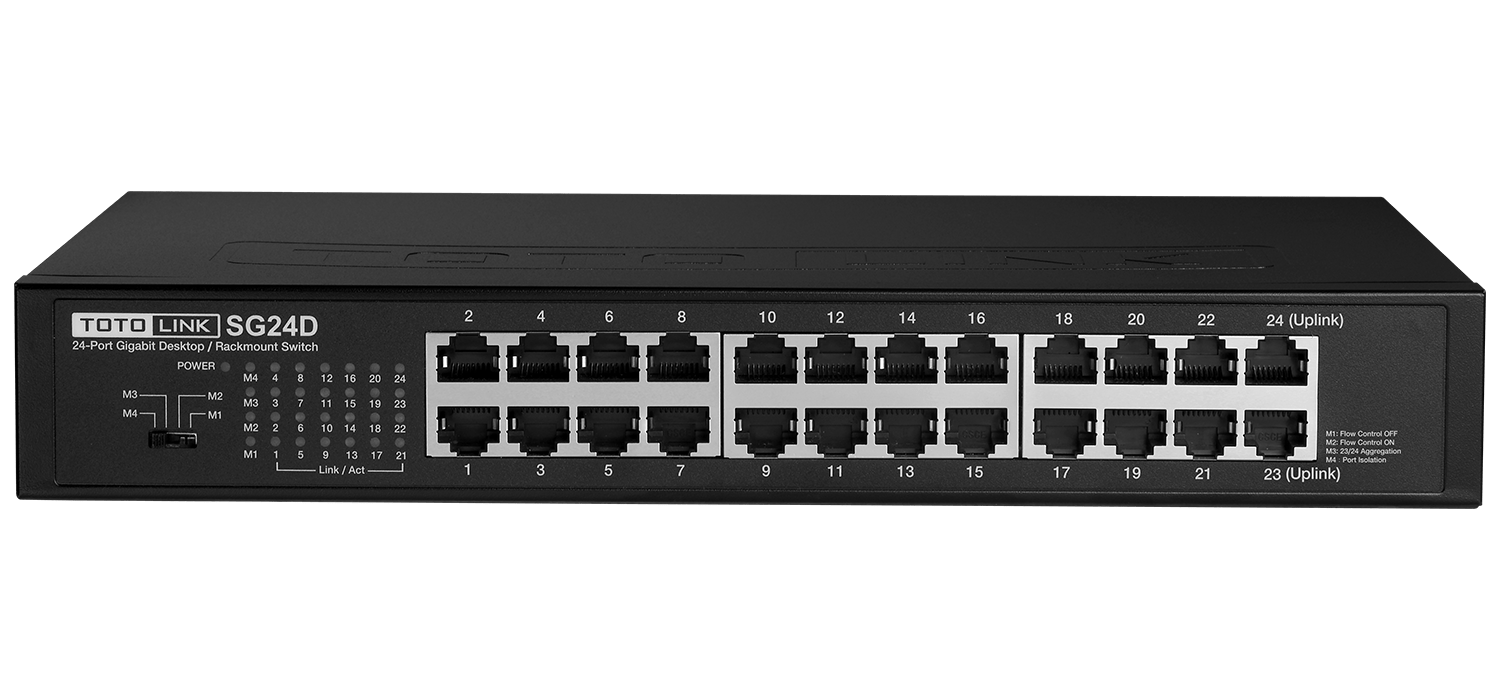

SG24D**

SG24D is a Gigabit Desktop/Rackmount Switch that specially designed for applications like diskless system, network-clone etc.

With 24 Gigabit RJ-45 ports, SG24D allows large file transferring at high speed.

All ports supports wire-speed forwarding, auto MDI/MDIX and Auto Negotiation, no need to worry about cable type, simply plug and play.

Moreover, one slide switch is provided for four different working modes switching, making SG24D a high performance solution for your business network.

Features**

-24 10/100/1000Mbps auto-negotiated RJ45 ports.

-Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

-48Gbps Switching Capacity.

-Auto-MDI/MDIX eliminates the need for crossover cables.

-Store and forward Switching scheme.

-Supports Jumbo Frame (10KByte).

-Supports IGMP Snooping.

-Desktop and Rack-mountable design.

General**

Standards

-IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Interface

- 24*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

Power Supply

- AC 100V~240V, 50/60Hz

LED Indicators

- 1* Power, Link/Act (1~24), M1~M4

Dimensions(L x W x H)

- 11.6 x 7.1 x 1.7in. (294 x 180 x 44mm)

MAC Address Learning

- Auto-learning, auto update

MAC Address Table

- 8K

Backup Bandwidth

- 48Gbps

Network Media

- 10BASE-T: UTP Cat 3, 4, 5 cable

- 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable

Four Working Modes

- M1: Flow Control OFF

- M2: Flow Control ON

- M3: 23/24 Ports Aggregation based on MAC sources

- M4: Port Isolation

Frame Filtering

- 10Mbps: 14,880pps

- 100Mbps: 148,800pps

- 1000Mbps: 1,488,000pps

Transfer Method

- Store-and-Forward

 Others

Package Contents

- SG24D Desktop Switch

- Power Adapter

- Quick Installation Guide

Environment

- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 5%~95% non-condensing

- Storage Humidity: 5%~95% non-condensing
