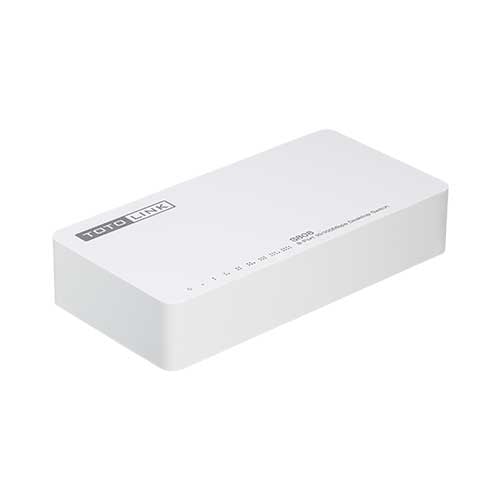

S808G**

S808G is a Gigabit Desktop Switch that enables

you to upgrade your network to gigabit Ethernet.

With full gigabit ports and compact design,

S808G not only increases the speed of

your network server, but also make Gigabit to

the desktop a reality.

Generally, S808G is a high performance solution for

your home or office network.

Features**

8 10/100/1000Mbps auto-negotiated RJ45 ports

Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

4K entry MAC address table and automatic address learning

Auto-MDI/MDIX eliminates the need for crossover cables

Store- and-Forward Switching scheme

Performs non-blocking full wired speed

Supports Jumbo Frame (9KByte)

Supports IGMP Snooping

Supports Giga Lite to improve transfer rate for 4-wire UTP gigabit network

General**

Standards

- IEEE 802.3,

- IEEE 802.3u,

- IEEE 802.3ab,

- IEEE 802.3x

Interface

- 8*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

Power Supply

- DC 9V/0.5A

LED- 1* Power, 8*LANs

Dimensions(L x W x H) -  5.2 x 3.0 x 1.0 in. (132 x 75 x 25mm)

MAC Address Learning- Auto-learning, auto-aging

MAC Address Table

- 4K

Network Media

- 10BASE-T: UTP Cat 3, 4, 5 cable

- 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable

Backup Bandwidth

- 16Gbps

Transmission Method- Store-and-forward

 Others

Package Contents

- S808G Desktop Switch *1

- Power Adapter

- Quick Installation Guide *1

Environment

- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 5%~95% non-condensing

- Storage Humidity: 5%~95% non-condensing
