More Information

P/N

PS-TPD-0750FNFAGx-W

WATTS

750W

RGB FAN

No

MODEL

TTP-750AH3FCG

MAX. OUTPUT CAPACITY

750W

PEAK OUTPUT CAPACITY

900W

COLOR

White

DIMENSION ( W / H / D )

150mm(W) x 86mm(H) x 160mm(D)

PFC (POWER FACTOR CORRECTION)

Active PFC

POWER GOOD SIGNAL

100-500 msec

HOLD UP TIME

> 16msec at 100% of full load

INPUT CURRENT

10A

INPUT FREQUENCY RANGE

47Hz - 63Hz

INPUT VOLTAGE

100V – 240V~

OPERATING TEMPERATURE

0°C to + 50°C

OPERATING HUMIDITY

20% to 90%,non-condensing

STORAGE TEMPERATURE

-20°C to + 70°C

STORAGE HUMIDITY

5% to 95%, non-condensing

COOLING SYSTEM

14cm hydraulic bearing fan

EFFICIENCY

Meet 80 PLUS®Gold at 115Vac input.

MTBF

120,000 hrs minimum

SAFETY APPROVAL

CE/cTUVus/TÜV/FCC/BSMI/CCC/EAC

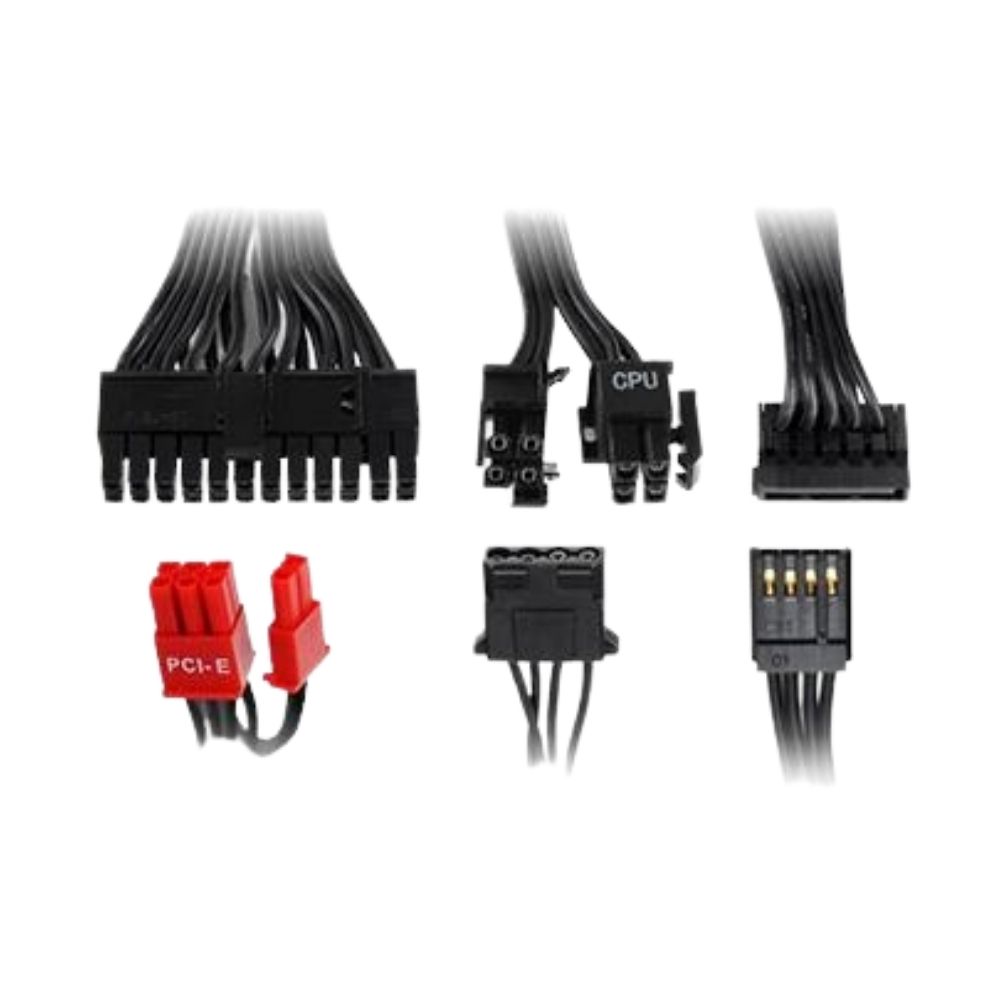

PCI-E 6+2PIN

4

PROTECTION

OCP, OVP, UVP, OPP, SCP, OTP
