3 YEARS ONE TO ONE SWAP WARRANTY

Gear Up with Gigabit Router for Unparalleled 5 GHz Network Performance

U12 fully leverages the bandwidth of a gigabit router to reach a wireless download speed of as high as 580Mbps! More specifically, it takes merely 28 seconds to download a 2 GB movie, offering a thrilling cyber experience.

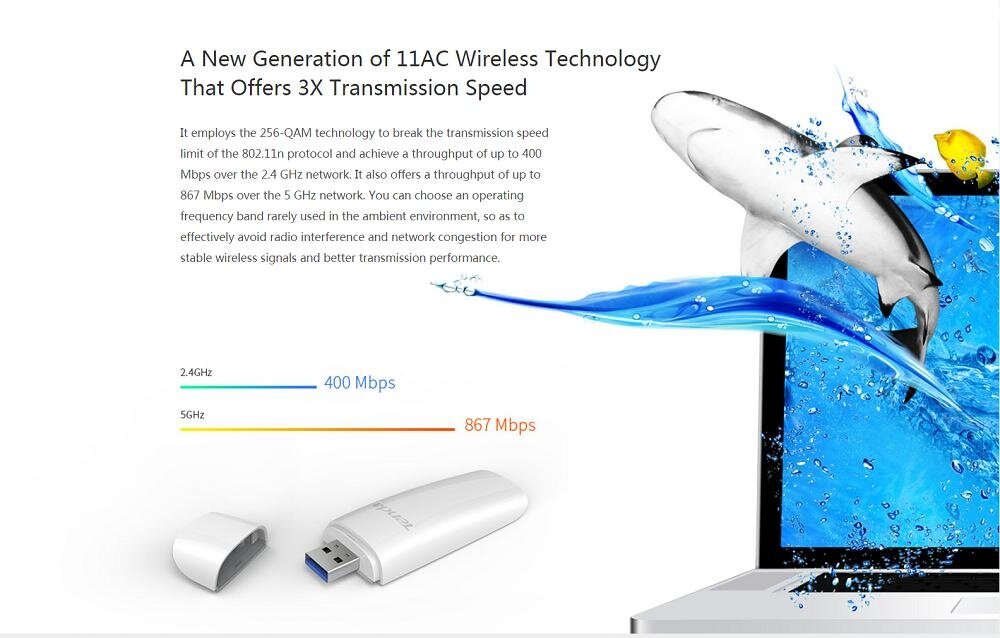

A New Generation of 11AC Wireless Technology

That Offers 3X Transmission Speed

It employs the 256-QAM technology to break the transmission speed limit of the 802.11n protocol and achieve a throughput of up to 400 Mbps over the 2.4 GHz network. It also offers a throughput of up to 867 Mbps over the 5 GHz network. You can choose an operating frequency band rarely used in the ambient environment, so as to effectively avoid radio interference and network congestion for more stable wireless signals and better transmission performance.

Six Technological Innovations to Support 4K UHD Experience

1. Four electrically separated PCB layers for better anti-interference capabilities of components2. High-precision linear power supply to further stabilize operations3. Walsin RFD duplexer to improve signal utilization4. TDK common mode filter to suppress signal interference from the USB port5. Stable USB 3.0 transmission, 10 times faster than USB 2.0 transmission6. High-gain extension cable (copper core shielded with multiple layers of aluminum foil) to allow you to flexibly adjust the location of the wireless network adapter for optimum performance

Interface

USB3.0

Button

WPS button

LED

1* System LED

Dimension

93.8mm*30.2mm*13.4mm(W X D X H)

Antenna

PIFA Antenna

Wireless Standards

IEEE 802.11ac, IEEE 802.11a,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

5GHz2.4GHz

Signal Rate

11n:Up to 400Mbps(dynamic)11ac:Up to 867Mbps(dynamic)

Transmit Power

<20dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK,WPA/WPA2,WEP,WPS

Modulation Technology

DBPSK, DQPSK, CCK, 16-QAM, 64-QAM, 256-QAM

Certification

CE, FCC, RoHS,EAC

System Requirement

windows10(32/64bits),Windows 8.1(32/64bits), Windows 8(32/64bits),Windows 7(32/64bits), Windows XP(32/64bits), Mac OS X 10.6~10.12, Linux

Package Content

Wireless Dual Band USB Adapter * 1USB Extension Cable * 1CD Resource * 1Install Guide * 1

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
