Processor: Intel Core i7-12700H, 14C (6P + 8E) / 20T,
P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB

Graphics: NVIDIA GeForce RTX 3050 Ti 4GB GDDR6, Boost
Clock 1695MHz, TGP 95W

Chipset: Intel SoC Platform

Memory: 1x 8GB SO-DIMM DDR5-4800

Memory Slots: Two DDR5 SO-DIMM slots, dual-channel
capable

Max Memory:

Up to 16GB DDR5-4800 offering

Storage

512GB SSD M.2 2280 PCIe 4.0x4 NVMe

Storage Support:

Up to two drives, 2x M.2 SSD

• M.2 2280 SSD up to 1TB

• M.2 2242 SSD up to 512GB

Storage Slot:

Two M.2 slots

• Two M.2 2280 PCIe Gen 4x4 slots, support M.2 2242/2280
SSD

Card Reader: None

Optical: None

Audio Chip: High Definition (HD) Audio, Realtek ALC3287
codec

Speakers: Stereo speakers, 2W x2, Nahimic Audio

Camera: FHD 1080p with E-camera Shutter

Microphone: 2x, Array

Battery : Integrated
60Wh

Max Battery Life: MobileMark 2018: 5.42 hr (60Wh)

Power Adapter: 230W Slim Tip (3-pin)

DESIGN

Display: 15.6" FHD (1920x1080) IPS 300nits
Anti-glare, 165Hz, 100% sRGB, Dolby Vision, G-Sync, DC dimmer

Touchscreen: None

Keyboard: 4-Zone RGB Backlit, English

Case Color: Storm Grey

Surface Treatment: Anodizing

Case Material: Aluminium (Top), PC + ABS (Bottom)

Dimensions (WxDxH): 358.8 x 262.35 x 19.99 mm (14.13 x
10.33 x 0.79 inches)

Weight: Around 2.35 kg (5.18 lbs)

SOFTWARE

Operating System: Windows 11 Home 64, Simplified Chinese
/ English

Bundled Software

Office Trial

CONNECTIVITY

Onboard Ethernet: 100/1000M

WLAN + Bluetooth: Wi-Fi 6 11ax, 2x2 + BT5.1

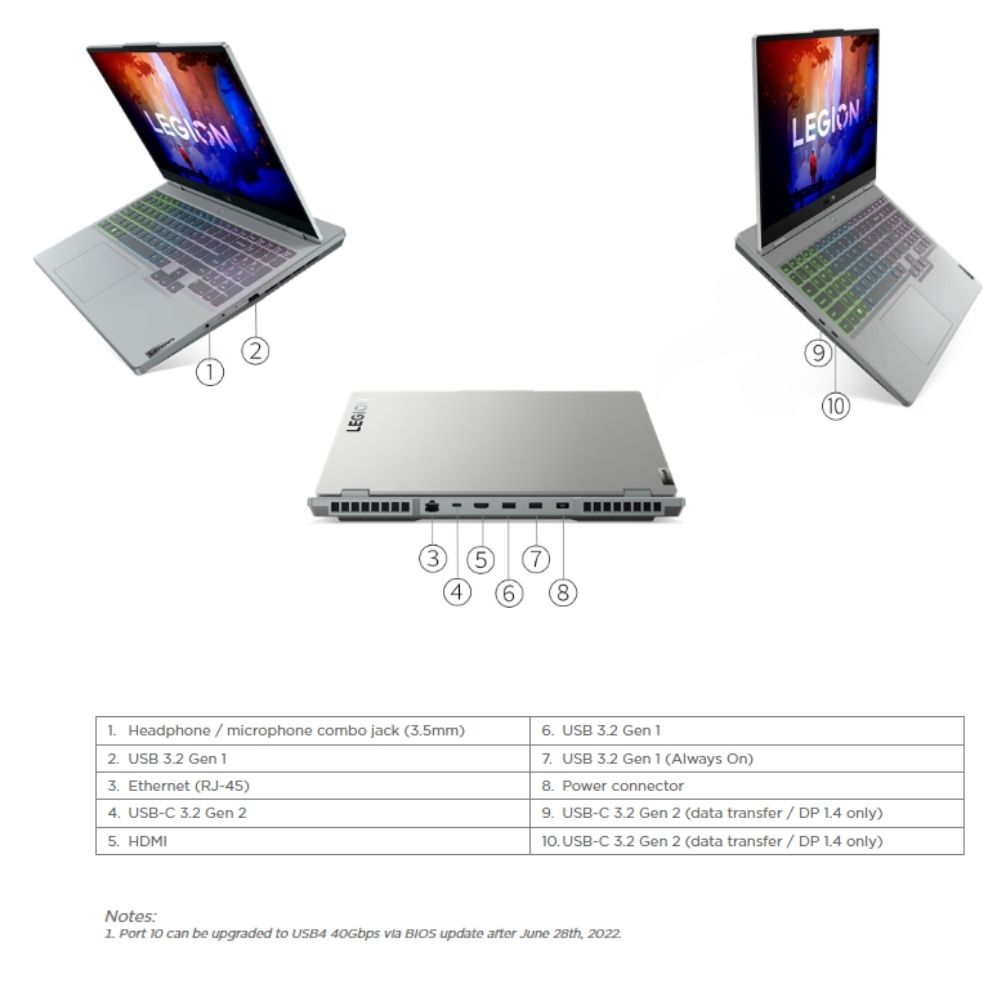

Standard Ports:

2x USB 3.2 Gen 1

1x USB 3.2 Gen 1 (Always On)

1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort
1.4)

1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery
135W and DisplayPort 1.4)

1x Thunderbolt 4 / USB4 40Gbps (support data transfer and
DisplayPort 1.4)

1x HDMI, up to 8K/60Hz

1x Ethernet (RJ-45)

1x Headphone / microphone combo jack (3.5mm)

1x Power connector

SECURITY & PRIVACY

Security Chip: Firmware TPM 2.0

Fingerprint Reader: None

Other Security: E-Camera shutter

SERVICE

Base Warranty: 1-year, Depot

Included Upgrade: 2Y Legion Ultimate Support -IPMAIN
(ESS) (5WS1C87093)

ACCESSORIES

Bundled Accessories: None

CERTIFICATIONS

Green Certifications

ErP Lot 3

RoHS compliant
